Blackguard Road
5303.0 m · net rise 259.7 m · total ascent 286.7 m · overall 4.9% · evidence quality B (good) · Waterford · Maine · share
Shape: sustained — 33% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 191 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the state road inventory, OpenStreetMap and the point-cloud evidence for a graded road bed, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.

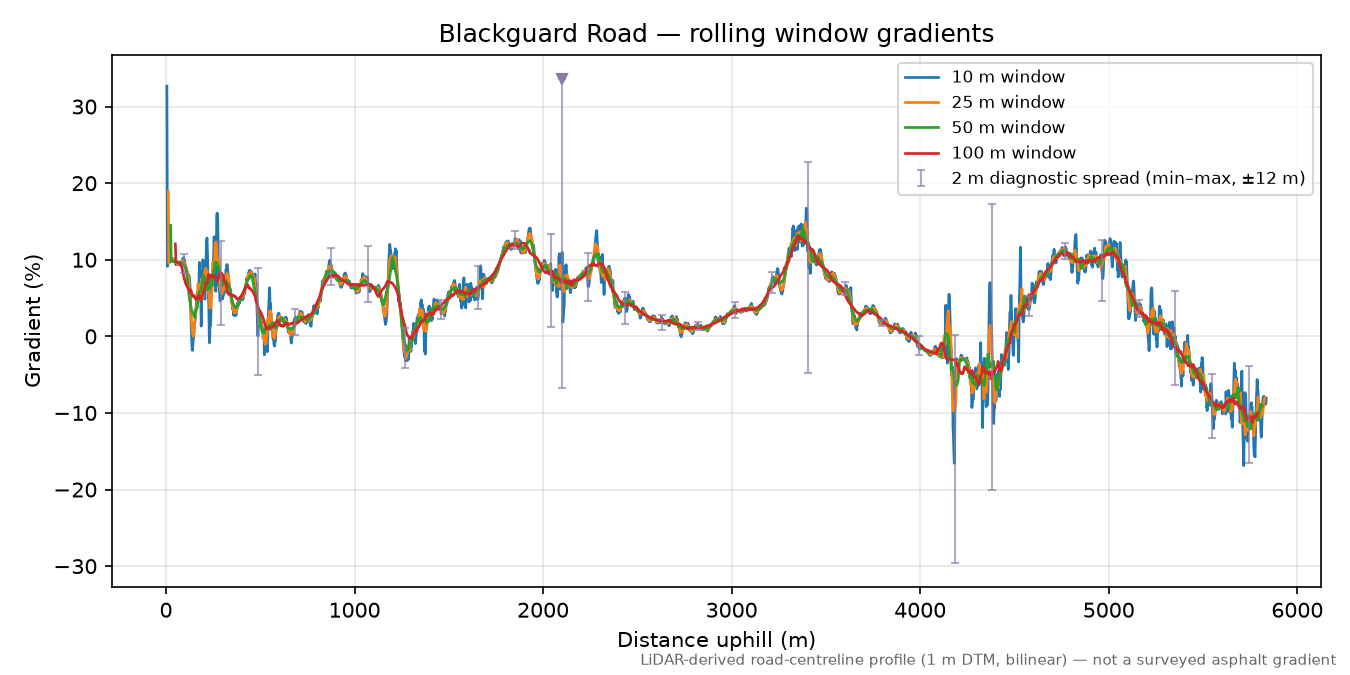

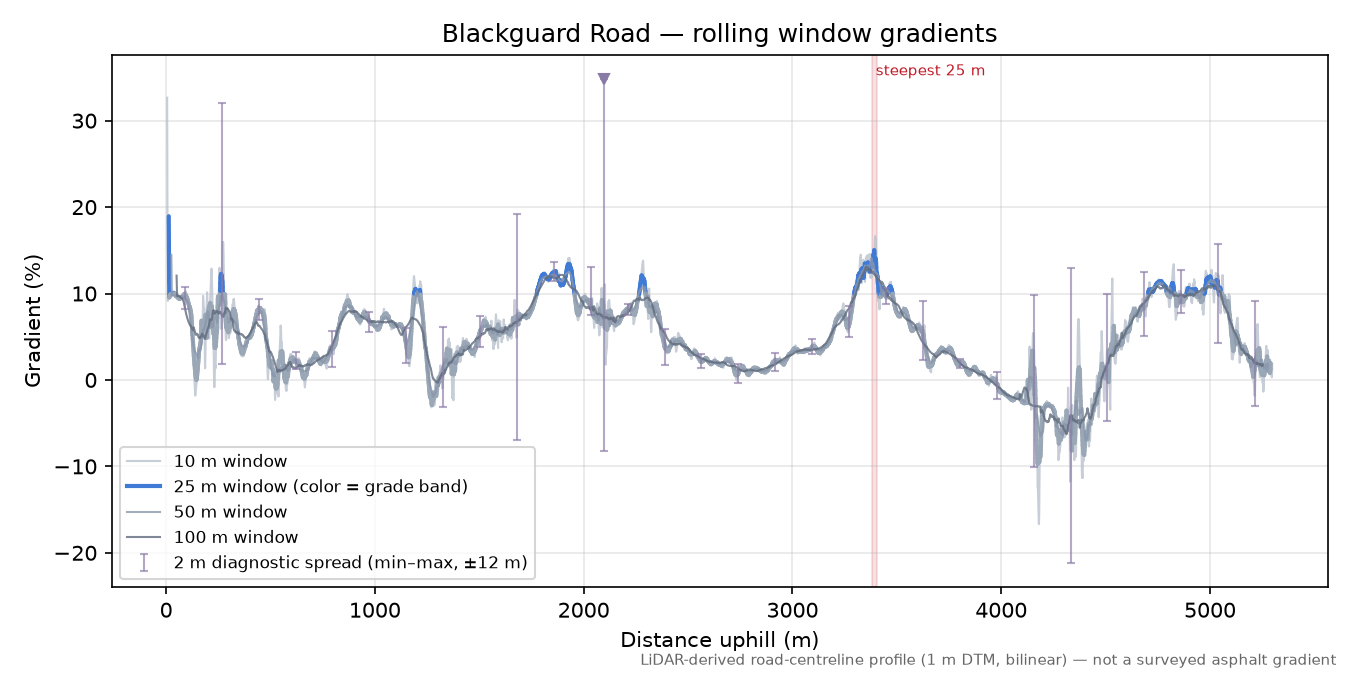

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈35% | 2097–2099 m | under overhead cover terrain reads 103.6% at 0–2 m across a structure — excluded |
| 3 m (diagnostic) | ≈30% | 270–273 m | under overhead cover terrain reads 88.2% at 0–3 m across a structure — excluded |
| 5 m | ≈24% | 269–274 m | under overhead cover terrain reads 56.2% at 0–5 m across a structure — excluded |
| 10 m | ≈17% | 3391–3401 m | under overhead cover terrain reads 32.7% at 0–10 m across a structure — excluded |
| 20 m | ≈15.4% | 3380–3400 m | under overhead cover terrain reads 21.2% at 0–20 m across a structure — excluded |
| 25 m | ≈15.0% | 3379–3404 m | under overhead cover terrain reads 18.9% at 0–25 m across a structure — excluded |
| 50 m | ≈14.1% | 3354–3404 m | under overhead cover terrain reads 14.5% at 0–50 m across a structure — excluded |
| 100 m | 13.1% | 3304–3404 m |
may start earlier Extent detection suggests reviewing where this climb starts/ends.

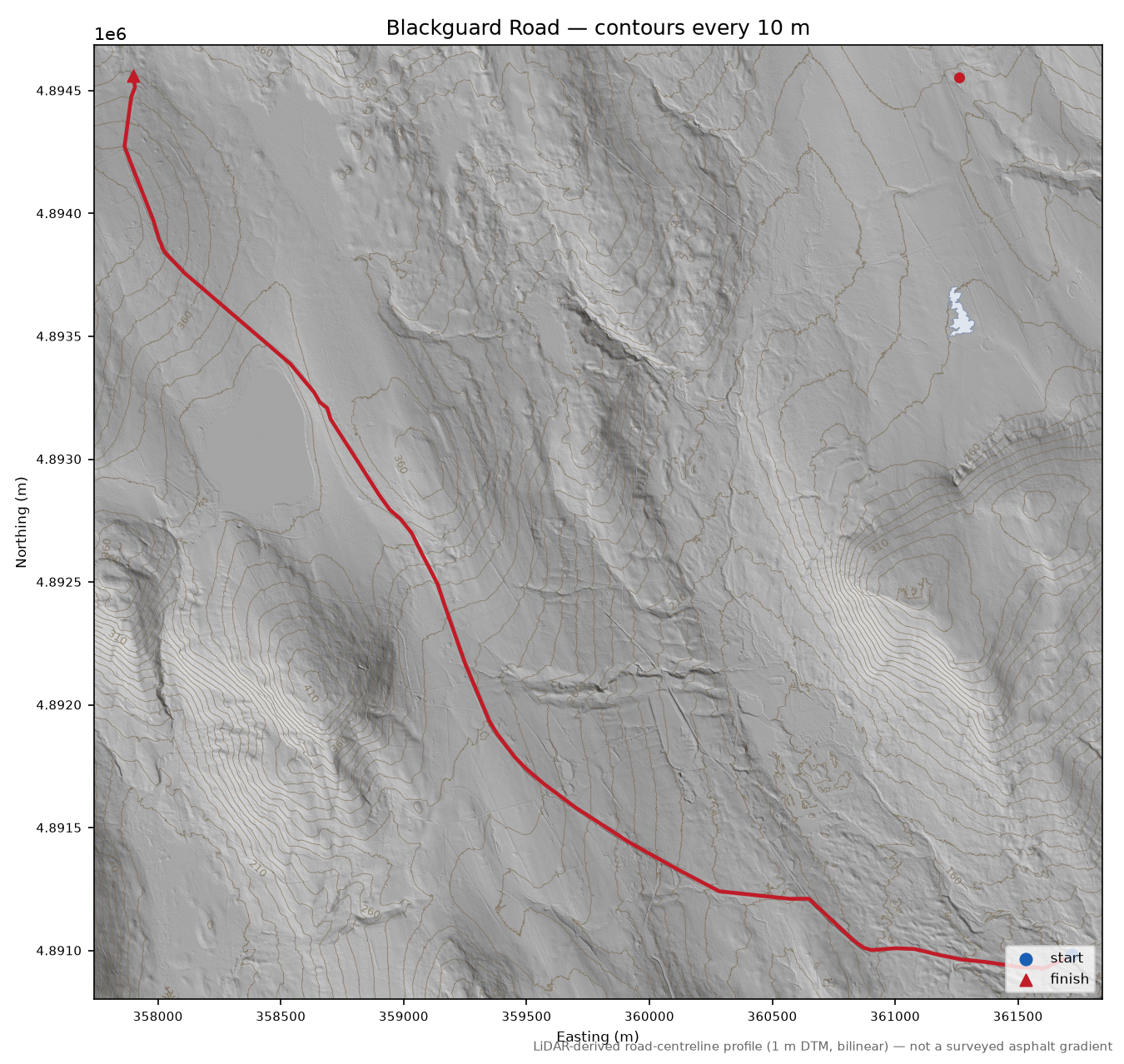

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: mixed (49% unpaved), according to each state's road inventory: .
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb

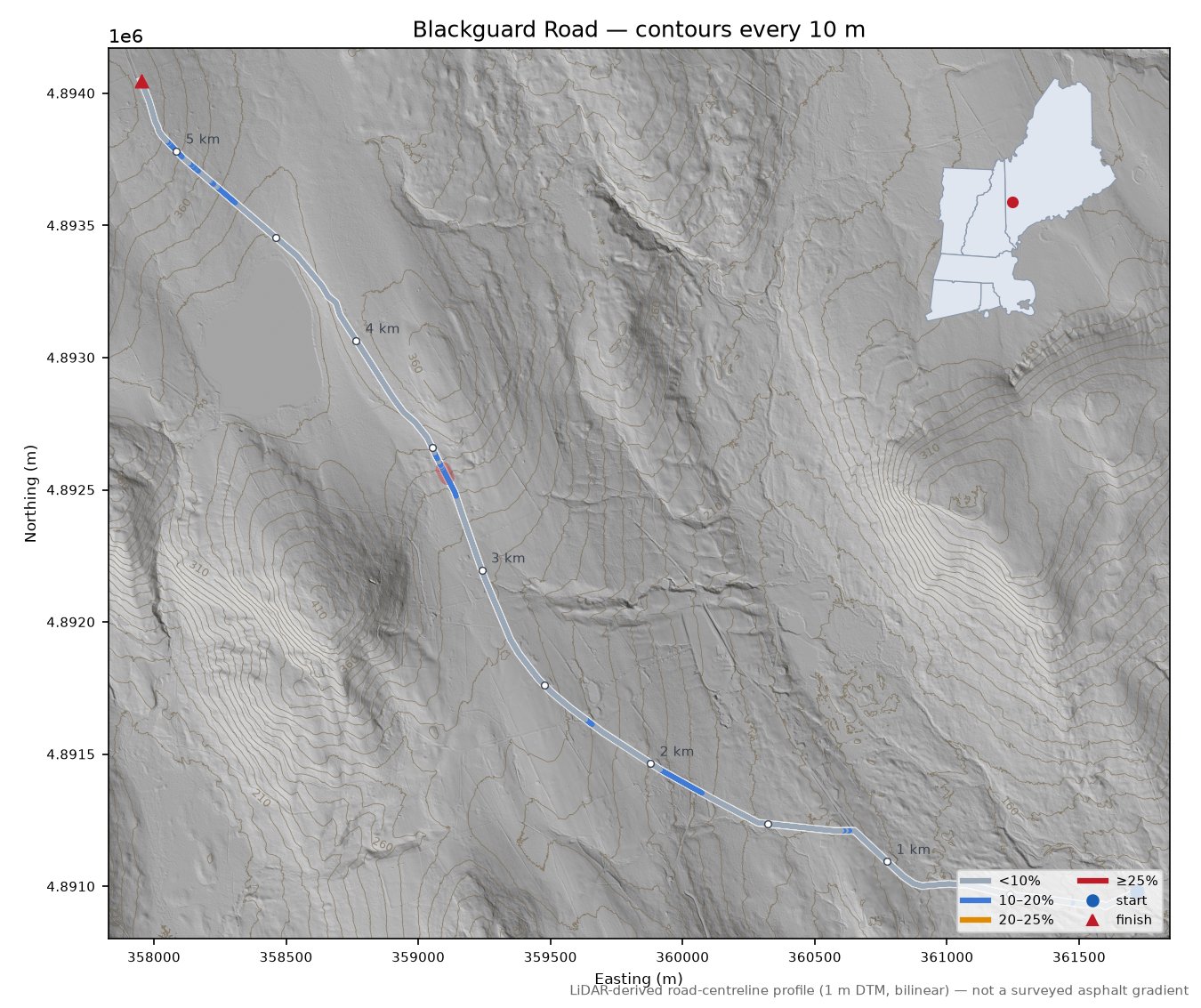

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery USGS (public domain)

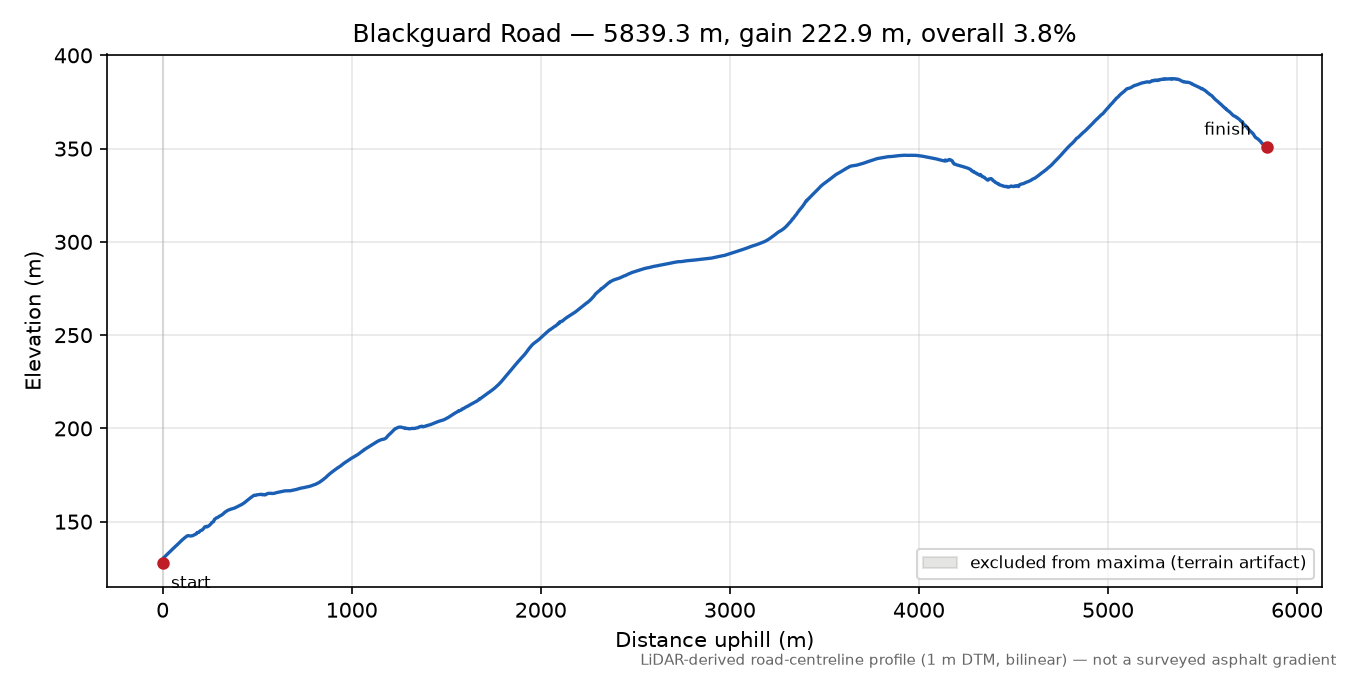

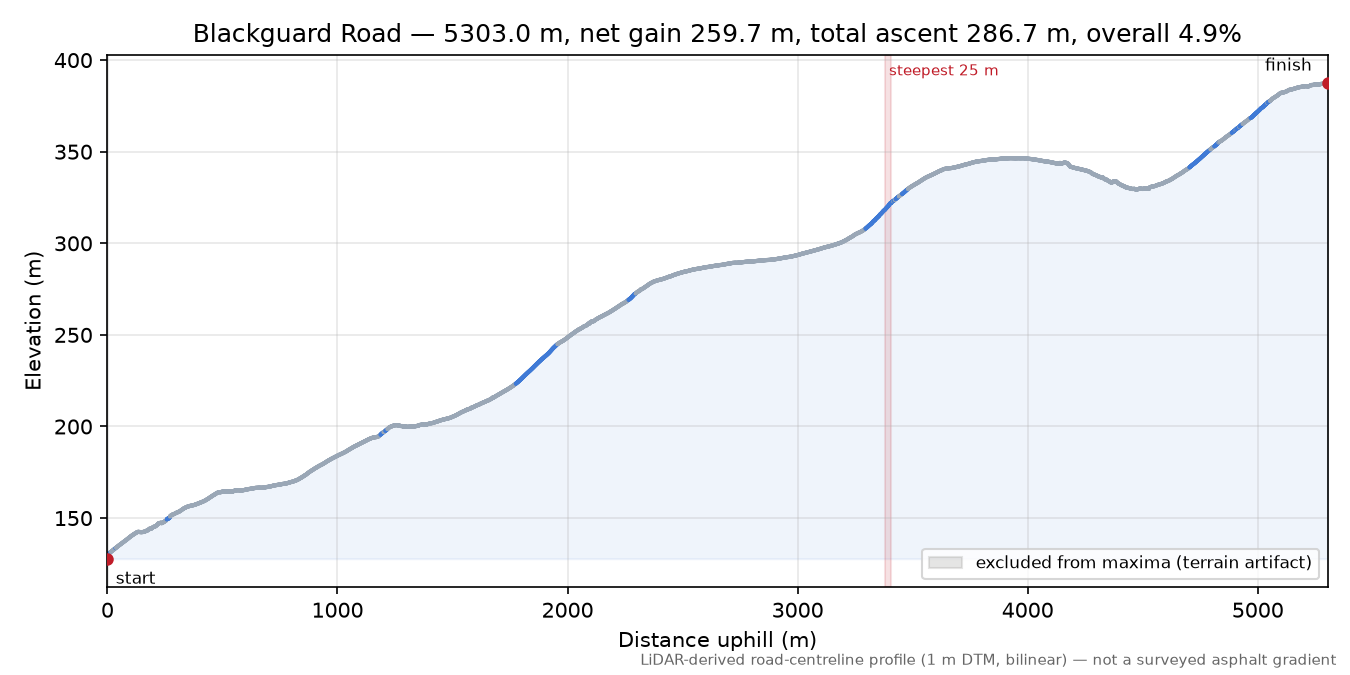

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | USGS 3DEP (The National Map) — USGS 3DEP 1 m DEM, ME_WesternMtns_B24 (collected 2024) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:26919; sampled every 1.0 m, bilinear interpolation |
| Tiles | x35y490, x36y490 |
| Road centreline | OpenStreetMap (local PBF extract), snapshot 2026-08-21T20:21:11Z |
| Quality status | evidence quality B; caveated windows: structure excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run summit-260905-summit-usa-me-maine-2026-08-22, calculated 2026-09-05 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:26919",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/usa/me/USGS_1M_19_x35y490_ME_WesternMtns_B24.tif",
"data/cache/usa/me/USGS_1M_19_x36y490_ME_WesternMtns_B24.tif"
],
"calculated_at": "2026-09-05T06:00:49+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/maine-2026-08-22.osm.pbf",
"osm_snapshot": "2026-08-21T20:21:11Z",
"run_id": "summit-260905-summit-usa-me-maine-2026-08-22",
"elevation_provider": "USGS 3DEP (The National Map)",
"elevation_licence": "Public domain \u2014 USGS 3DEP 1 m DEM, courtesy of the U.S. Geological Survey",
"elevation_dataset": "USGS 3DEP 1 m DEM, ME_WesternMtns_B24 (collected 2024)",
"elevation_tile_ids": [
"x35y490",
"x36y490"
],
"route_summit_trim_m": 536.0,
"route_summit_trim_loss_m": 36.6,
"climb_origin": "discovered",
"canopy_check": "unavailable \u2014 EPT corridor failed: NH_Umbagog_2016: no corridor points fetched; USGS_LPC_ME_NRCS_Lot4_2013_LAS_2015: no corridor points fetched; ME_SouthCentral_1_B22: no corridor points fetched",
"door_status": "below every adoption door at fold time \u2014 kept pending: hunt wave 1 page admitted on the coarse inventory door (adopt_hunt_wave); the summit trim can only raise its numbers \u2014 LiDAR-door standing is a separate ruling (listed in below-door.csv)",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
