150.0 m · net rise 37.5 m · overall 25.0% · evidence quality A (high) · Los Angeles · California
Shape: sustained — 27% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 150 m.
Not yet matched against documented climbs — the measurement stands on its own.

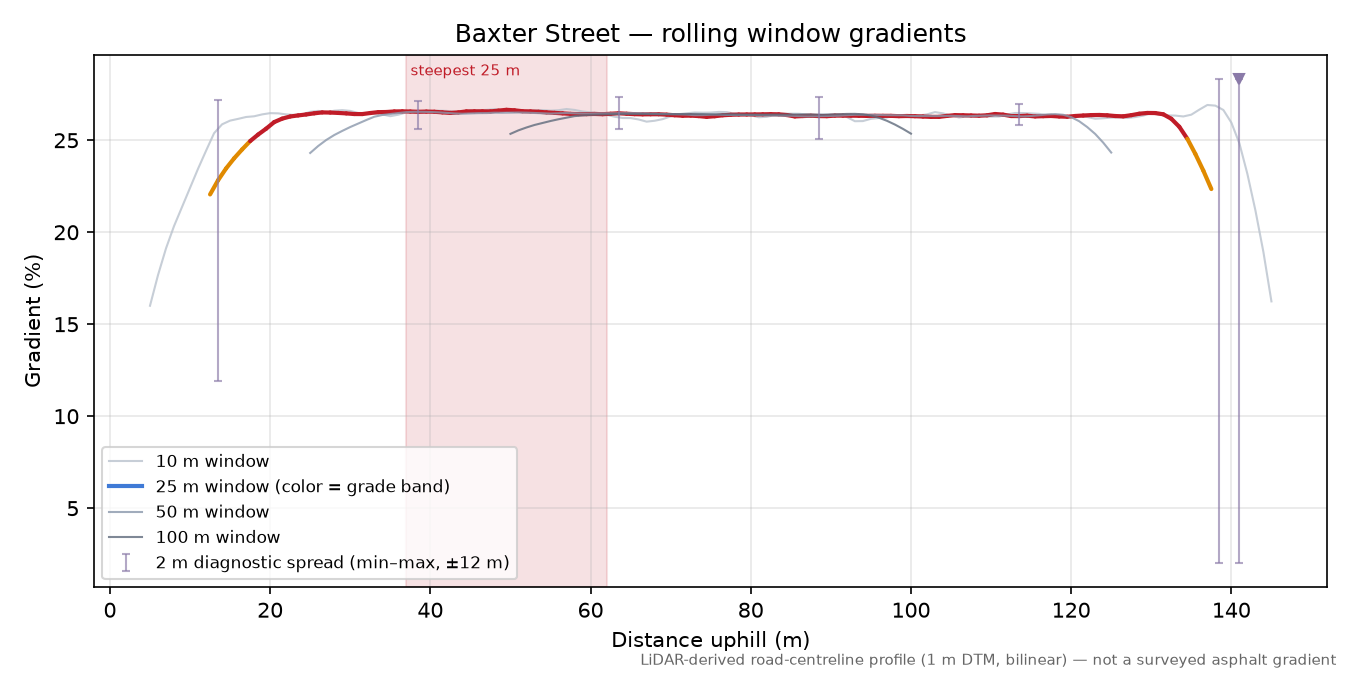

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | 28% | 140–142 m | |
| 3 m (diagnostic) | 28% | 139–142 m | |
| 5 m | 27% | 138–143 m | |
| 10 m | 27% | 132–142 m | |
| 20 m | 26.7% | 42–62 m | |
| 25 m | 26.7% | 37–62 m | |
| 50 m | 26.5% | 13–63 m | |
| 100 m | 26.4% | 43–143 m |
may start earliermay continue beyond end Extent detection suggests reviewing where this climb starts/ends.

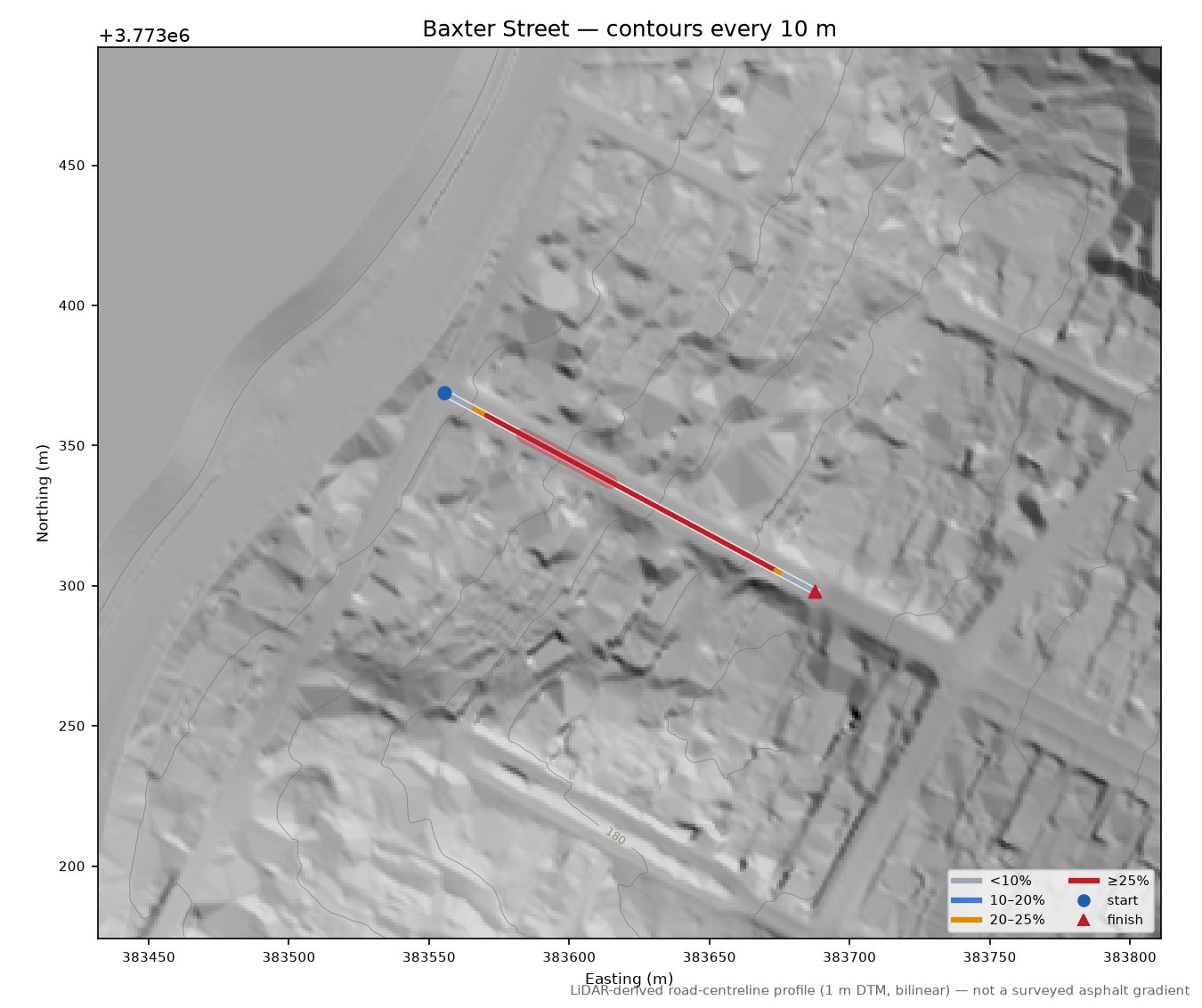

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: each state's road inventory records no surface for this road; the map may tell you more.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery USGS (public domain)

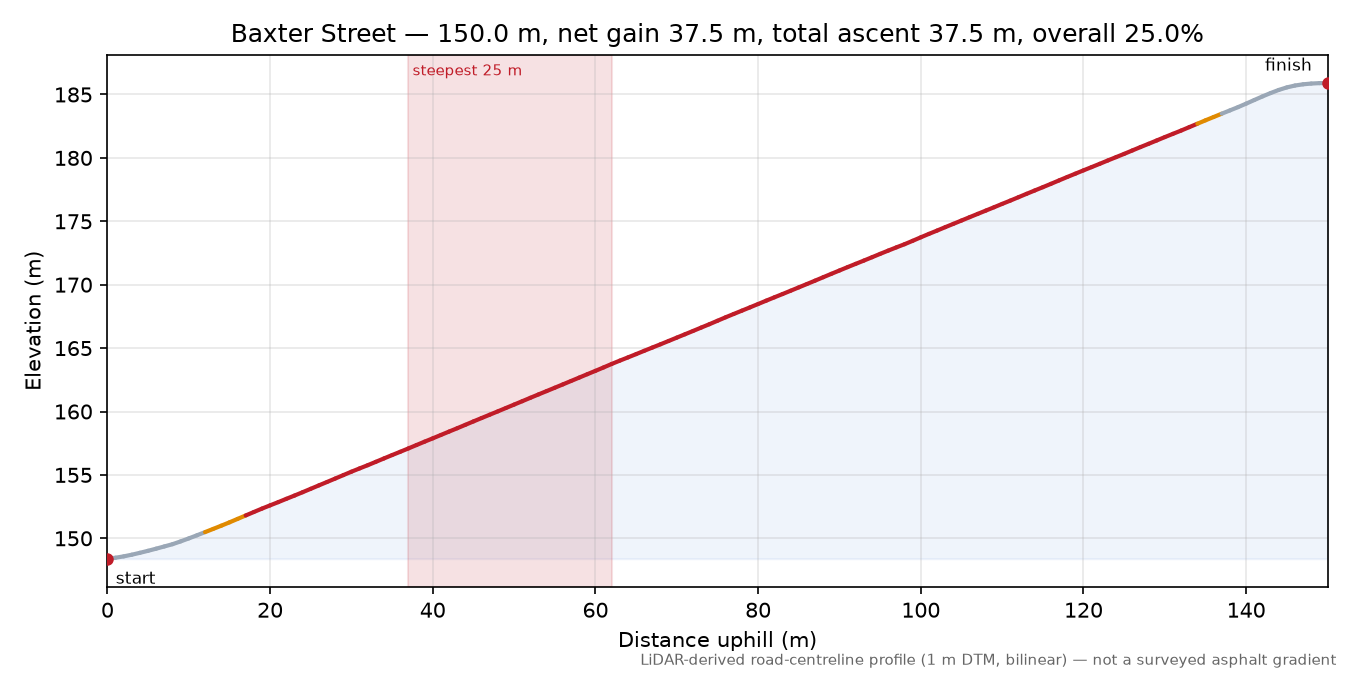

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | USGS 3DEP (The National Map) — USGS 3DEP 1 m DEM, CA_LosAngeles_B23 (collected 2023-24) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:26911; sampled every 1.0 m, bilinear interpolation |
| Tiles | x38y378 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality A; no review flags; no caveated windows |
| Analysis | OCL 0.1.0, analysis 0.1.0, run us-west-la-hills, calculated 2026-09-29 |
Provenance
{
"analysis_version": "0.1.0",
"run_manifest": {
"manifest_version": "1",
"code_git_sha": "2a231bfdd81696eec1cc0817ead9239638bb7157",
"code_git_dirty": "false",
"analysis_version": "0.1.0",
"analysis_config_digest": "sha256:8c94015b54267da4",
"python": "3.14.4",
"numpy": "2.5.3",
"rasterio": "1.5.1",
"pyproj": "3.8.0",
"laspy": "2.7.0",
"shapely": "2.1.2",
"pyosmium": "4.3.1",
"libosmium": "2.23.1",
"gdal": "3.12.4",
"proj": "9.8.1",
"run_id": "us-west-la-hills",
"road_pbf": "us-west-la-hills-block-batch-us-west-la-hills.osm.pbf",
"region_key": "usa-ca-east",
"crs": "EPSG:26911",
"elevation_provider_key": "usa3dep",
"authority": "usa-inventory",
"registry_pbf": "california-2026-09-29.osm.pbf",
"tile_index_snapshot": "sha256:c98325348ae2ec01"
},
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:26911",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/usa/ca-east/USGS_1M_11_x38y378_CA_LosAngeles_B23.tif"
],
"calculated_at": "2026-09-29T21:28:17+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/us-west-la-hills-block-batch-us-west-la-hills.osm.pbf",
"osm_snapshot": "",
"run_id": "us-west-la-hills",
"elevation_provider": "USGS 3DEP (The National Map)",
"elevation_licence": "Public domain \u2014 USGS 3DEP 1 m DEM, courtesy of the U.S. Geological Survey",
"elevation_dataset": "USGS 3DEP 1 m DEM, CA_LosAngeles_B23 (collected 2023-24)",
"elevation_tile_ids": [
"x38y378"
],
"route_summit_trim_m": 191.0,
"route_summit_trim_loss_m": 29.1,
"climb_origin": "named-pass",
"named_pass": "Baxter Street",
"any_length": true,
"seam_filled_samples": {
"count": 0,
"distances_m": []
},
"seam_filled_in_maximum": false,
"canopy_source": {
"kind": "ept_corridor_max_return",
"ept_source": "https://s3-us-west-2.amazonaws.com/usgs-lidar-public/CA_LosAngeles_1_B23",
"ept_crs": "EPSG:3857",
"station_coverage": 1.0,
"cell_ground_m": 1.0,
"nodes_failed": 0,
"window_coverage": {
"5": 1.0,
"10": 1.0,
"20": 1.0,
"25": 1.0
}
},
"structure_own_ways": "none \u2014 the route carried no way list and no mapped way runs along it; own decks unmasked",
"carriageway": {
"stations": 13,
"stations_resolved": 13,
"width_median_m": 10.25,
"width_p10_m": 9.75,
"width_min_m": 8.5,
"width_max_m": 12.0,
"bounded_share": 0.0,
"unbounded_share": 1.0,
"confidence_median": 0.0,
"window_m": [
37.0,
62.0
],
"width_at_max25_m": 10.75,
"window_stations": 7,
"single_track": false,
"single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
"status": "ok",
"source": "dtm",
"station_m": 25.0,
"window_station_m": 5.0,
"halfwidth_m": 6.0,
"step_m": 0.25,
"level_tol_m": 0.12,
"break_min_m": 0.3,
"stations_failed": 0,
"hedge_to_hedge": {
"status": "unavailable \u2014 no DSM raster (surface model absent or point-cloud only, which cannot serve off-line samples)"
}
},
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
