Yorks Hill
2422.0 m · net rise 122.1 m · total ascent 149.6 m · overall 5.0% · evidence quality B (good) · Winkhurst Green · Kent · share
Shape: stepped — 56% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 190 m.
Matches: British National Hill Climb Championship — Venue 1961 (as "Yorks Hill"; the Catford CC course, the oldest hill climb in the world).
≈ Overhead cover (tree canopy or structures) spans 8% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

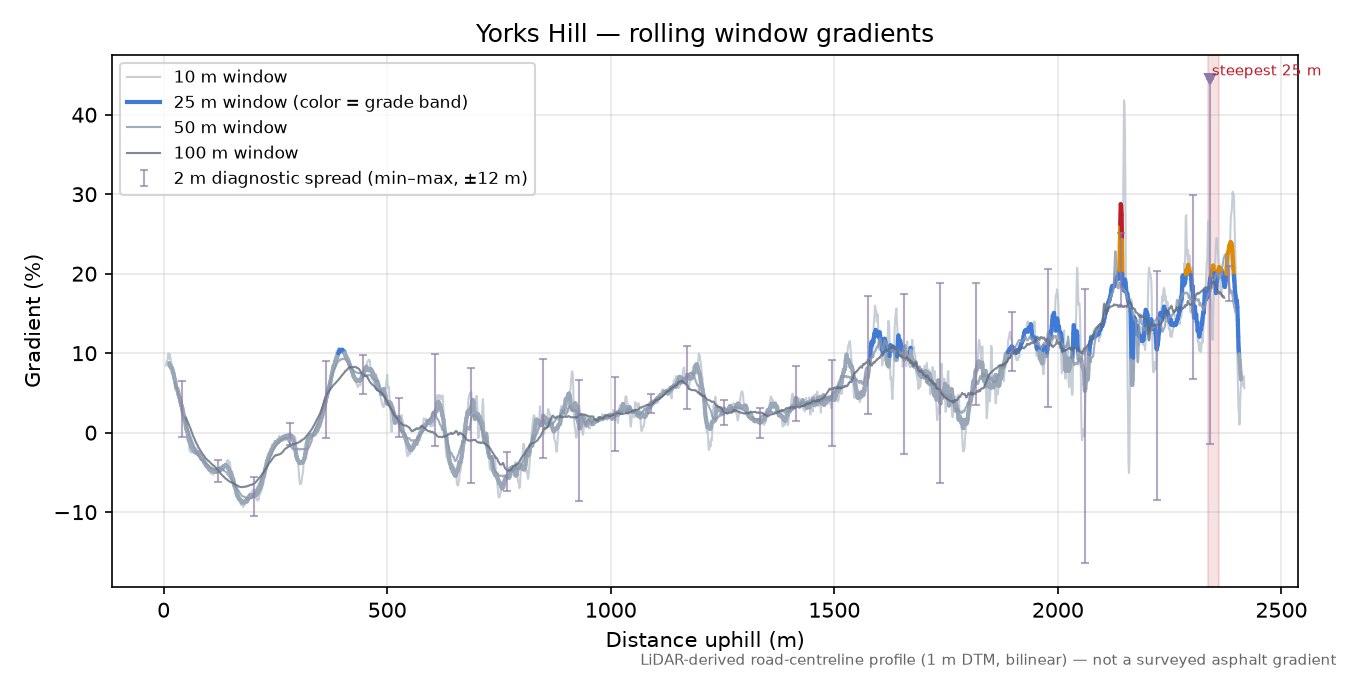

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈45% | 2339–2341 m | under overhead cover terrain reads 89.2% at 2150–2152 m across a structure — excluded |
| 3 m (diagnostic) | ≈35% | 2338–2341 m | under overhead cover terrain reads 86.4% at 2150–2153 m across a structure — excluded |
| 5 m | ≈30% | 2336–2341 m | under overhead cover terrain reads 64.7% at 2149–2154 m across a structure — excluded |
| 10 m | ≈27% | 2331–2341 m | under overhead cover terrain reads 41.8% at 2143–2153 m across a structure — excluded |
| 20 m | ≈21.0% | 2348–2368 m | under overhead cover terrain reads 30.4% at 2133–2153 m across a structure — excluded |
| 25 m | ≈21.0% | 2335–2360 m | under overhead cover terrain reads 28.7% at 2128–2153 m across a structure — excluded |
| 50 m | ≈20.0% | 2330–2380 m | under overhead cover terrain reads 22.8% at 2104–2154 m across a structure — excluded |
| 100 m | ≈13.9% | 2183–2283 m | under overhead cover terrain reads 19.0% at 2298–2398 m across a structure — excluded |
may start earliermay continue beyond end Extent detection suggests reviewing where this climb starts/ends.

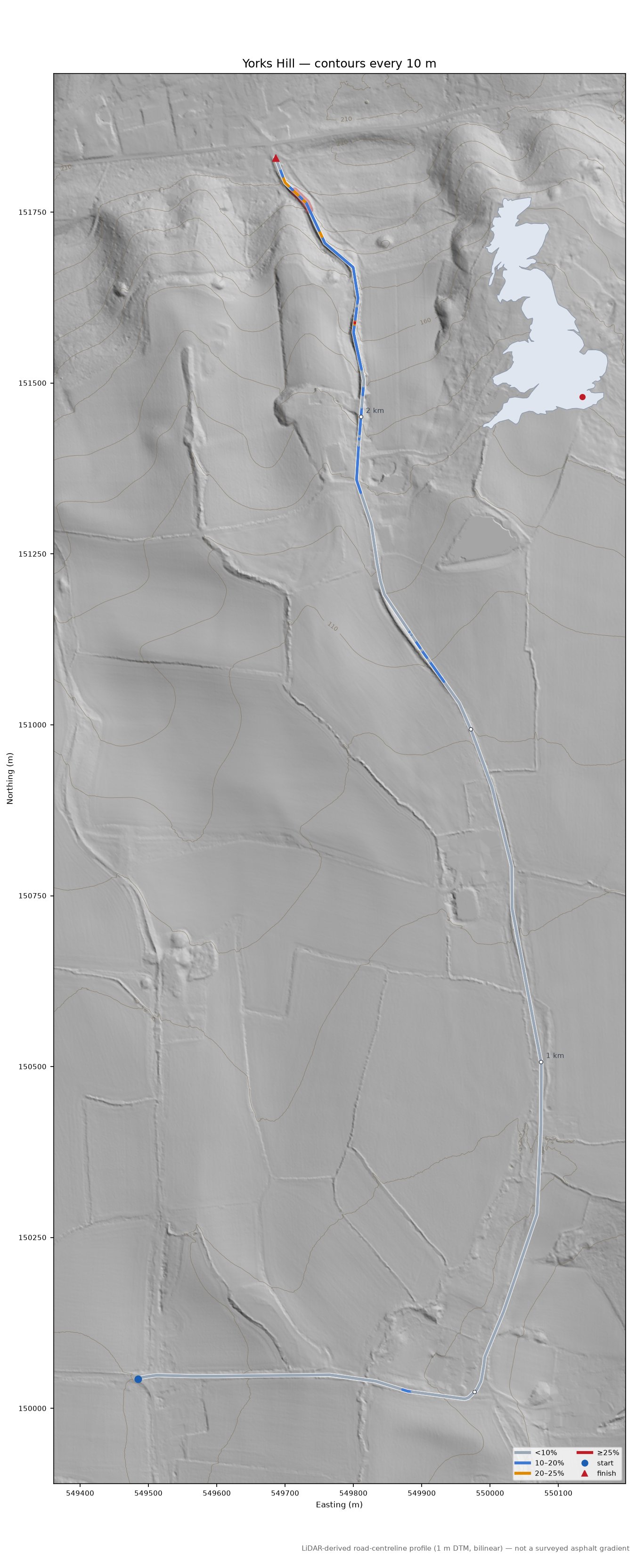

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
No aerial layer here: Britain has no open or government source of aerial photography at road scale — the pan-government APGB imagery is licensed to the public sector only, unlike the LiDAR this survey is measured from. Street View, where it exists, is the visual check.
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Access: Road status under verification: the road audit could not fully vouch for this route (barrier gate (no access tag) 11.9 m off route; openroads covered 100%, restricted 0%). It may include service-road or restricted sections — check access on the ground.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

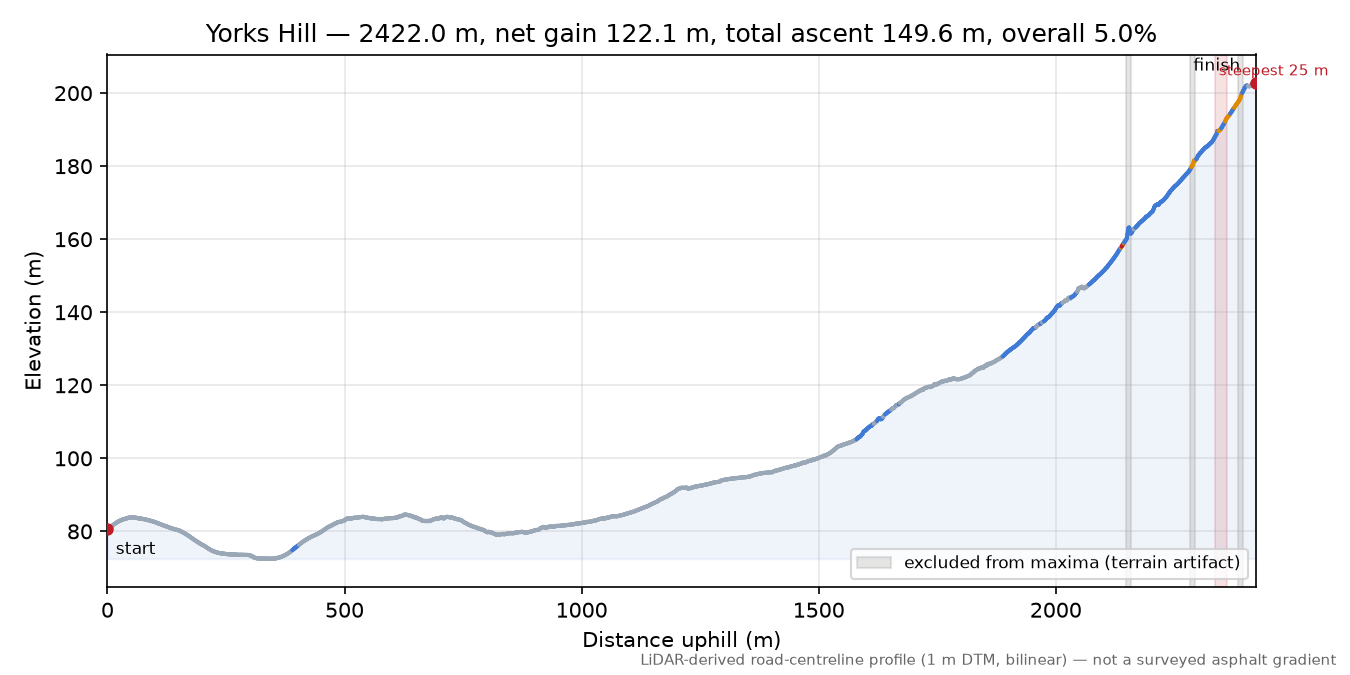

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Environment Agency — EA LIDAR Composite DTM 1m (2022) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation |
| Tiles | E548000_N148000_2000m.tif, E550000_N148000_2000m.tif, E548000_N150000_2000m.tif, E550000_N150000_2000m.tif |
| Road centreline | OpenStreetMap (local PBF extract), snapshot 2026-08-26T20:22:15Z |
| Quality status | evidence quality B; caveated windows: canopy or structure, structure excluded, texture excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run retro-260914, calculated 2026-09-15 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/england/dtm_1m/E548000_N148000_2000m.tif",
"data/cache/england/dtm_1m/E550000_N148000_2000m.tif",
"data/cache/england/dtm_1m/E548000_N150000_2000m.tif",
"data/cache/england/dtm_1m/E550000_N150000_2000m.tif"
],
"calculated_at": "2026-09-15T03:22:46+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/england-2026-08-27.osm.pbf",
"osm_snapshot": "2026-08-26T20:22:15Z",
"run_id": "retro-260914",
"elevation_provider": "Environment Agency",
"elevation_dataset": "EA LIDAR Composite DTM 1m (2022)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Environment Agency",
"elevation_coverage_id": "13787b9a-26a4-4775-8523-806d13af58fc__Lidar_Composite_Elevation_DTM_1m",
"elevation_tile_ids": [
"E548000_N148000_2000m.tif",
"E550000_N148000_2000m.tif",
"E548000_N150000_2000m.tif",
"E550000_N150000_2000m.tif"
],
"route_cut_m": 2422.0,
"climb_origin": "discovered",
"structure_own_ways": "none \u2014 the route carried no way list; own decks unmasked",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
