Mill Bank
459.2 m · net rise 47.0 m · total ascent 48.3 m · overall 10.2% · evidence quality B (good) · Boggle Hole · North Yorkshire · share
Shape: sustained — 40% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 78 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the OS road network, surface models and map tags, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
≈ Overhead cover (tree canopy or structures) spans 36% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈41% | 238–240 m | under overhead cover terrain reads 64.0% at 225–227 m across a structure — excluded |
| 3 m (diagnostic) | ≈35% | 237–240 m | under overhead cover terrain reads 60.9% at 224–227 m across a structure — excluded |
| 5 m | ≈24% | 36–41 m | under overhead cover terrain reads 50.7% at 222–227 m across a structure — excluded |
| 10 m | ≈23% | 36–46 m | under overhead cover terrain reads 34.2% at 217–227 m across a structure — excluded |
| 20 m | ≈21.5% | 36–56 m | under overhead cover terrain reads 22.5% at 212–232 m across a structure — excluded |
| 25 m | 21.2% | 36–61 m | |
| 50 m | ≈20.6% | 24–74 m | under overhead cover terrain reads 21.0% at 37–87 m across a structure — excluded |
| 100 m | ≈7.3% | 269–369 m | under overhead cover terrain reads 17.8% at 23–123 m across a structure and terrain that holds no road surface (dense canopy, no bench) — excluded |
Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
No aerial layer here: Britain has no open or government source of aerial photography at road scale — the pan-government APGB imagery is licensed to the public sector only, unlike the LiDAR this survey is measured from. Street View, where it exists, is the visual check.
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Access: Held from rankings 2026-09-04 (D18 re-read at window level, Peter's Willow Bank catch): the point cloud reads bench-on-flank / ambiguous, not a plain road bed, under the 25 m maximum — steep banks beside a track can pass a route-level verdict. Re-line or retire after a cross-section look. Also held 2026-09-14 (driveway-at-window, UK chips sweep): the steepest 25 m (21.2 %, at 36 m) meets OSM footway way 77791519, 10.7 m from the window, and the window sits 14.6 m off the inventory line — the maximum may be the driveway, not the road. Out of the rankings until a person rules. Also trimmed 2026-09-15 at the tail dog-leg (a driveway, Peter's ruling); steepest 25 m now 21.2 %.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb

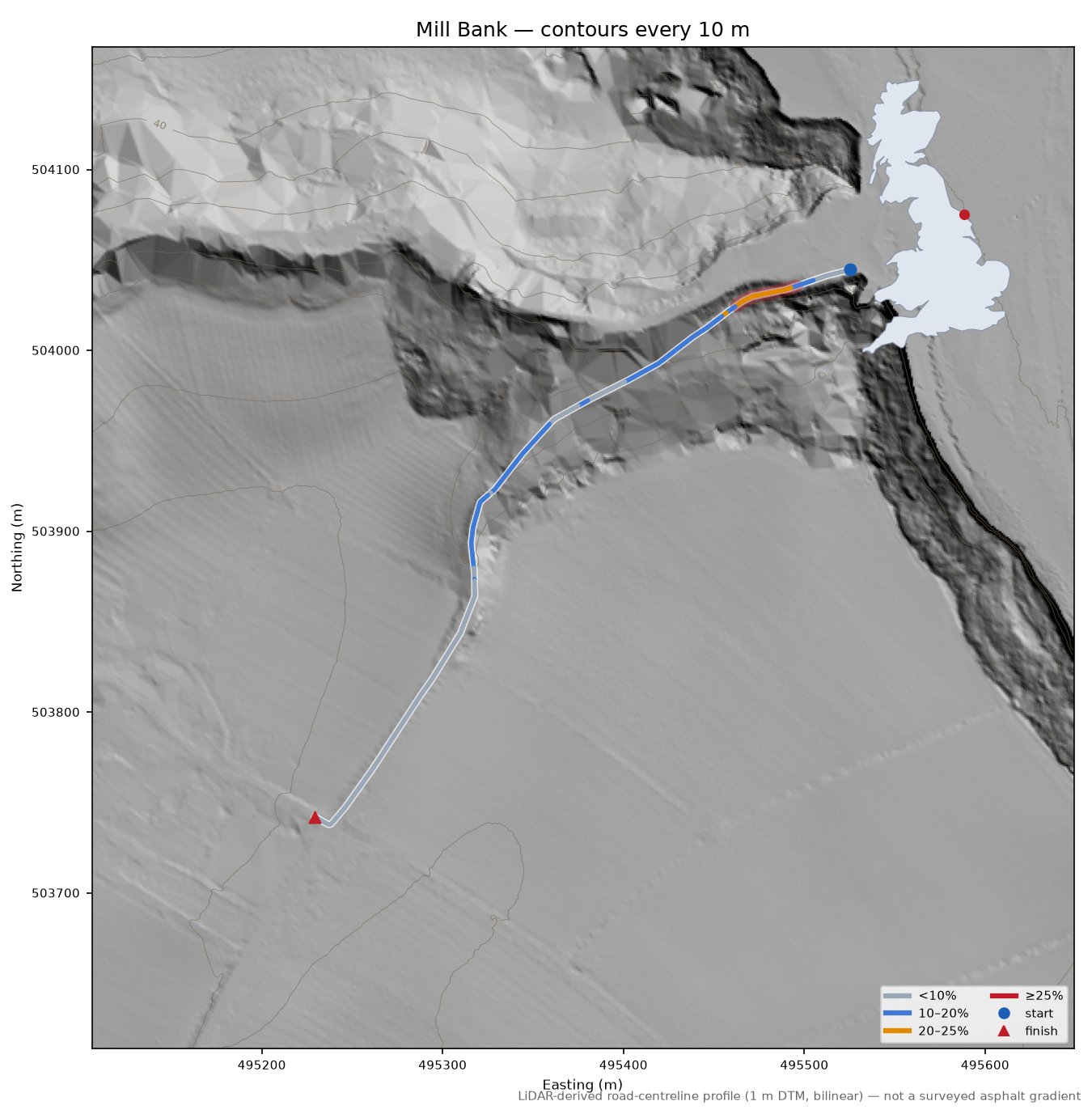

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

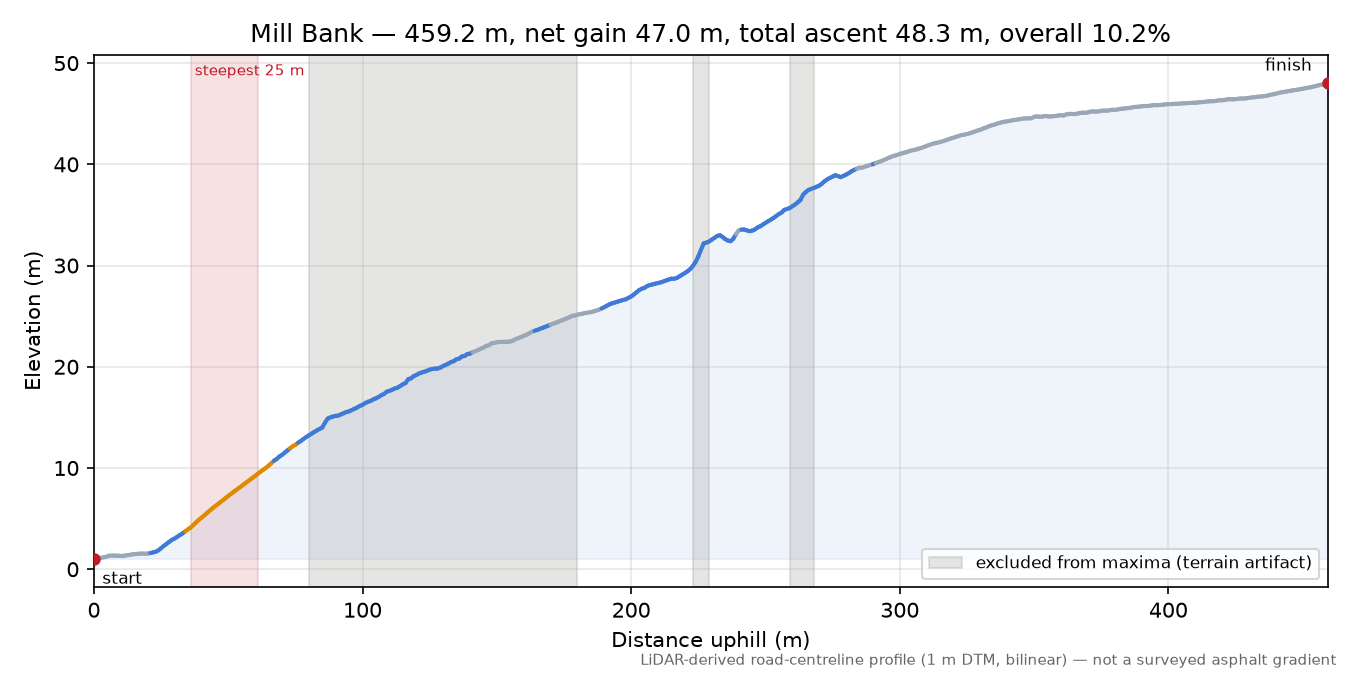

Profile

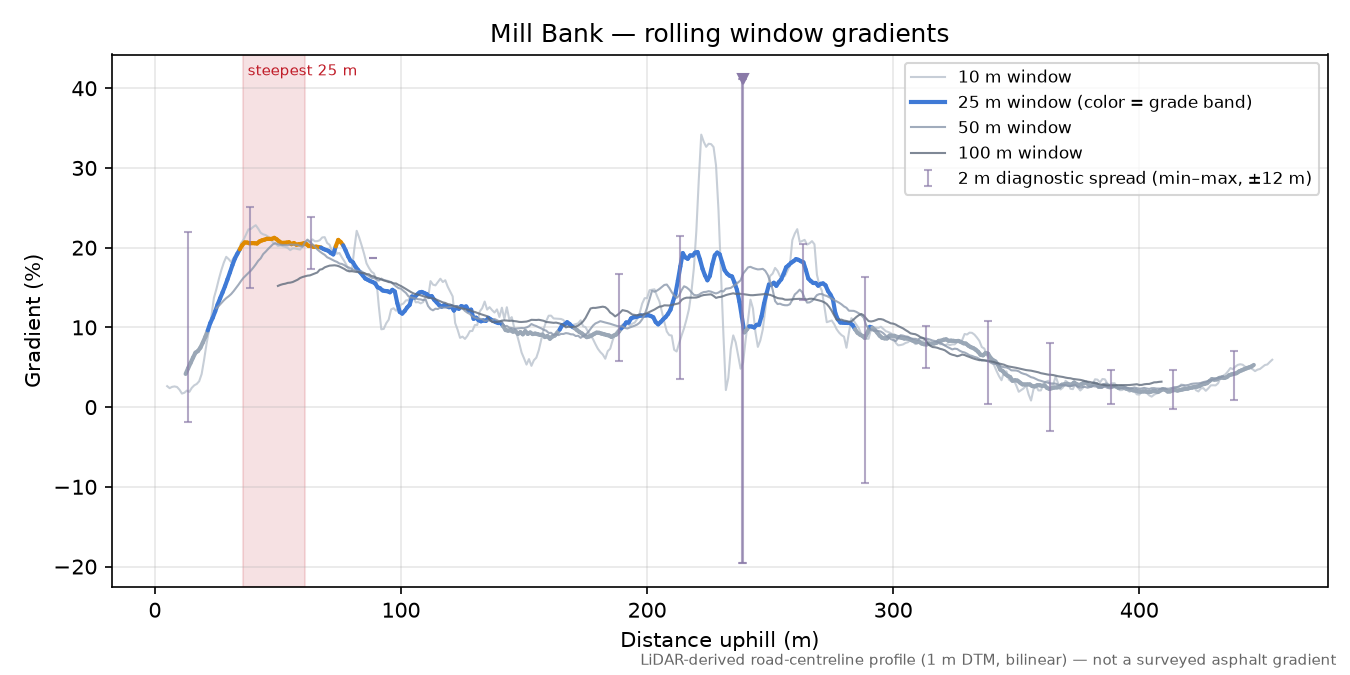

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Environment Agency — EA LIDAR Composite DTM 1m (2022) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation |
| Tiles | E494000_N502000_2000m.tif, E494000_N504000_2000m.tif |
| Road centreline | OpenStreetMap (local PBF extract), snapshot 2026-08-26T20:22:15Z |
| Quality status | evidence quality B; caveated windows: canopy or structure, no bench excluded, structure excluded, texture excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run retro-260915-dogleg-all, calculated 2026-09-15 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/england/dtm_1m/E494000_N502000_2000m.tif",
"data/cache/england/dtm_1m/E494000_N504000_2000m.tif"
],
"calculated_at": "2026-09-15T21:07:19+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/england-2026-08-27.osm.pbf",
"osm_snapshot": "2026-08-26T20:22:15Z",
"run_id": "retro-260915-dogleg-all",
"elevation_provider": "Environment Agency",
"elevation_dataset": "EA LIDAR Composite DTM 1m (2022)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Environment Agency",
"elevation_coverage_id": "13787b9a-26a4-4775-8523-806d13af58fc__Lidar_Composite_Elevation_DTM_1m",
"elevation_tile_ids": [
"E494000_N502000_2000m.tif",
"E494000_N504000_2000m.tif"
],
"climb_origin": "discovered",
"structure_own_ways": "none \u2014 the route carried no way list; own decks unmasked",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
