Minffordd to Cwm Rhwyddfor°
2505.1 m · net rise 147.7 m · total ascent 150.0 m · overall 5.9% · evidence quality A (high) · Minffordd · Gwynedd · share
Shape: sustained — 30% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 25 m.
Matches: Wikipedia, Simon Warren 100 Climbs app (Wales collections) — Bwlch Llyn Bach (Tal-y-llyn pass) — Welsh Wikipedia article; route passes 40 m from the pass point — Bwlch Llyn Bach — listed unnumbered; attribution to confirm in-app.
° The name is provisional: this climb is not yet matched to a documented name, so it was named from nearby map places. There is no evidence of local usage — (auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (52.6963, -3.8596)'). Corrections welcome.

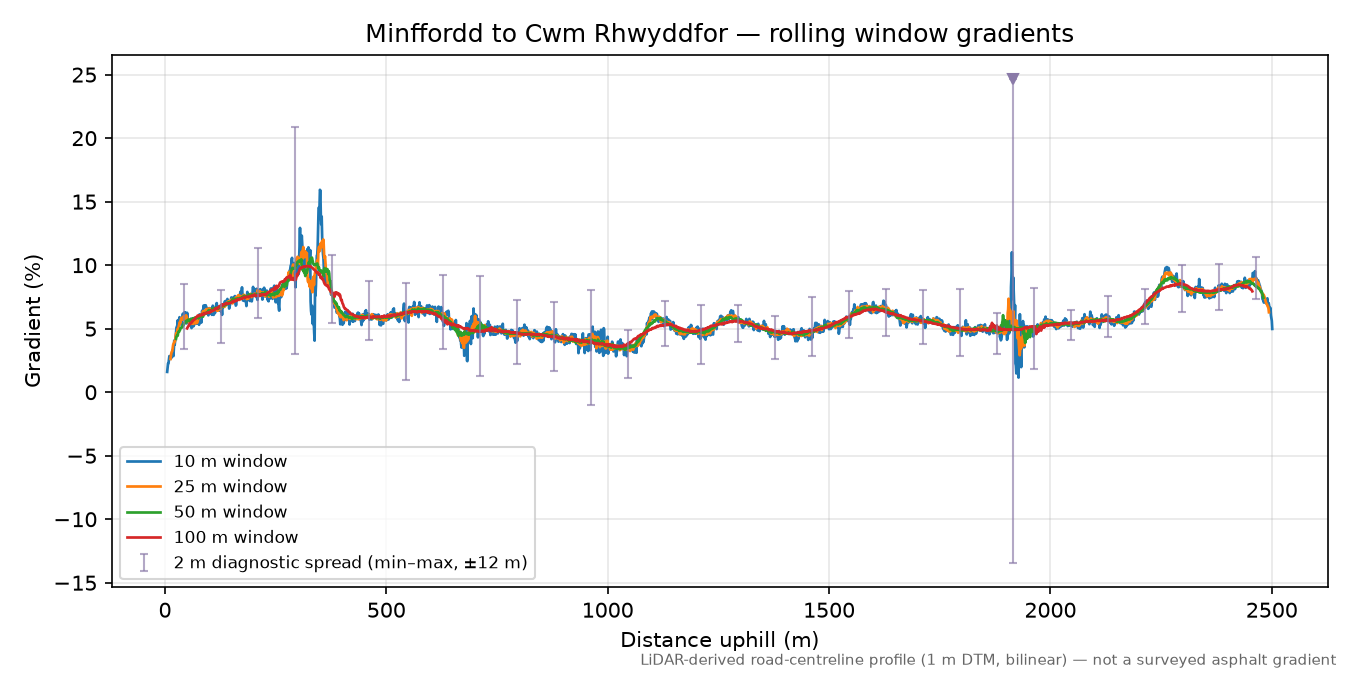

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | 25% | 1915–1917 m | |
| 3 m (diagnostic) | 24% | 1915–1918 m | |
| 5 m | 18% | 346–351 m | |
| 10 m | 16% | 345–355 m | |
| 20 m | 12.8% | 345–365 m | |
| 25 m | 12.0% | 345–370 m | |
| 50 m | 10.6% | 307–357 m | |
| 100 m | 9.9% | 272–372 m |
may continue beyond end Extent detection suggests reviewing where this climb starts/ends.

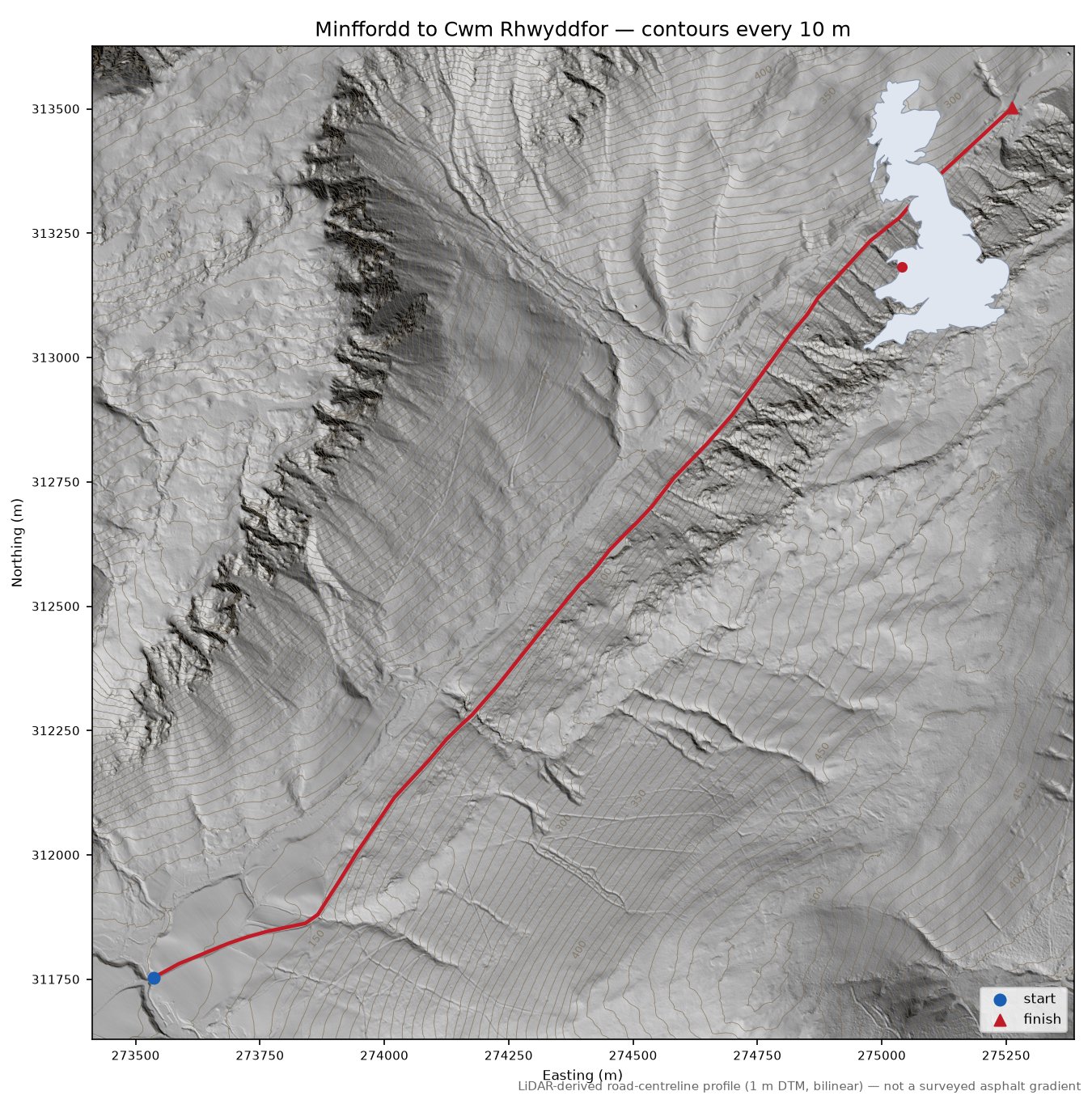

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
No aerial layer here: Britain has no open or government source of aerial photography at road scale — the pan-government APGB imagery is licensed to the public sector only, unlike the LiDAR this survey is measured from. Street View, where it exists, is the visual check.
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

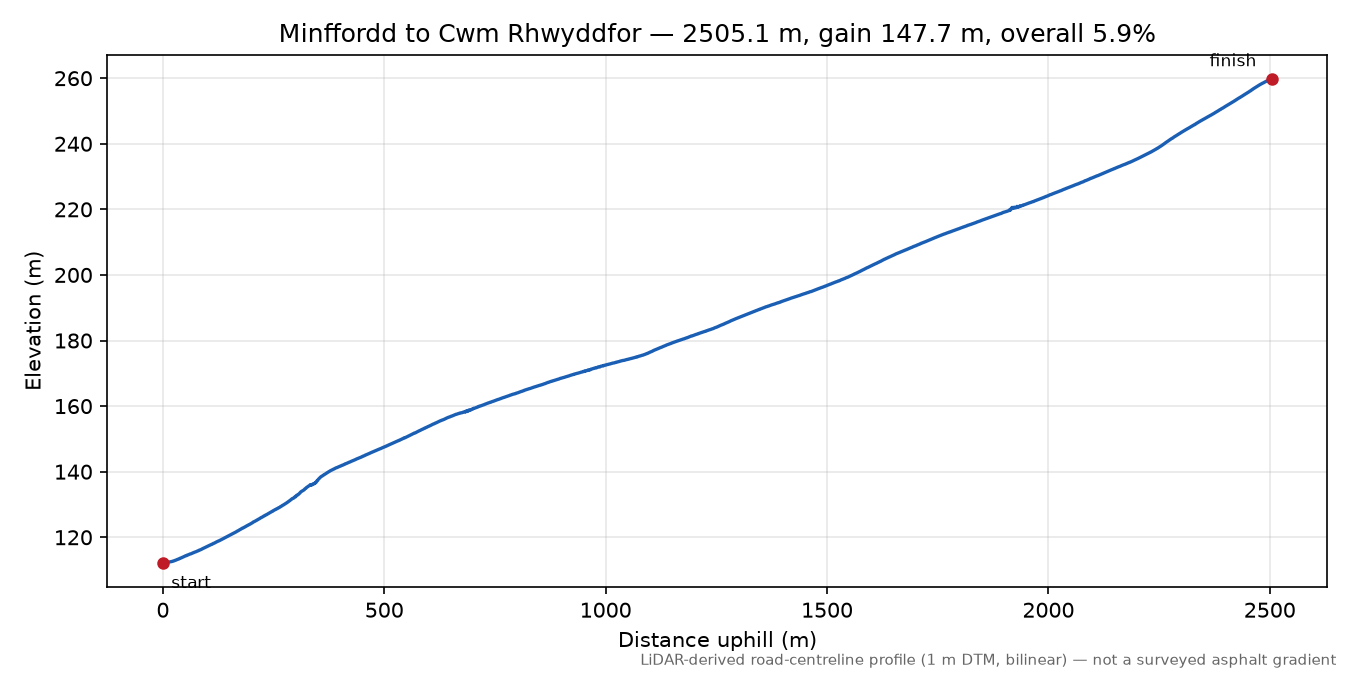

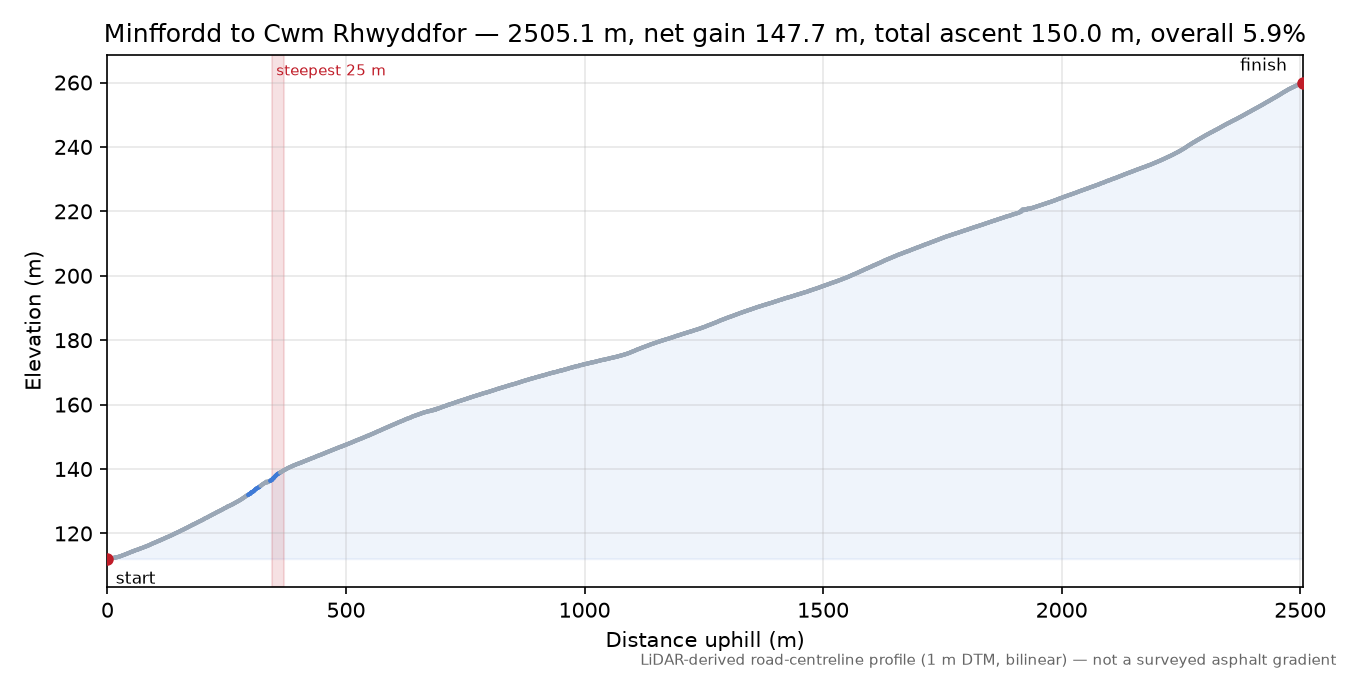

Profile

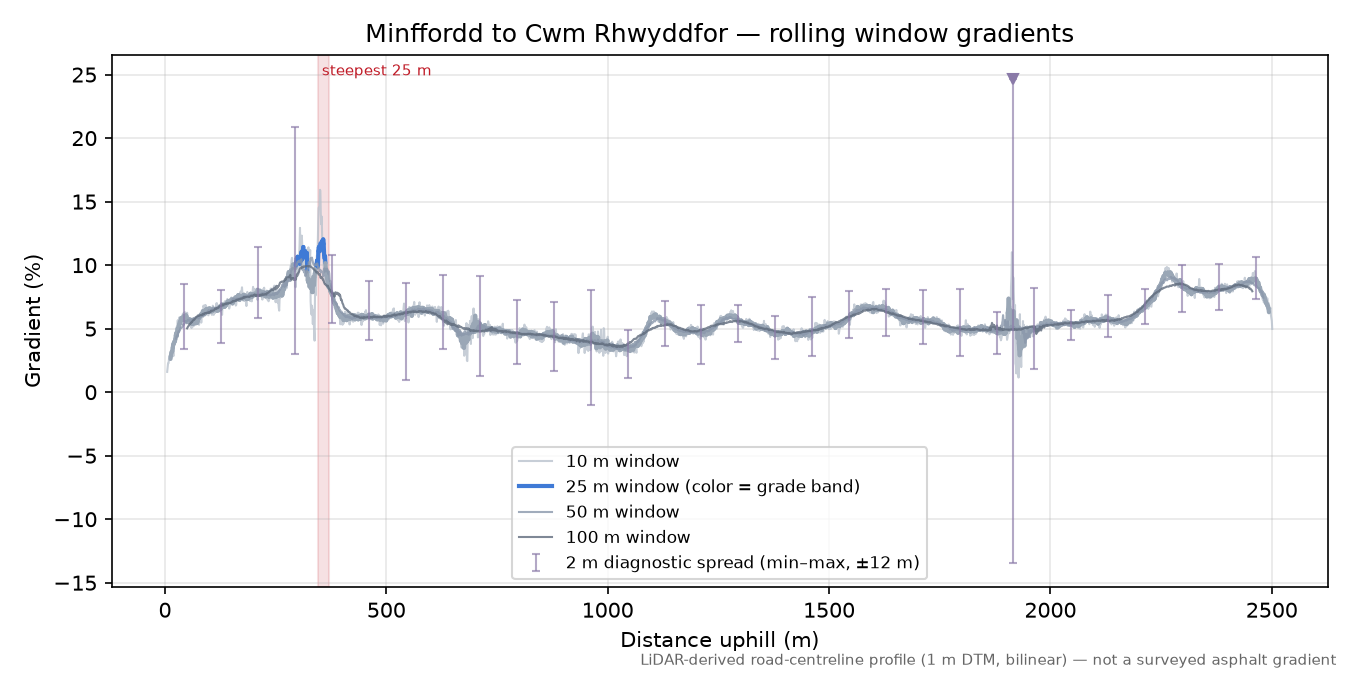

The profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Welsh Government — Welsh Government LiDAR 1m DTM (2020-2023) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation |
| Tiles | wg_del_22_273311_20220114dtm.tif, wg_del_22_273312_20220114dtm.tif, wg_del_22_273313_20220114dtm.tif, wg_del_22_274311_20220114dtm.tif, wg_del_22_274312_20220114dtm.tif, wg_del_22_274313_20220114dtm.tif, wg_del_22_275311_20220114dtm.tif, wg_del_22_275312_20220114dtm.tif, wg_del_22_275313_20220114dtm.tif |
| Road centreline | trunk-adopted-routes/discovered-lane-52-6963-3-8596.geojson |
| Quality status | evidence quality A; no review flags; no caveated windows |
| Analysis | OCL 0.1.0, analysis 0.1.0, run identifier not recorded (legacy measurement, before the campaign driver stamped runs), calculated 2026-08-12 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_22_273311_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_273312_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_273313_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_274311_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_274312_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_274313_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_275311_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_275312_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_275313_20220114dtm.tif"
],
"calculated_at": "2026-08-12T23:12:13+00:00",
"road_source": "trunk-adopted-routes/discovered-lane-52-6963-3-8596.geojson",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_22_273311_20220114dtm.tif",
"wg_del_22_273312_20220114dtm.tif",
"wg_del_22_273313_20220114dtm.tif",
"wg_del_22_274311_20220114dtm.tif",
"wg_del_22_274312_20220114dtm.tif",
"wg_del_22_274313_20220114dtm.tif",
"wg_del_22_275311_20220114dtm.tif",
"wg_del_22_275312_20220114dtm.tif",
"wg_del_22_275313_20220114dtm.tif"
],
"elevation_capture_dates": [
"14-01-2022"
],
"climb_origin": "discovered",
"naming_note": "auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (52.6963, -3.8596)'",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
