Cat and Fiddle
8345.0 m · net rise 243.2 m · total ascent 273.2 m · overall 2.9% · evidence quality A (high) · Higher Hurdsfield · Cheshire · share
Shape: sustained — 39% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 128 m.
Matches: British National Hill Climb Championship, 100 Greatest Cycling Climbs (Simon Warren) — Venue 2002 (as "Cat and Fiddle").
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | 19% | 113–115 m | |
| 3 m (diagnostic) | 17% | 112–115 m | |
| 5 m | 15% | 111–116 m | |
| 10 m | 14% | 183–193 m | |
| 20 m | 13.6% | 63–83 m | |
| 25 m | 13.4% | 58–83 m | |
| 50 m | 13.0% | 35–85 m | |
| 100 m | 12.8% | 16–116 m |
Measured on the mapped road line; moving the line 1 m either way reads 13.4–13.7% over 25 m.
may start earlier Extent detection suggests reviewing where this climb starts/ends.

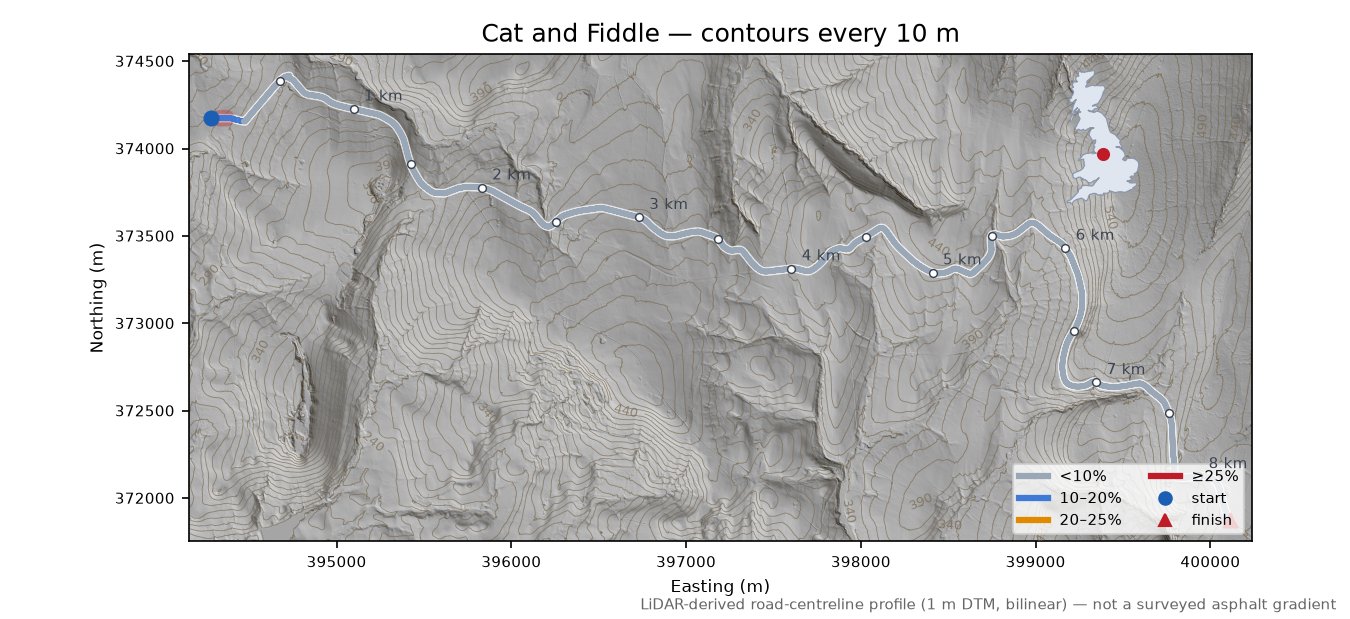

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
No aerial layer here: Britain has no open or government source of aerial photography at road scale — the pan-government APGB imagery is licensed to the public sector only, unlike the LiDAR this survey is measured from. Street View, where it exists, is the visual check.
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Access: Road status under verification: the road audit could not fully vouch for this route (barrier swing_gate (no access tag) 15.7 m off route; barrier swing_gate (no access tag) 9.8 m off route; barrier swing_gate (no access tag) 8.5 m off route; barrier gate (no access tag) 5.6 m off route; barrier gate (no access tag) 15.0 m off route; barrier bollard (no access tag) 12.5 m off route; barrier gate (no access tag) 14.0 m off route; barrier gate (no access tag) 8.9 m off route; barrier gate (no access tag) 6.6 m off route; barrier gate (no access tag) 11.8 m off route; barrier gate (no access tag) 16.3 m off route; barrier gate (no access tag) 6.3 m off route; barrier gate (no access tag) 7.3 m off route; barrier gate (no access tag) 12.2 m off route; barrier gate (no access tag) 13.0 m off route; barrier gate (no access tag) 5.3 m off route; barrier gate (no access tag) 7.3 m off route; barrier gate (no access tag) 13.1 m off route; openroads covered 100%, restricted 0%). It may include service-road or restricted sections — check access on the ground.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

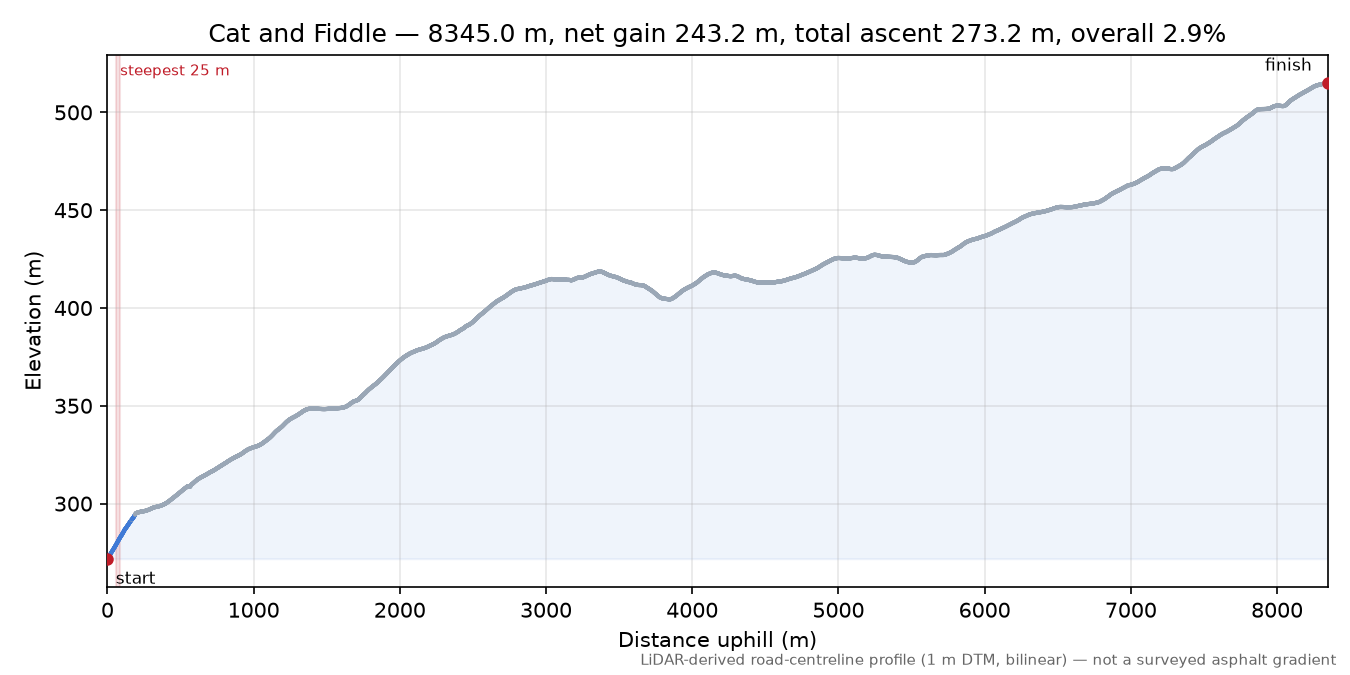

Profile

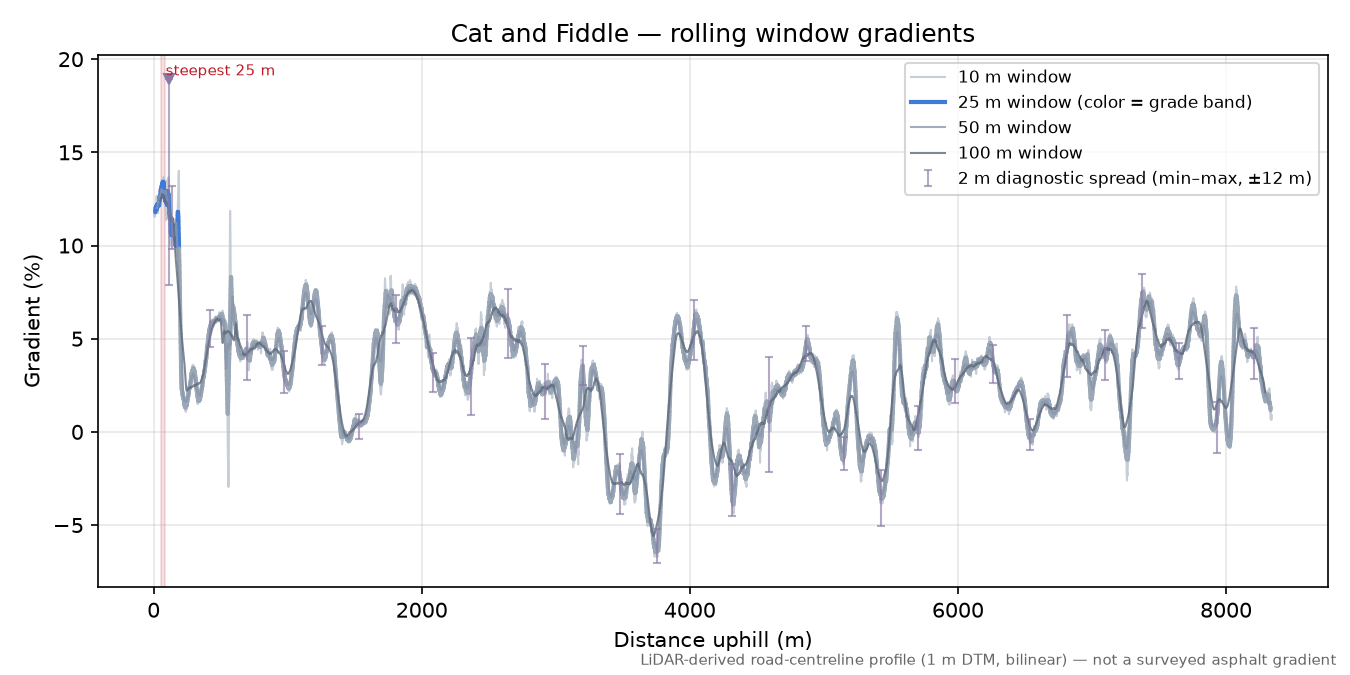

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Environment Agency — EA LIDAR Composite DTM 1m (2022) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation |
| Tiles | SJ9070.tif, SJ9570.tif, SK0070.tif |
| Road centreline | OpenStreetMap (local PBF extract), snapshot 2026-08-26T20:22:15Z |
| Quality status | evidence quality A; no review flags; no caveated windows |
| Analysis | OCL 0.1.0, analysis 0.1.0, run fix-260905-fix-chain-england-england-2026-08-27, calculated 2026-09-05 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/england/bulk_dtm_1m/SJ9070.tif",
"data/cache/england/bulk_dtm_1m/SJ9570.tif",
"data/cache/england/bulk_dtm_1m/SK0070.tif"
],
"calculated_at": "2026-09-05T08:59:42+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/england-2026-08-27-roads.osm.pbf",
"osm_snapshot": "2026-08-26T20:22:15Z",
"run_id": "fix-260905-fix-chain-england-england-2026-08-27",
"elevation_provider": "Environment Agency",
"elevation_dataset": "EA LIDAR Composite DTM 1m (2022)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Environment Agency",
"elevation_coverage_id": "13787b9a-26a4-4775-8523-806d13af58fc__Lidar_Composite_Elevation_DTM_1m",
"elevation_tile_ids": [
"SJ9070.tif",
"SJ9570.tif",
"SK0070.tif"
],
"route_cut_m": 8345.0,
"climb_origin": "discovered",
"door_status": "below every adoption door at fold time \u2014 kept pending: hunt wave 1 page admitted on the coarse inventory door (adopt_hunt_wave); the summit trim can only raise its numbers \u2014 LiDAR-door standing is a separate ruling (listed in below-door.csv)",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
