21130.6 m · net rise 754.8 m · total ascent 837.5 m · overall 3.6% · evidence quality B (good) · Voss · Vestland

Shape: sustained — 36% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 235 m.

Not yet matched against documented climbs — the measurement stands on its own.

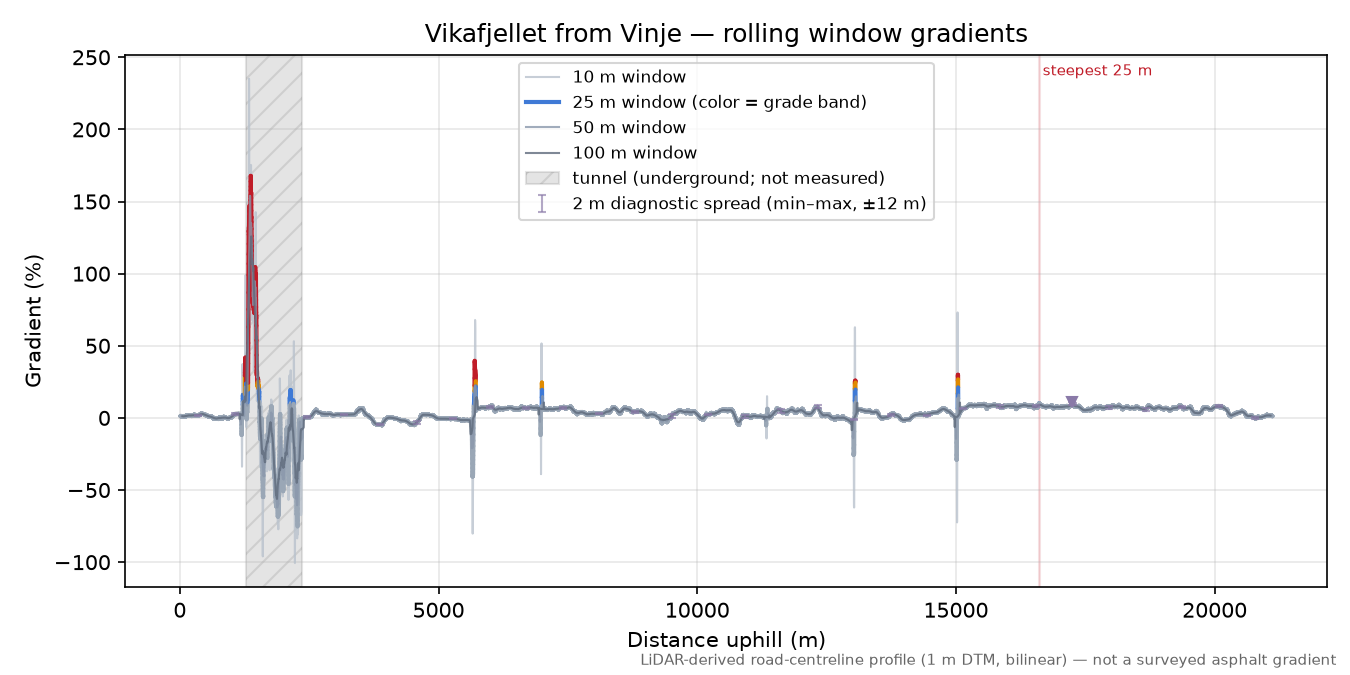

Gradient ladder what do windows mean?

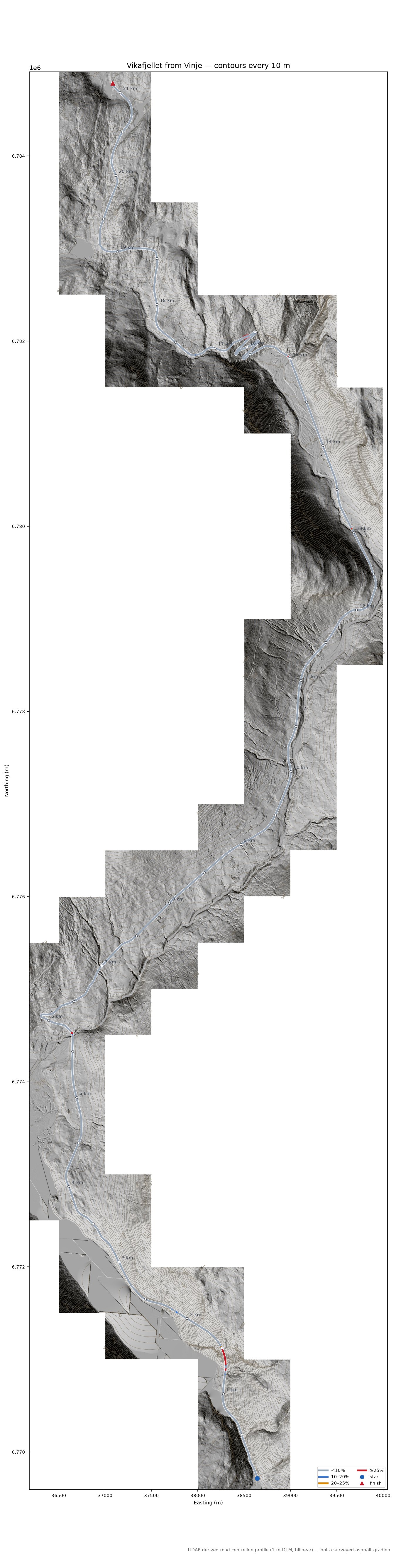

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved throughout, according to NVDB, Norway's National Road Database.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Load the interactive map

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.

Topo (contours) Vector   © OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

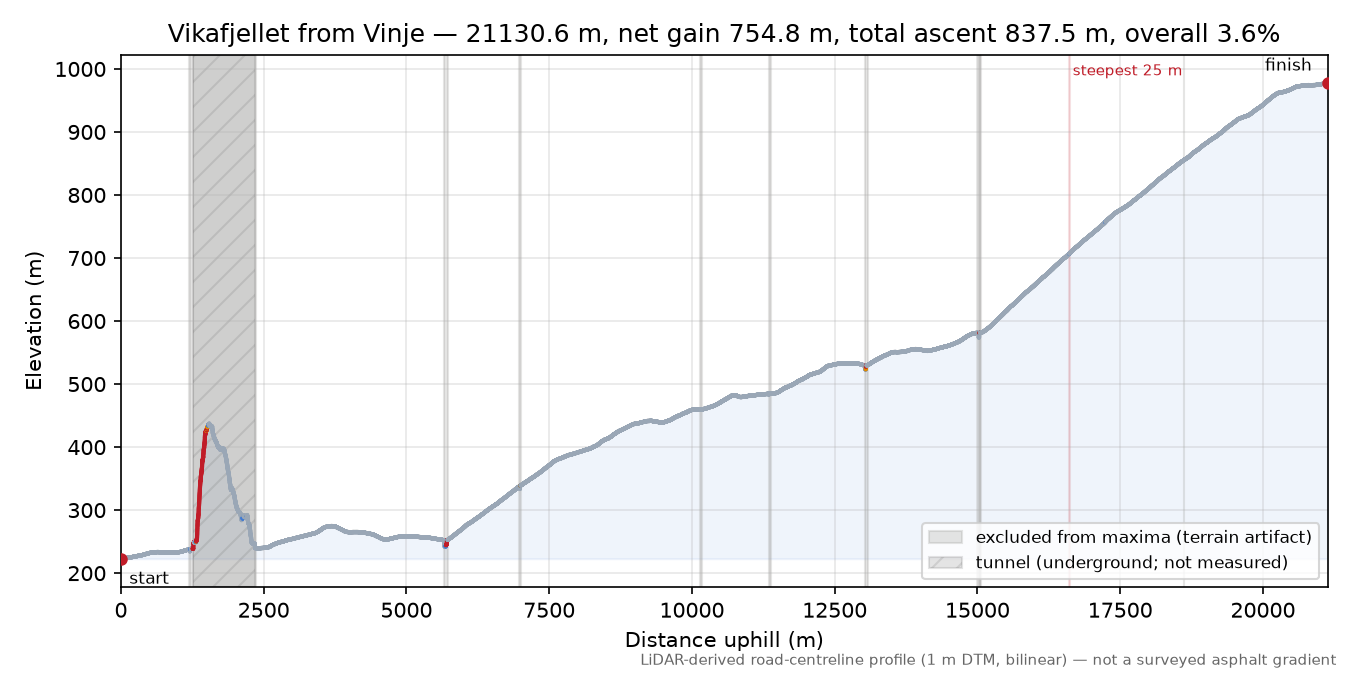

Profile

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).



Measurement card

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "368c60c29e47d4b421849c953b172a04f7694146",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.2",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.2",
    "proj": "9.8.1",
    "run_id": "no-b03",
    "road_pbf": "no-b03-block-batch-no-b03.osm.pbf",
    "region_key": "norway",
    "crs": "EPSG:25833",
    "elevation_provider_key": "nhm-no",
    "tile_index": "nhm-window",
    "authority": "nvdb",
    "registry_pbf": "norway-2026-10-01.osm.pbf"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "scale_correction": "point",
  "scale_correction_crs": "EPSG:25833",
  "elevation_crs": "EPSG:25833",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/no/nhm-no_dtm_E36000-N6772500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6773000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6773500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6774000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6774500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6775000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6771500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6772000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6772500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6773000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6773500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6774000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6774500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6775000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6775500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6782500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6783000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6783500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6784000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6784500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6771000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6771500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6772000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6772500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6774500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6775000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6775500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6776000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6781500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6782000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6782500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6783000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6783500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6784000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6784500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6771000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6771500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6775000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6775500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6776000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6781500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6782000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6782500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6783000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6769500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6770000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6770500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6771000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6771500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6775500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6776000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6776500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6781500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6782000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6769500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6770000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6770500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6776000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6776500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6777000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6777500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6778000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6778500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6781000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6781500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6782000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6776500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6777000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6777500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6778000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6778500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6779000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6779500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6780000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6780500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6781000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6781500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6782000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6778500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6779000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6779500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6780000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6780500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6781000_1m.tif"
  ],
  "calculated_at": "2026-10-03T22:35:09+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/no-b03-block-batch-no-b03.osm.pbf",
  "osm_snapshot": "",
  "run_id": "no-b03",
  "elevation_provider": "Kartverket NHM DTM 1 m (laser-covered ground only)",
  "elevation_licence": "CC BY 4.0 \u2014 \u00a9 Kartverket (https://www.kartverket.no/api-og-data/vilkar-for-bruk)",
  "elevation_dataset": "Nasjonal h\u00f8ydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured",
  "elevation_vertical_datum": "NN2000",
  "elevation_tile_ids": [
    "E36000-N6772500",
    "E36000-N6773000",
    "E36000-N6773500",
    "E36000-N6774000",
    "E36000-N6774500",
    "E36000-N6775000",
    "E36500-N6771500",
    "E36500-N6772000",
    "E36500-N6772500",
    "E36500-N6773000",
    "E36500-N6773500",
    "E36500-N6774000",
    "E36500-N6774500",
    "E36500-N6775000",
    "E36500-N6775500",
    "E36500-N6782500",
    "E36500-N6783000",
    "E36500-N6783500",
    "E36500-N6784000",
    "E36500-N6784500",
    "E37000-N6771000",
    "E37000-N6771500",
    "E37000-N6772000",
    "E37000-N6772500",
    "E37000-N6774500",
    "E37000-N6775000",
    "E37000-N6775500",
    "E37000-N6776000",
    "E37000-N6781500",
    "E37000-N6782000",
    "E37000-N6782500",
    "E37000-N6783000",
    "E37000-N6783500",
    "E37000-N6784000",
    "E37000-N6784500",
    "E37500-N6771000",
    "E37500-N6771500",
    "E37500-N6775000",
    "E37500-N6775500",
    "E37500-N6776000",
    "E37500-N6781500",
    "E37500-N6782000",
    "E37500-N6782500",
    "E37500-N6783000",
    "E38000-N6769500",
    "E38000-N6770000",
    "E38000-N6770500",
    "E38000-N6771000",
    "E38000-N6771500",
    "E38000-N6775500",
    "E38000-N6776000",
    "E38000-N6776500",
    "E38000-N6781500",
    "E38000-N6782000",
    "E38500-N6769500",
    "E38500-N6770000",
    "E38500-N6770500",
    "E38500-N6776000",
    "E38500-N6776500",
    "E38500-N6777000",
    "E38500-N6777500",
    "E38500-N6778000",
    "E38500-N6778500",
    "E38500-N6781000",
    "E38500-N6781500",
    "E38500-N6782000",
    "E39000-N6776500",
    "E39000-N6777000",
    "E39000-N6777500",
    "E39000-N6778000",
    "E39000-N6778500",
    "E39000-N6779000",
    "E39000-N6779500",
    "E39000-N6780000",
    "E39000-N6780500",
    "E39000-N6781000",
    "E39000-N6781500",
    "E39000-N6782000",
    "E39500-N6778500",
    "E39500-N6779000",
    "E39500-N6779500",
    "E39500-N6780000",
    "E39500-N6780500",
    "E39500-N6781000"
  ],
  "elevation_blocks": [
    "nhm-dtm-1m"
  ],
  "nhm_laser_projects": [
    {
      "name": "NDH Kvitanosi 4pkt 2019",
      "year": 2019,
      "last_flight_date": "2019-01-01",
      "points_per_m2": 4,
      "resolution_m": 0.25,
      "season": "season-unknown"
    },
    {
      "name": "NDH Vik-Aurland-L\u00e6rdal 2pkt 2019",
      "year": 2019,
      "last_flight_date": "2019-09-22",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": ""
    },
    {
      "name": "NDH Voss 2pkt 2016",
      "year": 2016,
      "last_flight_date": "2016-10-13",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": ""
    },
    {
      "name": "NDH Voss 5pkt 2016",
      "year": 2016,
      "last_flight_date": "2016-08-16",
      "points_per_m2": 5,
      "resolution_m": 0.25,
      "season": ""
    },
    {
      "last_flight_date": "2009-01-01",
      "name": "Sogn og Fjordane 2009",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "season-unknown",
      "year": 2009
    },
    {
      "last_flight_date": "2024-08-01",
      "name": "Voss 10pkt 2024",
      "points_per_m2": 10,
      "resolution_m": 0.25,
      "season": "",
      "year": 2024
    },
    {
      "name": "Voss Vaksdal 2010",
      "year": 2010,
      "last_flight_date": "2010-09-05",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": ""
    }
  ],
  "nhm_last_flight_date": "2024-08-01",
  "nhm_flight_season_unknown": [
    "NDH Kvitanosi 4pkt 2019",
    "Sogn og Fjordane 2009"
  ],
  "nhm_retrieved_at": "2026-10-03T22:35:00Z",
  "nhm_note": "laser projects overlapping the route's cells; the mosaic draws on them by its own priority and which project supplied which pixel is not recorded",
  "climb_origin": "named-pass",
  "named_pass": "Vikafjellet",
  "seam_filled_samples": {
    "count": 0,
    "distances_m": []
  },
  "seam_filled_in_maximum": false,
  "structure_own_ways": 31,
  "tunnel_check": "osm tunnel=* ways on 31 own way(s)",
  "tunnel_ranges_m": [
    [
      1269.9,
      2352.0
    ]
  ],
  "underground_fraction": 0.0512,
  "structure_mask_ranges_m": [
    [
      13055.4,
      13077.5
    ],
    [
      1269.9,
      2352.0
    ],
    [
      15053.0,
      15066.5
    ],
    [
      5668.7,
      5723.0
    ],
    [
      10151.5,
      10177.3
    ],
    [
      18615.4,
      18621.0
    ],
    [
      6991.2,
      7009.1
    ],
    [
      1203.1,
      1221.2
    ],
    [
      11365.8,
      11374.9
    ]
  ],
  "mask_basin_extension_m": 9.0,
  "carriageway": {
    "stations": 854,
    "stations_resolved": 854,
    "width_median_m": 6.25,
    "width_p10_m": 4.83,
    "width_min_m": 1.0,
    "width_max_m": 12.0,
    "bounded_share": 0.275,
    "unbounded_share": 0.725,
    "confidence_median": 0.0,
    "width_median_bounded_m": 5.75,
    "window_m": [
      16596.0,
      16621.0
    ],
    "width_at_max25_m": 6.5,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 854,
      "stations_resolved": 854,
      "width_median_m": 9.75,
      "width_p10_m": 6.5,
      "width_min_m": 1.0,
      "width_max_m": 12.0,
      "bounded_share": 0.496,
      "unbounded_share": 0.504,
      "confidence_median": 0.0,
      "width_median_bounded_m": 8.0,
      "window_m": [
        16596.0,
        16621.0
      ],
      "width_at_max25_m": 9.75,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
