LIVING SURVEY — measurements are reviewed continuously as new data and local evidence arrive. Seen a sign, a gate, or a better name? Submit an update no account needed · photos welcome via GitHub
25096.4 m · net rise 905.1 m · overall 3.6% · evidence quality B (good) · Eidfjord · Vestland
Shape: stepped — 60% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 209 m.
Not yet matched against documented climbs — the measurement stands on its own.

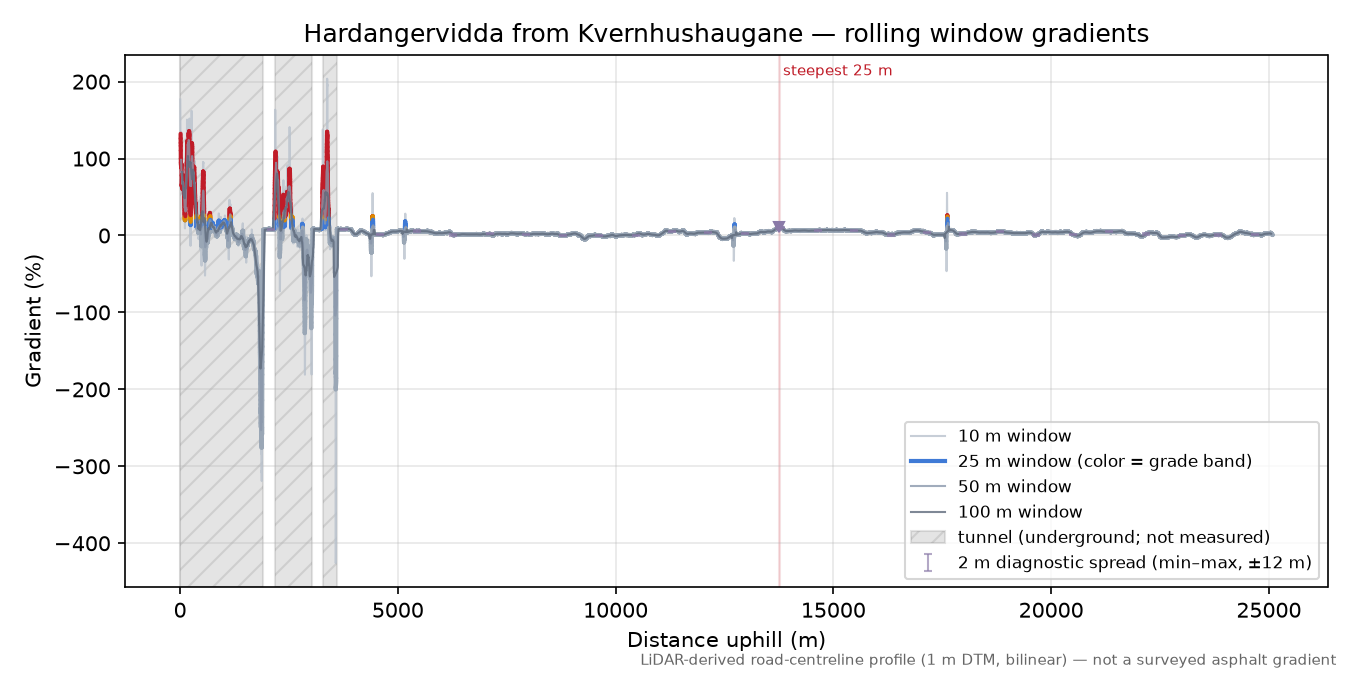

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈11% | 13740–13742 m | under overhead cover terrain reads 301.5% at 3–5 m across a structure — excluded |
| 3 m (diagnostic) | ≈11% | 13739–13742 m | under overhead cover terrain reads 268.5% at 2–5 m across a structure — excluded |
| 5 m | ≈11% | 13768–13773 m | under overhead cover terrain reads 247.2% at 0–5 m across a structure — excluded |
| 10 m | ≈10% | 13764–13774 m | under overhead cover terrain reads 203.8% at 3373–3383 m across a structure — excluded |
| 20 m | ≈10.3% | 13768–13788 m | under overhead cover terrain reads 153.6% at 3371–3391 m across a structure — excluded |
| 25 m | ≈10.3% | 13748–13773 m | under overhead cover terrain reads 135.7% at 195–220 m across a structure — excluded |
| 50 m | ≈10.2% | 13748–13798 m | under overhead cover terrain reads 124.1% at 174–224 m across a structure — excluded |
| 100 m | ≈10.0% | 13733–13833 m | under overhead cover terrain reads 103.4% at 130–230 m across a structure — excluded |
may start earlier Extent detection suggests reviewing where this climb starts/ends.

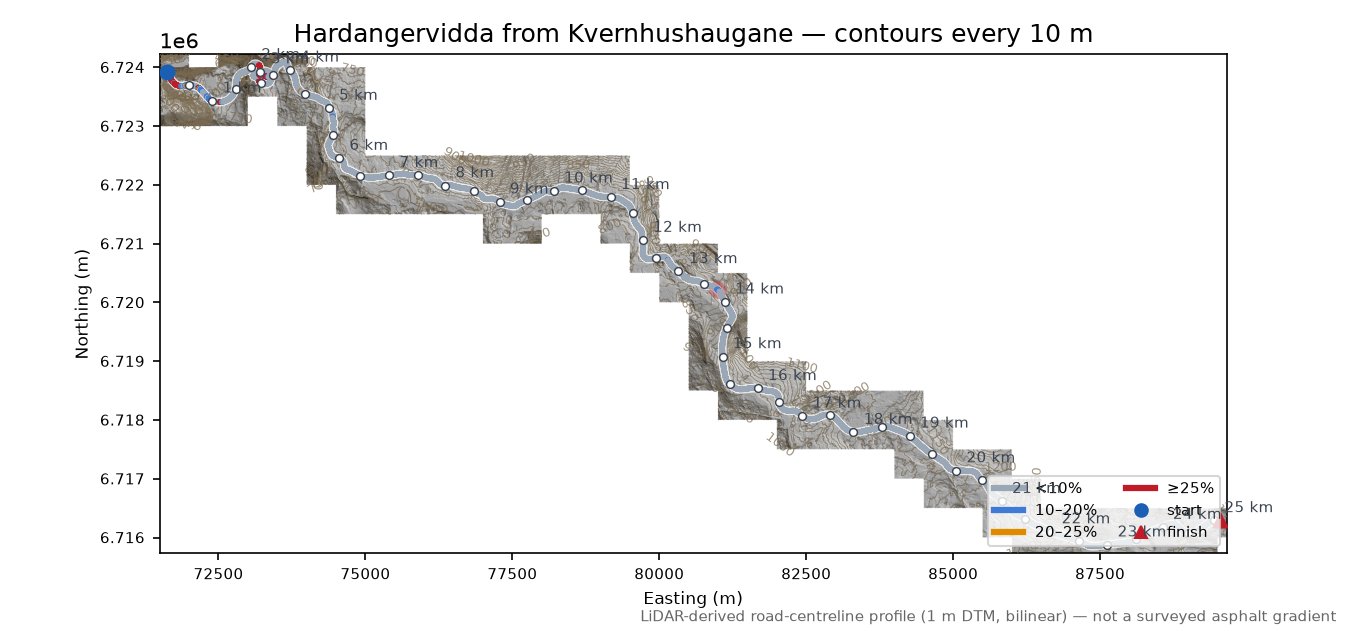

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: paved throughout, according to NVDB, Norway's National Road Database.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

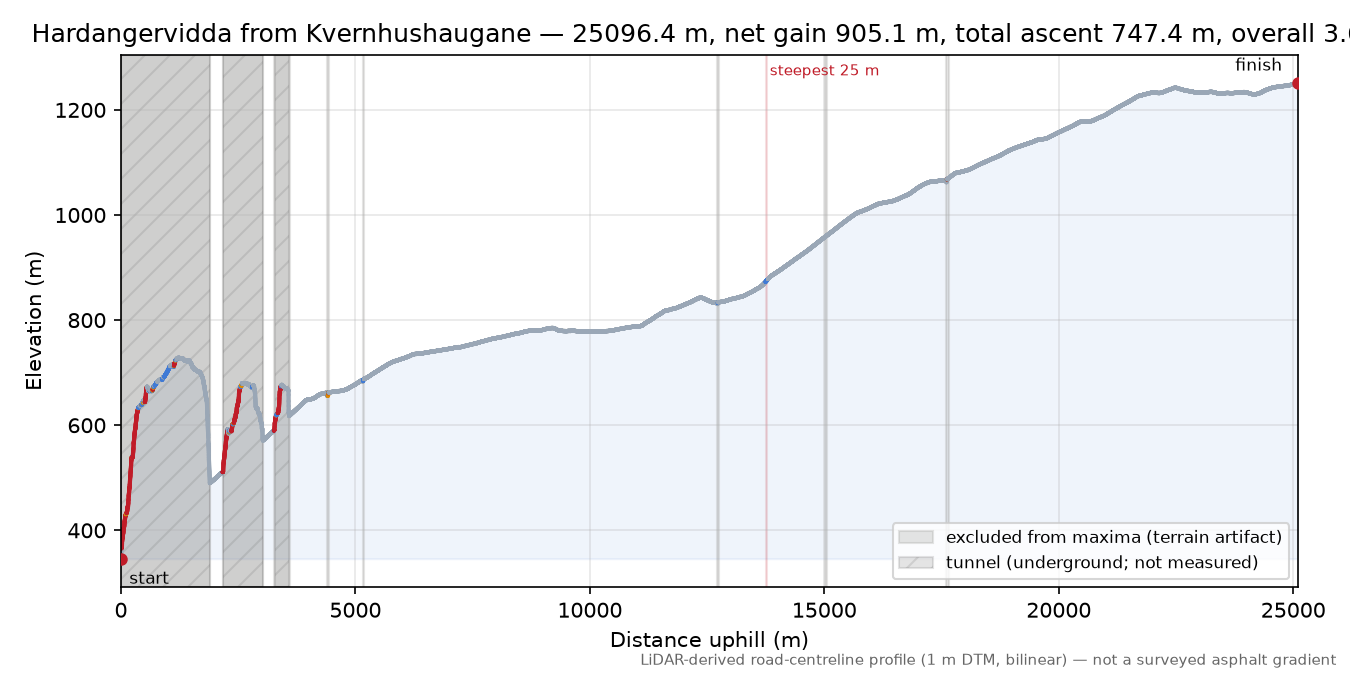

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Kartverket NHM DTM 1 m (laser-covered ground only) — Nasjonal høydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:25833; sampled every 1.0 m, bilinear interpolation |
| Tiles | E71500-N6723000, E71500-N6723500, E71500-N6724000, E72000-N6723000, E72000-N6723500, E72500-N6723000, E72500-N6723500, E72500-N6724000, E73000-N6723500, E73000-N6724000, E73500-N6723000, E73500-N6723500, E73500-N6724000, E74000-N6722000, E74000-N6722500, E74000-N6723000, E74000-N6723500, E74500-N6721500, E74500-N6722000, E74500-N6722500, E74500-N6723000, E74500-N6723500, E75000-N6721500, E75000-N6722000, E75500-N6721500, E75500-N6722000, E76000-N6721500, E76000-N6722000, E76500-N6721500, E76500-N6722000, E77000-N6721000, E77000-N6721500, E77000-N6722000, E77500-N6721000, E77500-N6721500, E77500-N6722000, E78000-N6721500, E78000-N6722000, E78500-N6721500, E78500-N6722000, E79000-N6721000, E79000-N6721500, E79000-N6722000, E79500-N6720500, E79500-N6721000, E79500-N6721500, E80000-N6720000, E80000-N6720500, E80500-N6718500, E80500-N6719000, E80500-N6719500, E80500-N6720000, E80500-N6720500, E81000-N6718000, E81000-N6718500, E81000-N6719000, E81000-N6719500, E81000-N6720000, E81500-N6718000, E81500-N6718500, E82000-N6717500, E82000-N6718000, E82000-N6718500, E82500-N6717500, E82500-N6718000, E83000-N6717500, E83000-N6718000, E83500-N6717500, E83500-N6718000, E84000-N6717000, E84000-N6717500, E84000-N6718000, E84500-N6716500, E84500-N6717000, E84500-N6717500, E85000-N6716500, E85000-N6717000, E85500-N6716000, E85500-N6716500, E85500-N6717000, E86000-N6715500, E86000-N6716000, E86000-N6716500, E86500-N6715500, E86500-N6716000, E87000-N6715500, E87000-N6716000, E87500-N6715500, E87500-N6716000, E88000-N6715500, E88000-N6716000, E88500-N6715500, E88500-N6716000, E89000-N6715500, E89000-N6716000, E89500-N6716000 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality B; caveated windows: structure excluded, structure excluded min |
| Analysis | OCL 0.1.0, analysis 0.1.0, run no-b03, calculated 2026-10-03 |
Provenance
{
"analysis_version": "0.1.0",
"run_manifest": {
"manifest_version": "1",
"code_git_sha": "368c60c29e47d4b421849c953b172a04f7694146",
"code_git_dirty": "false",
"analysis_version": "0.1.0",
"analysis_config_digest": "sha256:8c94015b54267da4",
"python": "3.14.4",
"numpy": "2.5.3",
"rasterio": "1.5.2",
"pyproj": "3.8.0",
"laspy": "2.7.0",
"shapely": "2.1.2",
"pyosmium": "4.3.1",
"libosmium": "2.23.1",
"gdal": "3.12.2",
"proj": "9.8.1",
"run_id": "no-b03",
"road_pbf": "no-b03-block-batch-no-b03.osm.pbf",
"region_key": "norway",
"crs": "EPSG:25833",
"elevation_provider_key": "nhm-no",
"tile_index": "nhm-window",
"authority": "nvdb",
"registry_pbf": "norway-2026-10-01.osm.pbf"
},
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"scale_correction": "point",
"scale_correction_crs": "EPSG:25833",
"elevation_crs": "EPSG:25833",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/no/nhm-no_dtm_E71500-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E71500-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E71500-N6724000_1m.tif",
"data/cache/no/nhm-no_dtm_E72000-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E72000-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E72500-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E72500-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E72500-N6724000_1m.tif",
"data/cache/no/nhm-no_dtm_E73000-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E73000-N6724000_1m.tif",
"data/cache/no/nhm-no_dtm_E73500-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E73500-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E73500-N6724000_1m.tif",
"data/cache/no/nhm-no_dtm_E74000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E74000-N6722500_1m.tif",
"data/cache/no/nhm-no_dtm_E74000-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E74000-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E74500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E74500-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E74500-N6722500_1m.tif",
"data/cache/no/nhm-no_dtm_E74500-N6723000_1m.tif",
"data/cache/no/nhm-no_dtm_E74500-N6723500_1m.tif",
"data/cache/no/nhm-no_dtm_E75000-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E75000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E75500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E75500-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E76000-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E76000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E76500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E76500-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E77000-N6721000_1m.tif",
"data/cache/no/nhm-no_dtm_E77000-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E77000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E77500-N6721000_1m.tif",
"data/cache/no/nhm-no_dtm_E77500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E77500-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E78000-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E78000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E78500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E78500-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E79000-N6721000_1m.tif",
"data/cache/no/nhm-no_dtm_E79000-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E79000-N6722000_1m.tif",
"data/cache/no/nhm-no_dtm_E79500-N6720500_1m.tif",
"data/cache/no/nhm-no_dtm_E79500-N6721000_1m.tif",
"data/cache/no/nhm-no_dtm_E79500-N6721500_1m.tif",
"data/cache/no/nhm-no_dtm_E80000-N6720000_1m.tif",
"data/cache/no/nhm-no_dtm_E80000-N6720500_1m.tif",
"data/cache/no/nhm-no_dtm_E80500-N6718500_1m.tif",
"data/cache/no/nhm-no_dtm_E80500-N6719000_1m.tif",
"data/cache/no/nhm-no_dtm_E80500-N6719500_1m.tif",
"data/cache/no/nhm-no_dtm_E80500-N6720000_1m.tif",
"data/cache/no/nhm-no_dtm_E80500-N6720500_1m.tif",
"data/cache/no/nhm-no_dtm_E81000-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E81000-N6718500_1m.tif",
"data/cache/no/nhm-no_dtm_E81000-N6719000_1m.tif",
"data/cache/no/nhm-no_dtm_E81000-N6719500_1m.tif",
"data/cache/no/nhm-no_dtm_E81000-N6720000_1m.tif",
"data/cache/no/nhm-no_dtm_E81500-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E81500-N6718500_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6718500_1m.tif",
"data/cache/no/nhm-no_dtm_E82500-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E82500-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E83000-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E83000-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E83500-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E83500-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E84000-N6717000_1m.tif",
"data/cache/no/nhm-no_dtm_E84000-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E84000-N6718000_1m.tif",
"data/cache/no/nhm-no_dtm_E84500-N6716500_1m.tif",
"data/cache/no/nhm-no_dtm_E84500-N6717000_1m.tif",
"data/cache/no/nhm-no_dtm_E84500-N6717500_1m.tif",
"data/cache/no/nhm-no_dtm_E85000-N6716500_1m.tif",
"data/cache/no/nhm-no_dtm_E85000-N6717000_1m.tif",
"data/cache/no/nhm-no_dtm_E85500-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E85500-N6716500_1m.tif",
"data/cache/no/nhm-no_dtm_E85500-N6717000_1m.tif",
"data/cache/no/nhm-no_dtm_E86000-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E86000-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E86000-N6716500_1m.tif",
"data/cache/no/nhm-no_dtm_E86500-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E86500-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E87000-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E87000-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E87500-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E87500-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E88000-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E88000-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E88500-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E88500-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E89000-N6715500_1m.tif",
"data/cache/no/nhm-no_dtm_E89000-N6716000_1m.tif",
"data/cache/no/nhm-no_dtm_E89500-N6716000_1m.tif"
],
"calculated_at": "2026-10-03T23:45:09+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/no-b03-block-batch-no-b03.osm.pbf",
"osm_snapshot": "",
"run_id": "no-b03",
"elevation_provider": "Kartverket NHM DTM 1 m (laser-covered ground only)",
"elevation_licence": "CC BY 4.0 \u2014 \u00a9 Kartverket (https://www.kartverket.no/api-og-data/vilkar-for-bruk)",
"elevation_dataset": "Nasjonal h\u00f8ydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured",
"elevation_vertical_datum": "NN2000",
"elevation_tile_ids": [
"E71500-N6723000",
"E71500-N6723500",
"E71500-N6724000",
"E72000-N6723000",
"E72000-N6723500",
"E72500-N6723000",
"E72500-N6723500",
"E72500-N6724000",
"E73000-N6723500",
"E73000-N6724000",
"E73500-N6723000",
"E73500-N6723500",
"E73500-N6724000",
"E74000-N6722000",
"E74000-N6722500",
"E74000-N6723000",
"E74000-N6723500",
"E74500-N6721500",
"E74500-N6722000",
"E74500-N6722500",
"E74500-N6723000",
"E74500-N6723500",
"E75000-N6721500",
"E75000-N6722000",
"E75500-N6721500",
"E75500-N6722000",
"E76000-N6721500",
"E76000-N6722000",
"E76500-N6721500",
"E76500-N6722000",
"E77000-N6721000",
"E77000-N6721500",
"E77000-N6722000",
"E77500-N6721000",
"E77500-N6721500",
"E77500-N6722000",
"E78000-N6721500",
"E78000-N6722000",
"E78500-N6721500",
"E78500-N6722000",
"E79000-N6721000",
"E79000-N6721500",
"E79000-N6722000",
"E79500-N6720500",
"E79500-N6721000",
"E79500-N6721500",
"E80000-N6720000",
"E80000-N6720500",
"E80500-N6718500",
"E80500-N6719000",
"E80500-N6719500",
"E80500-N6720000",
"E80500-N6720500",
"E81000-N6718000",
"E81000-N6718500",
"E81000-N6719000",
"E81000-N6719500",
"E81000-N6720000",
"E81500-N6718000",
"E81500-N6718500",
"E82000-N6717500",
"E82000-N6718000",
"E82000-N6718500",
"E82500-N6717500",
"E82500-N6718000",
"E83000-N6717500",
"E83000-N6718000",
"E83500-N6717500",
"E83500-N6718000",
"E84000-N6717000",
"E84000-N6717500",
"E84000-N6718000",
"E84500-N6716500",
"E84500-N6717000",
"E84500-N6717500",
"E85000-N6716500",
"E85000-N6717000",
"E85500-N6716000",
"E85500-N6716500",
"E85500-N6717000",
"E86000-N6715500",
"E86000-N6716000",
"E86000-N6716500",
"E86500-N6715500",
"E86500-N6716000",
"E87000-N6715500",
"E87000-N6716000",
"E87500-N6715500",
"E87500-N6716000",
"E88000-N6715500",
"E88000-N6716000",
"E88500-N6715500",
"E88500-N6716000",
"E89000-N6715500",
"E89000-N6716000",
"E89500-N6716000"
],
"elevation_blocks": [
"nhm-dtm-1m"
],
"nhm_laser_projects": [
{
"name": "Eidfjord 10pkt 2025",
"year": 2025,
"last_flight_date": "2025-08-17",
"points_per_m2": 10,
"resolution_m": 0.25,
"season": ""
},
{
"last_flight_date": "2015-10-17",
"name": "Eidfjord_Ulvik_Granvin 2014",
"points_per_m2": 2,
"resolution_m": 0.5,
"season": "",
"year": 2014
},
{
"name": "Hol Eidfjord 2012",
"year": 2012,
"last_flight_date": "2013-07-10",
"points_per_m2": 1,
"resolution_m": 1,
"season": ""
},
{
"last_flight_date": "2008-01-01",
"name": "Hordaland 2008",
"points_per_m2": 2,
"resolution_m": 0.5,
"season": "season-unknown",
"year": 2008
},
{
"last_flight_date": "2009-01-01",
"name": "Hordaland indre 2009",
"points_per_m2": 2,
"resolution_m": 0.5,
"season": "season-unknown",
"year": 2009
},
{
"name": "NDH Finse 4pkt 2019",
"year": 2019,
"last_flight_date": "2019-01-01",
"points_per_m2": 4,
"resolution_m": 0.25,
"season": "season-unknown"
},
{
"name": "NDH H\u00e5rteigen 4pkt 2019",
"year": 2019,
"last_flight_date": "2019-01-01",
"points_per_m2": 4,
"resolution_m": 0.25,
"season": "season-unknown"
},
{
"name": "NDH Ullensvang-Eidfjord 2pkt 2020",
"year": 2020,
"last_flight_date": "2020-09-01",
"points_per_m2": 2,
"resolution_m": 0.5,
"season": ""
}
],
"nhm_last_flight_date": "2025-08-17",
"nhm_flight_season_unknown": [
"Hordaland 2008",
"Hordaland indre 2009",
"NDH Finse 4pkt 2019",
"NDH H\u00e5rteigen 4pkt 2019"
],
"nhm_retrieved_at": "2026-10-03T23:44:54Z",
"nhm_note": "laser projects overlapping the route's cells; the mosaic draws on them by its own priority and which project supplied which pixel is not recorded",
"climb_origin": "named-pass",
"named_pass": "Hardangervidda",
"seam_filled_samples": {
"count": 0,
"distances_m": []
},
"seam_filled_in_maximum": false,
"structure_own_ways": 25,
"tunnel_check": "osm tunnel=* ways on 25 own way(s)",
"tunnel_ranges_m": [
[
0.0,
1900.4
],
[
2182.3,
3034.3
],
[
3281.2,
3593.9
]
],
"underground_fraction": 0.1221,
"structure_mask_ranges_m": [
[
0.0,
1900.4
],
[
2182.3,
2806.1
],
[
3281.2,
3593.9
],
[
5159.3,
5183.1
],
[
12733.1,
12756.6
],
[
4392.1,
4434.0
],
[
2806.1,
3034.3
],
[
17615.9,
17655.2
],
[
15017.6,
15047.6
]
],
"mask_basin_extension_m": 1.0,
"carriageway": {
"stations": 1012,
"stations_resolved": 1012,
"width_median_m": 7.75,
"width_p10_m": 6.25,
"width_min_m": 0.5,
"width_max_m": 12.0,
"bounded_share": 0.2,
"unbounded_share": 0.8,
"confidence_median": 0.0,
"width_median_bounded_m": 7.0,
"window_m": [
13748.0,
13773.0
],
"width_at_max25_m": 11.5,
"window_stations": 7,
"single_track": false,
"single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
"status": "ok",
"source": "dtm",
"station_m": 25.0,
"window_station_m": 5.0,
"halfwidth_m": 6.0,
"step_m": 0.25,
"level_tol_m": 0.12,
"break_min_m": 0.3,
"stations_failed": 0,
"hedge_to_hedge": {
"stations": 1012,
"stations_resolved": 1012,
"width_median_m": 10.75,
"width_p10_m": 6.03,
"width_min_m": 0.5,
"width_max_m": 12.0,
"bounded_share": 0.329,
"unbounded_share": 0.671,
"confidence_median": 0.0,
"width_median_bounded_m": 9.0,
"window_m": [
13748.0,
13773.0
],
"width_at_max25_m": 12.0,
"window_stations": 7,
"status": "ok",
"source": "dsm",
"station_m": 25.0,
"window_station_m": 5.0,
"halfwidth_m": 6.0,
"step_m": 0.25,
"level_tol_m": 0.5,
"break_min_m": 0.3,
"stations_failed": 0
}
},
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
