LIVING SURVEY — measurements are reviewed continuously as new data and local evidence arrive. Seen a sign, a gate, or a better name? Submit an update no account needed · photos welcome via GitHub

Gaularfjellet from Hatlestad

23237.5 m · net rise 593.4 m · total ascent 756.8 m · overall 2.6% · evidence quality B (good) · Sunnfjord · Vestland

Shape: sustained — 37% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 28 m.

Not yet matched against documented climbs — the measurement stands on its own.

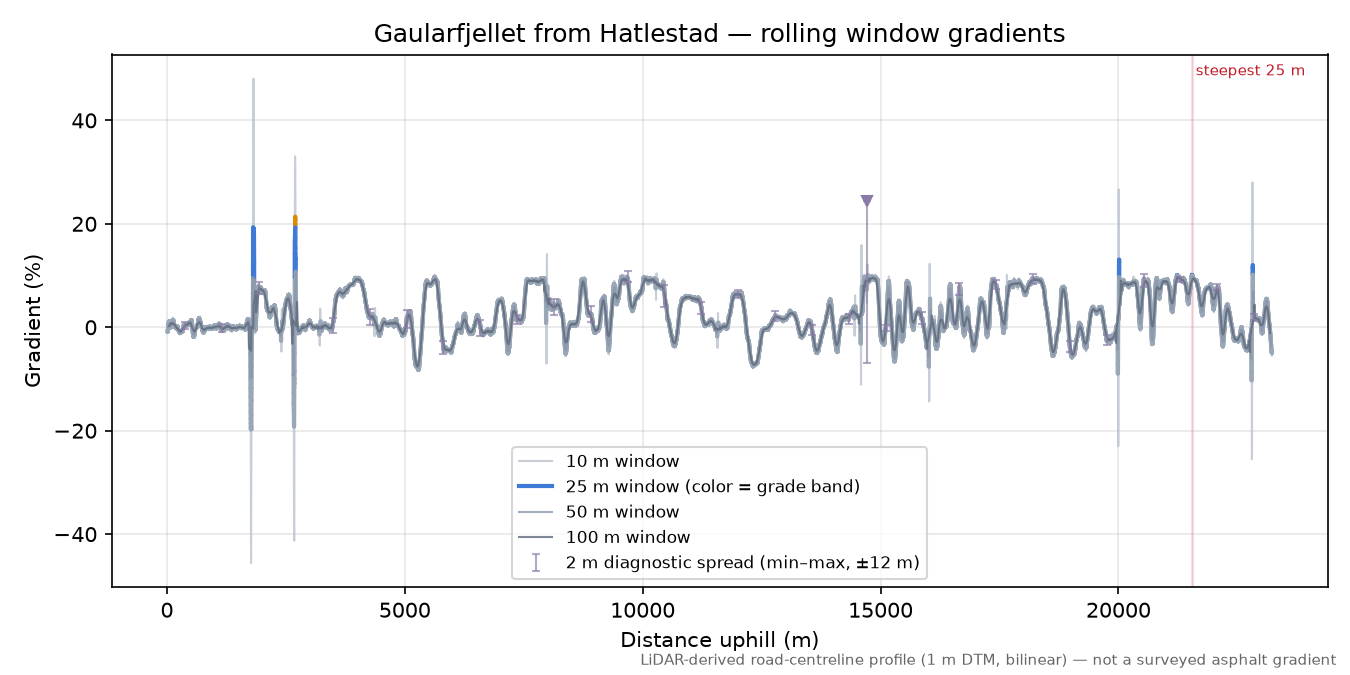

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈24%	14718–14720 m	under overhead cover terrain reads 98.8% at 1821–1823 m across a structure — excluded
3 m (diagnostic)	≈21%	17650–17653 m	under overhead cover terrain reads 95.2% at 1820–1823 m across a structure — excluded
5 m	≈16%	14718–14723 m	under overhead cover terrain reads 79.1% at 1818–1823 m across a structure — excluded
10 m	≈12%	14718–14728 m	under overhead cover terrain reads 48.1% at 1814–1824 m across a structure — excluded
20 m	≈10.5%	14718–14738 m	under overhead cover terrain reads 26.4% at 2684–2704 m across a structure — excluded
25 m	≈10.1%	21535–21560 m	under overhead cover terrain reads 21.4% at 2684–2709 m across a structure — excluded
50 m	≈9.9%	21227–21277 m	under overhead cover terrain reads 10.8% at 2684–2734 m across a structure — excluded
100 m	9.6%	21219–21319 m

descends at end Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved throughout, according to NVDB, Norway's National Road Database.

Access: Ranked 2026-10-05 (D27, road authority): NVDB carries 100% of the route as public road (0% restricted), which answers the OSM audit question (barrier gate without an access tag). A barrier gate without an access tag sits on the route; gates on public roads are usually seasonal — check on the ground.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.

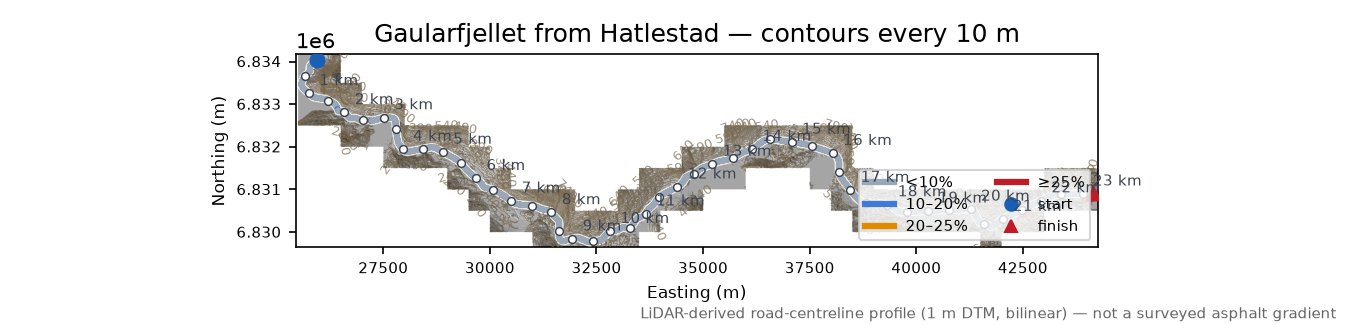

Gaularfjellet from Hatlestad LiDAR hillshade map with contours

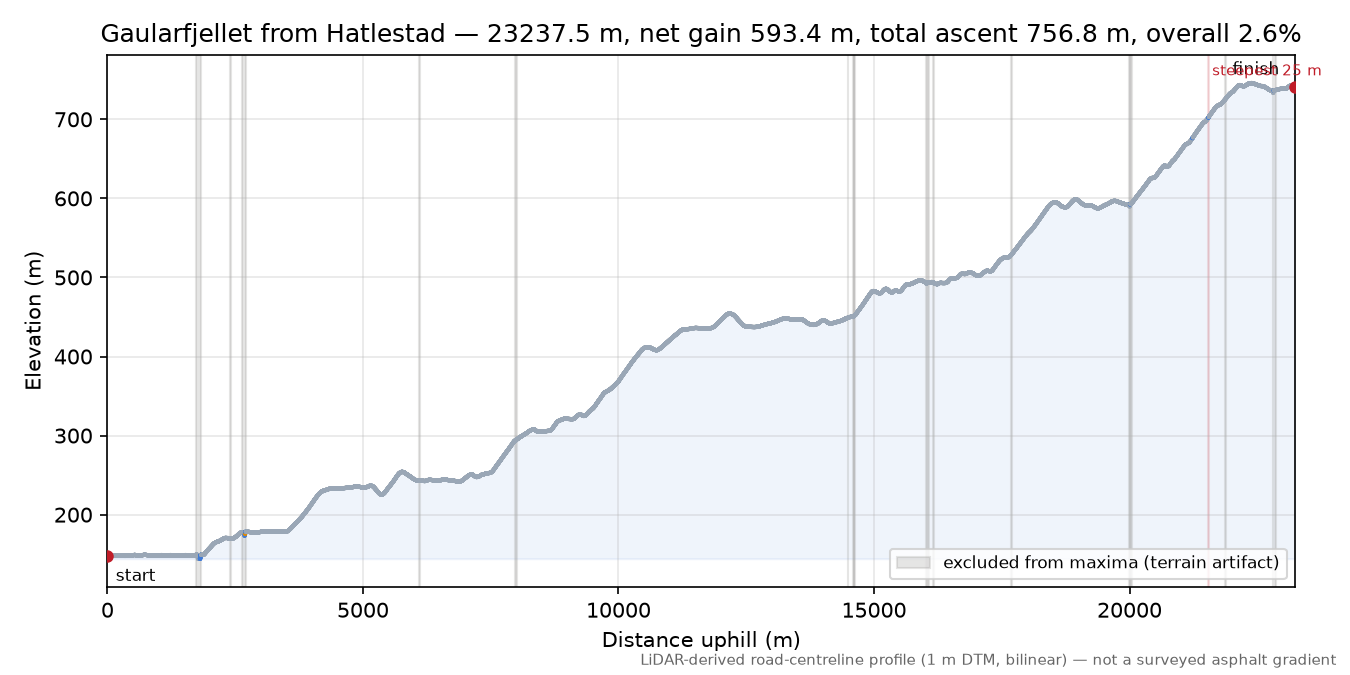

Profile

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	Kartverket NHM DTM 1 m (laser-covered ground only) — Nasjonal høydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured
Resolution / CRS	1.0 m grid, EPSG:25833; sampled every 1.0 m, bilinear interpolation
Tiles	E25500-N6832500, E25500-N6833000, E25500-N6833500, E25500-N6834000, E26000-N6832500, E26000-N6833000, E26000-N6833500, E26000-N6834000, E26500-N6832000, E26500-N6832500, E26500-N6833000, E27000-N6832000, E27000-N6832500, E27500-N6831500, E27500-N6832000, E27500-N6832500, E28000-N6831500, E28000-N6832000, E28500-N6831500, E28500-N6832000, E29000-N6831000, E29000-N6831500, E29000-N6832000, E29500-N6830500, E29500-N6831000, E29500-N6831500, E30000-N6830000, E30000-N6830500, E30000-N6831000, E30500-N6830000, E30500-N6830500, E31000-N6829500, E31000-N6830000, E31000-N6830500, E31500-N6829500, E31500-N6830000, E31500-N6830500, E32000-N6829500, E32000-N6830000, E32500-N6829500, E32500-N6830000, E33000-N6829500, E33000-N6830000, E33000-N6830500, E33500-N6830000, E33500-N6830500, E33500-N6831000, E34000-N6830500, E34000-N6831000, E34500-N6830500, E34500-N6831000, E34500-N6831500, E35000-N6831000, E35000-N6831500, E35500-N6831000, E35500-N6831500, E35500-N6832000, E36000-N6831500, E36000-N6832000, E36500-N6831500, E36500-N6832000, E37000-N6831500, E37000-N6832000, E37500-N6831000, E37500-N6831500, E37500-N6832000, E38000-N6830500, E38000-N6831000, E38000-N6831500, E38000-N6832000, E38500-N6830000, E38500-N6830500, E38500-N6831000, E39000-N6830000, E39000-N6830500, E39500-N6830000, E39500-N6830500, E40000-N6830000, E40000-N6830500, E40500-N6830000, E40500-N6830500, E41000-N6830000, E41000-N6830500, E41500-N6829500, E41500-N6830000, E41500-N6830500, E42000-N6830000, E42000-N6830500, E42500-N6830000, E42500-N6830500, E43000-N6830500, E43000-N6831000, E43500-N6830500, E43500-N6831000, E44000-N6830500, E44000-N6831000
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality B; caveated windows: structure excluded, structure excluded min, texture excluded, texture excluded min
Analysis	OCL 0.1.0, analysis 0.1.0, run no-b06, calculated 2026-10-03

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "f734ae6b8374a5620775f88f78087f4b3f1875d8",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.2",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.2",
    "proj": "9.8.1",
    "run_id": "no-b06",
    "road_pbf": "no-b06-block-batch-no-b06.osm.pbf",
    "region_key": "norway",
    "crs": "EPSG:25833",
    "elevation_provider_key": "nhm-no",
    "tile_index": "nhm-window",
    "authority": "nvdb",
    "registry_pbf": "norway-2026-10-01.osm.pbf"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "scale_correction": "point",
  "scale_correction_crs": "EPSG:25833",
  "elevation_crs": "EPSG:25833",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/no/nhm-no_dtm_E25500-N6832500_1m.tif",
    "data/cache/no/nhm-no_dtm_E25500-N6833000_1m.tif",
    "data/cache/no/nhm-no_dtm_E25500-N6833500_1m.tif",
    "data/cache/no/nhm-no_dtm_E25500-N6834000_1m.tif",
    "data/cache/no/nhm-no_dtm_E26000-N6832500_1m.tif",
    "data/cache/no/nhm-no_dtm_E26000-N6833000_1m.tif",
    "data/cache/no/nhm-no_dtm_E26000-N6833500_1m.tif",
    "data/cache/no/nhm-no_dtm_E26000-N6834000_1m.tif",
    "data/cache/no/nhm-no_dtm_E26500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E26500-N6832500_1m.tif",
    "data/cache/no/nhm-no_dtm_E26500-N6833000_1m.tif",
    "data/cache/no/nhm-no_dtm_E27000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E27000-N6832500_1m.tif",
    "data/cache/no/nhm-no_dtm_E27500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E27500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E27500-N6832500_1m.tif",
    "data/cache/no/nhm-no_dtm_E28000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E28000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E28500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E28500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E29000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E29000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E29000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E29500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E29500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E29500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E30000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E30000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E30000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E30500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E30500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E31000-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E31000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E31000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E31500-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E31500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E31500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E32000-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E32000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E32500-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E32500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E33000-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E33000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E33000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E33500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E33500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E33500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E34000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E34000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E34500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E34500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E34500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E35000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E35000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E35500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E35500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E35500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E36500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E37500-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6831500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38000-N6832000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E38500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E39500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E40000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E40000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E40500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E40500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E41000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E41000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E41500-N6829500_1m.tif",
    "data/cache/no/nhm-no_dtm_E41500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E41500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E42000-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E42000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E42500-N6830000_1m.tif",
    "data/cache/no/nhm-no_dtm_E42500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E43000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E43000-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E43500-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E43500-N6831000_1m.tif",
    "data/cache/no/nhm-no_dtm_E44000-N6830500_1m.tif",
    "data/cache/no/nhm-no_dtm_E44000-N6831000_1m.tif"
  ],
  "calculated_at": "2026-10-03T19:07:18+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/no-b06-block-batch-no-b06.osm.pbf",
  "osm_snapshot": "",
  "run_id": "no-b06",
  "elevation_provider": "Kartverket NHM DTM 1 m (laser-covered ground only)",
  "elevation_licence": "CC BY 4.0 \u2014 \u00a9 Kartverket (https://www.kartverket.no/api-og-data/vilkar-for-bruk)",
  "elevation_dataset": "Nasjonal h\u00f8ydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured",
  "elevation_vertical_datum": "NN2000",
  "elevation_tile_ids": [
    "E25500-N6832500",
    "E25500-N6833000",
    "E25500-N6833500",
    "E25500-N6834000",
    "E26000-N6832500",
    "E26000-N6833000",
    "E26000-N6833500",
    "E26000-N6834000",
    "E26500-N6832000",
    "E26500-N6832500",
    "E26500-N6833000",
    "E27000-N6832000",
    "E27000-N6832500",
    "E27500-N6831500",
    "E27500-N6832000",
    "E27500-N6832500",
    "E28000-N6831500",
    "E28000-N6832000",
    "E28500-N6831500",
    "E28500-N6832000",
    "E29000-N6831000",
    "E29000-N6831500",
    "E29000-N6832000",
    "E29500-N6830500",
    "E29500-N6831000",
    "E29500-N6831500",
    "E30000-N6830000",
    "E30000-N6830500",
    "E30000-N6831000",
    "E30500-N6830000",
    "E30500-N6830500",
    "E31000-N6829500",
    "E31000-N6830000",
    "E31000-N6830500",
    "E31500-N6829500",
    "E31500-N6830000",
    "E31500-N6830500",
    "E32000-N6829500",
    "E32000-N6830000",
    "E32500-N6829500",
    "E32500-N6830000",
    "E33000-N6829500",
    "E33000-N6830000",
    "E33000-N6830500",
    "E33500-N6830000",
    "E33500-N6830500",
    "E33500-N6831000",
    "E34000-N6830500",
    "E34000-N6831000",
    "E34500-N6830500",
    "E34500-N6831000",
    "E34500-N6831500",
    "E35000-N6831000",
    "E35000-N6831500",
    "E35500-N6831000",
    "E35500-N6831500",
    "E35500-N6832000",
    "E36000-N6831500",
    "E36000-N6832000",
    "E36500-N6831500",
    "E36500-N6832000",
    "E37000-N6831500",
    "E37000-N6832000",
    "E37500-N6831000",
    "E37500-N6831500",
    "E37500-N6832000",
    "E38000-N6830500",
    "E38000-N6831000",
    "E38000-N6831500",
    "E38000-N6832000",
    "E38500-N6830000",
    "E38500-N6830500",
    "E38500-N6831000",
    "E39000-N6830000",
    "E39000-N6830500",
    "E39500-N6830000",
    "E39500-N6830500",
    "E40000-N6830000",
    "E40000-N6830500",
    "E40500-N6830000",
    "E40500-N6830500",
    "E41000-N6830000",
    "E41000-N6830500",
    "E41500-N6829500",
    "E41500-N6830000",
    "E41500-N6830500",
    "E42000-N6830000",
    "E42000-N6830500",
    "E42500-N6830000",
    "E42500-N6830500",
    "E43000-N6830500",
    "E43000-N6831000",
    "E43500-N6830500",
    "E43500-N6831000",
    "E44000-N6830500",
    "E44000-N6831000"
  ],
  "elevation_blocks": [
    "nhm-dtm-1m"
  ],
  "nhm_laser_projects": [
    {
      "last_flight_date": "2011-08-10",
      "name": "Balestrand 2011",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "",
      "year": 2011
    },
    {
      "last_flight_date": "2017-09-16",
      "name": "NDH Balestrand-Leikanger-Sogndal-Fj\u00e6rland 5pkt 2017",
      "points_per_m2": 5,
      "resolution_m": 0.25,
      "season": "",
      "year": 2017
    },
    {
      "last_flight_date": "2018-05-22",
      "name": "NDH Gaular-H\u00f8yanger 5pkt 2017",
      "points_per_m2": 5,
      "resolution_m": 0.25,
      "season": "",
      "year": 2017
    },
    {
      "last_flight_date": "2019-10-06",
      "name": "NDH Gaular-H\u00f8yanger-Balestrand 2pkt 2019",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "",
      "year": 2019
    },
    {
      "last_flight_date": "2020-08-30",
      "name": "NDH Gaular-H\u00f8yanger-Balestrand 2pkt 2020",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "",
      "year": 2020
    },
    {
      "last_flight_date": "2016-10-11",
      "name": "NDH Leikanger-Sogndal 2pkt 2016",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "",
      "year": 2016
    },
    {
      "last_flight_date": "2009-01-01",
      "name": "Sogn og Fjordane 2009",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "season-unknown",
      "year": 2009
    }
  ],
  "nhm_last_flight_date": "2020-08-30",
  "nhm_flight_season_unknown": [
    "Sogn og Fjordane 2009"
  ],
  "nhm_retrieved_at": "2026-10-03T15:38:12Z",
  "nhm_note": "laser projects overlapping the route's cells; the mosaic draws on them by its own priority and which project supplied which pixel is not recorded",
  "climb_origin": "named-pass",
  "named_pass": "Gaularfjellet",
  "seam_filled_samples": {
    "count": 0,
    "distances_m": []
  },
  "seam_filled_in_maximum": false,
  "structure_own_ways": 36,
  "tunnel_check": "osm tunnel=* ways on 36 own way(s)",
  "tunnel_ranges_m": [],
  "underground_fraction": 0.0,
  "structure_mask_ranges_m": [
    [
      2676.3,
      2702.3
    ],
    [
      1761.4,
      1829.4
    ],
    [
      21878.6,
      21892.9
    ],
    [
      6102.5,
      6107.8
    ],
    [
      20037.4,
      20052.2
    ],
    [
      14489.1,
      14495.0
    ],
    [
      14624.0,
      14629.8
    ],
    [
      7995.9,
      8002.6
    ],
    [
      2412.9,
      2418.8
    ],
    [
      22855.8,
      22865.7
    ],
    [
      16165.8,
      16173.0
    ],
    [
      17686.1,
      17691.6
    ],
    [
      16060.8,
      16066.7
    ]
  ],
  "mask_basin_extension_m": 56.0,
  "carriageway": {
    "stations": 937,
    "stations_resolved": 937,
    "width_median_m": 6.0,
    "width_p10_m": 4.75,
    "width_min_m": 1.5,
    "width_max_m": 12.0,
    "bounded_share": 0.268,
    "unbounded_share": 0.732,
    "confidence_median": 0.0,
    "width_median_bounded_m": 6.0,
    "window_m": [
      21535.0,
      21560.0
    ],
    "width_at_max25_m": 5.0,
    "window_stations": 6,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 937,
      "stations_resolved": 937,
      "width_median_m": 9.0,
      "width_p10_m": 6.5,
      "width_min_m": 1.0,
      "width_max_m": 12.0,
      "bounded_share": 0.57,
      "unbounded_share": 0.43,
      "confidence_median": 0.984,
      "width_median_bounded_m": 8.0,
      "window_m": [
        21535.0,
        21560.0
      ],
      "width_at_max25_m": 7.25,
      "window_stations": 6,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
