1087.3 m · net rise 119.3 m · overall 11.0% · evidence quality B (good) · Molde · Møre og Romsdal

Shape: sustained — 31% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 233 m.

Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the NVDB road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.

Gradient ladder what do windows mean?

may start earlier Extent detection suggests reviewing where this climb starts/ends.

One-way street: traffic runs downhill here, so the ascent is against the traffic flow for 132 m of this route (OpenStreetMap oneway tag). Published and ranked as measured — riding against a one-way may be restricted or illegal locally; check signage.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved (10% unpaved), according to NVDB, Norway's National Road Database: paved for the first 996 m; unpaved from 996 m to the top. The steepest 25 m lies on the paved part.

Access: Ranked 2026-10-05 (D27, road authority): NVDB carries 100% of the route as public road (0% restricted), which answers the OSM audit question (barrier gate without an access tag). A barrier gate without an access tag sits on the route; gates on public roads are usually seasonal — check on the ground.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

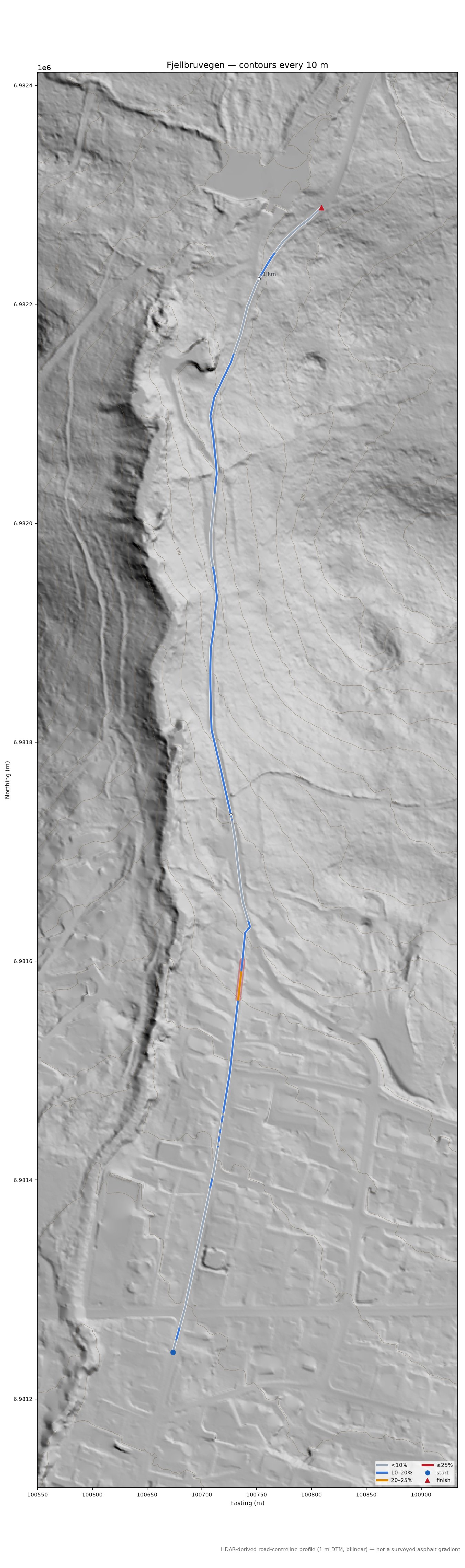

Load the interactive map

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.

Topo (contours) Vector   © OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

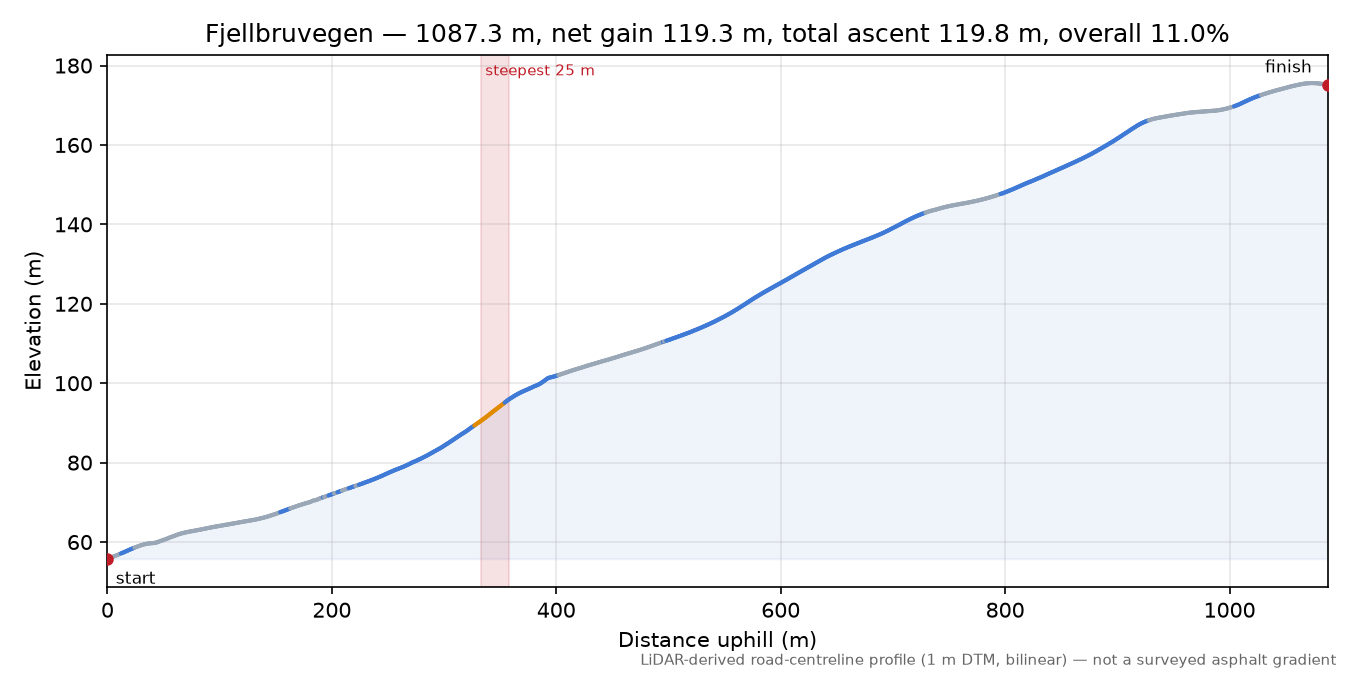

Profile

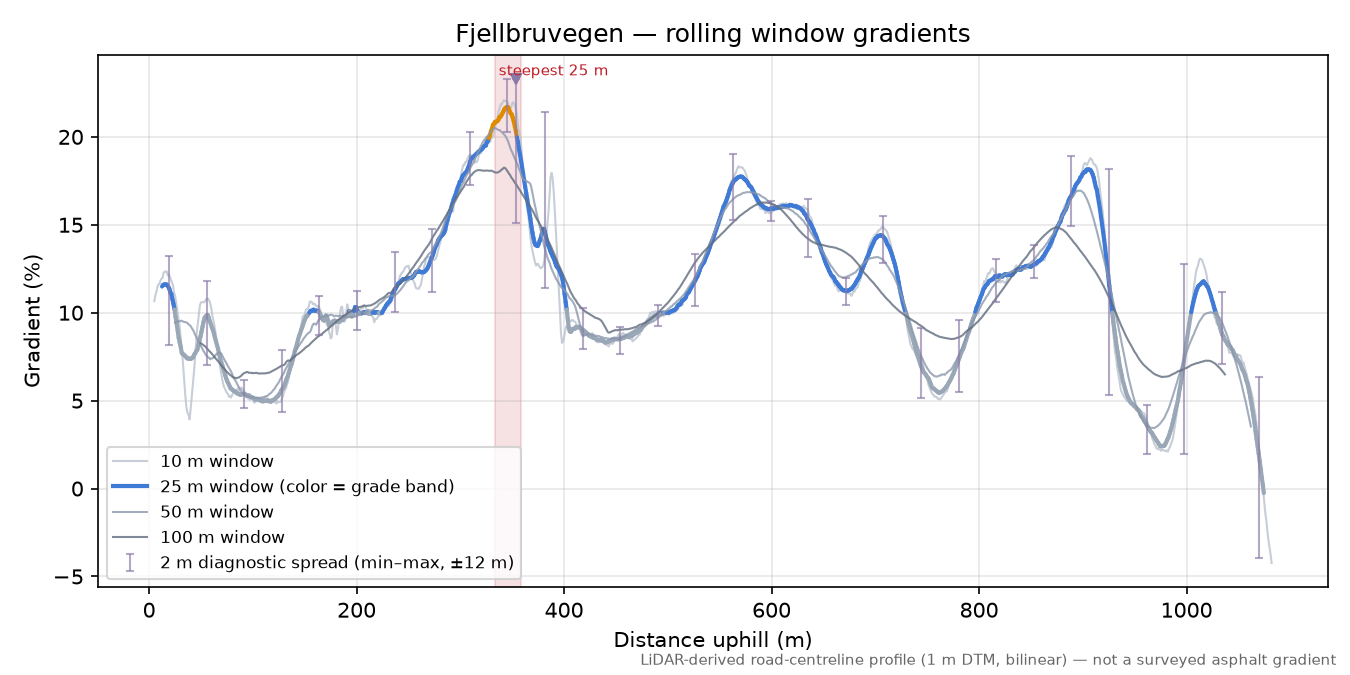

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).



Measurement card

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "368c60c29e47d4b421849c953b172a04f7694146",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.2",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.2",
    "proj": "9.8.1",
    "run_id": "no-b08",
    "road_pbf": "no-b08-block-batch-no-b08.osm.pbf",
    "region_key": "norway",
    "crs": "EPSG:25833",
    "elevation_provider_key": "nhm-no",
    "tile_index": "nhm-window",
    "authority": "nvdb",
    "registry_pbf": "norway-2026-10-01.osm.pbf"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "scale_correction": "point",
  "scale_correction_crs": "EPSG:25833",
  "elevation_crs": "EPSG:25833",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/no/nhm-no_dtm_E100500-N6981000_1m.tif",
    "data/cache/no/nhm-no_dtm_E100500-N6981500_1m.tif",
    "data/cache/no/nhm-no_dtm_E100500-N6982000_1m.tif"
  ],
  "calculated_at": "2026-10-04T01:25:35+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/no-b08-block-batch-no-b08.osm.pbf",
  "osm_snapshot": "",
  "run_id": "no-b08",
  "elevation_provider": "Kartverket NHM DTM 1 m (laser-covered ground only)",
  "elevation_licence": "CC BY 4.0 \u2014 \u00a9 Kartverket (https://www.kartverket.no/api-og-data/vilkar-for-bruk)",
  "elevation_dataset": "Nasjonal h\u00f8ydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured",
  "elevation_vertical_datum": "NN2000",
  "elevation_tile_ids": [
    "E100500-N6981000",
    "E100500-N6981500",
    "E100500-N6982000"
  ],
  "elevation_blocks": [
    "nhm-dtm-1m"
  ],
  "nhm_laser_projects": [
    {
      "last_flight_date": "2007-01-01",
      "name": "Molde 2007",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "season-unknown",
      "year": 2007
    },
    {
      "last_flight_date": "2014-11-07",
      "name": "Molde Aukra Fr\u00e6na og Rauma 2014",
      "points_per_m2": 2,
      "resolution_m": 0.5,
      "season": "snow-season",
      "year": 2014
    },
    {
      "last_flight_date": "2017-07-21",
      "name": "NDH Aukra-Fr\u00e6na-Molde 5pkt 2017",
      "points_per_m2": 5,
      "resolution_m": 0.25,
      "season": "",
      "year": 2017
    }
  ],
  "nhm_last_flight_date": "2017-07-21",
  "nhm_snow_season_flights": [
    "Molde Aukra Fr\u00e6na og Rauma 2014"
  ],
  "nhm_flight_season_unknown": [
    "Molde 2007"
  ],
  "nhm_retrieved_at": "2026-10-03T22:39:33Z",
  "nhm_note": "laser projects overlapping the route's cells; the mosaic draws on them by its own priority and which project supplied which pixel is not recorded",
  "climb_origin": "discovered",
  "seam_filled_samples": {
    "count": 0,
    "distances_m": []
  },
  "seam_filled_in_maximum": false,
  "structure_own_ways": 7,
  "tunnel_check": "osm tunnel=* ways on 7 own way(s)",
  "tunnel_ranges_m": [],
  "underground_fraction": 0.0,
  "carriageway": {
    "stations": 50,
    "stations_resolved": 50,
    "width_median_m": 5.88,
    "width_p10_m": 4.22,
    "width_min_m": 3.75,
    "width_max_m": 12.0,
    "bounded_share": 0.3,
    "unbounded_share": 0.7,
    "confidence_median": 0.0,
    "width_median_bounded_m": 5.25,
    "window_m": [
      333.0,
      358.0
    ],
    "width_at_max25_m": 4.5,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 50,
      "stations_resolved": 50,
      "width_median_m": 7.25,
      "width_p10_m": 1.95,
      "width_min_m": 1.0,
      "width_max_m": 12.0,
      "bounded_share": 0.78,
      "unbounded_share": 0.22,
      "confidence_median": 1.0,
      "width_median_bounded_m": 5.0,
      "window_m": [
        333.0,
        358.0
      ],
      "width_at_max25_m": 2.0,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
