2021.4 m · net rise 271.2 m · total ascent 276.6 m · overall 13.4% · evidence quality B (good) · Stryn · Vestland
Shape: sustained — 28% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 507 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the NVDB road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
° The name is provisional: this climb is not yet matched to a documented name, so it was named from nearby map places. There is no evidence of local usage — (birth-named at adoption (nearest OSM village/hamlet/locality node ('Bødalssætra'))). Corrections welcome.
≈ Overhead cover (tree canopy or structures) spans 11% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

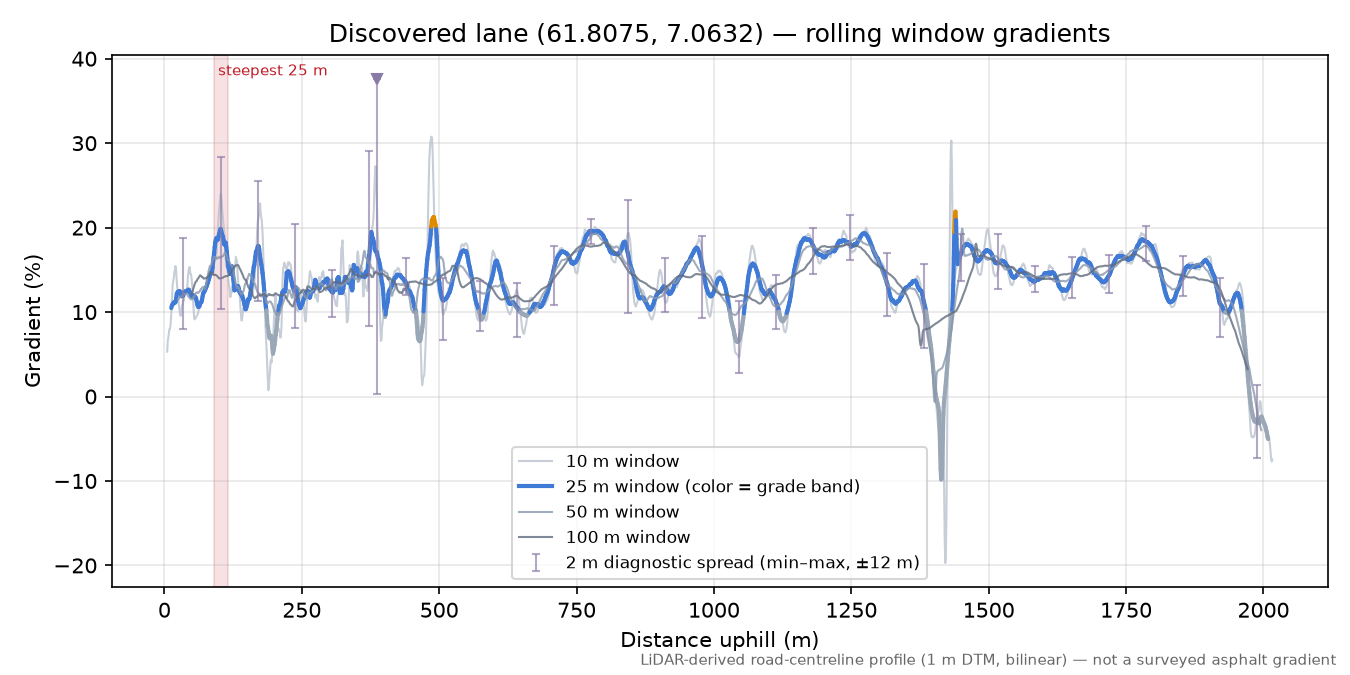

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈38% | 386–388 m | under overhead cover terrain reads 74.4% at 1428–1430 m across a structure — excluded |
| 3 m (diagnostic) | ≈35% | 385–388 m | under overhead cover terrain reads 63.5% at 1427–1430 m across a structure — excluded |
| 5 m | ≈32% | 384–389 m | under overhead cover terrain reads 47.4% at 1427–1432 m across a structure — excluded |
| 10 m | ≈27% | 379–389 m | under overhead cover terrain reads 30.8% at 481–491 m across a structure — excluded |
| 20 m | ≈21.3% | 369–389 m | under overhead cover terrain reads 23.5% at 477–497 m across a structure — excluded |
| 25 m | ≈19.9% | 90–115 m | under overhead cover terrain reads 21.9% at 1427–1452 m across a structure — excluded |
| 50 m | ≈19.3% | 760–810 m | under overhead cover terrain reads 19.9% at 1427–1477 m across a structure — excluded |
| 100 m | 18.3% | 753–853 m |
may start earlierdescends at end Extent detection suggests reviewing where this climb starts/ends.
Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: unpaved throughout, according to NVDB, Norway's National Road Database.
Access: Ranked 2026-10-05 (D27, road authority, toll exception): NVDB classes 98% of the route as restricted local access, and 100% of it is a toll road — the restriction is the toll, not a closure. Toll road: motor vehicles pay; bicycle charge unknown unless stated. The network answers the OSM audit question, unnamed service way.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb

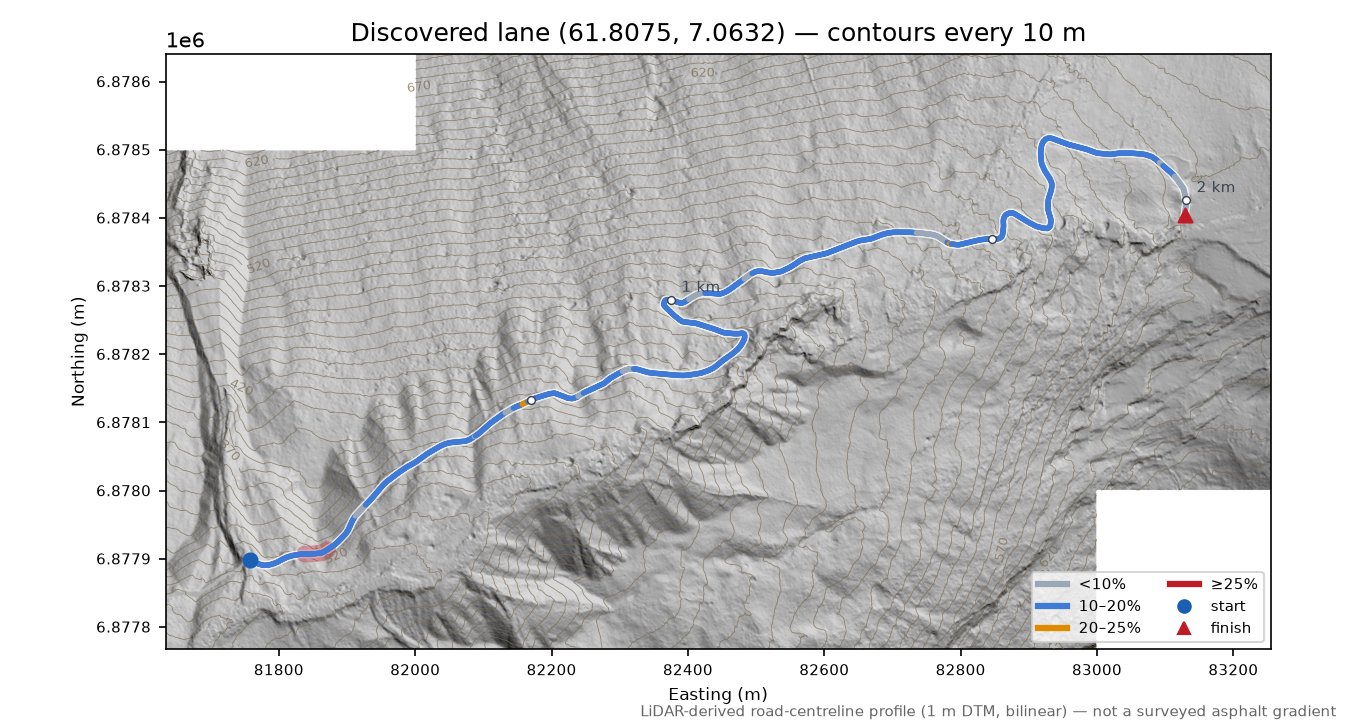

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

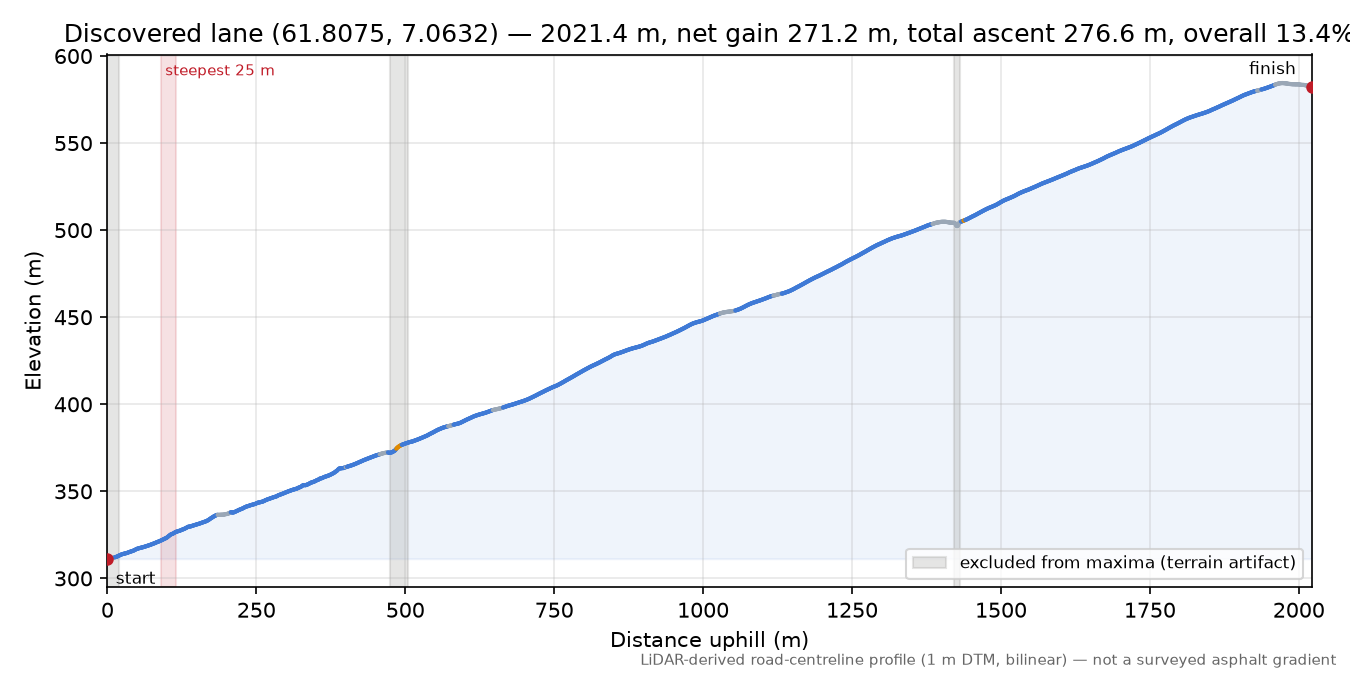

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | Kartverket NHM DTM 1 m (laser-covered ground only) — Nasjonal høydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:25833; sampled every 1.0 m, bilinear interpolation |
| Tiles | E81500-N6877500, E81500-N6878000, E82000-N6877500, E82000-N6878000, E82000-N6878500, E82500-N6877500, E82500-N6878000, E82500-N6878500, E83000-N6878000, E83000-N6878500 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality B; caveated windows: canopy or structure, structure excluded, structure excluded min, texture excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run no-b06, calculated 2026-10-03 |
Provenance
{
"analysis_version": "0.1.0",
"run_manifest": {
"manifest_version": "1",
"code_git_sha": "368c60c29e47d4b421849c953b172a04f7694146",
"code_git_dirty": "false",
"analysis_version": "0.1.0",
"analysis_config_digest": "sha256:8c94015b54267da4",
"python": "3.14.4",
"numpy": "2.5.3",
"rasterio": "1.5.2",
"pyproj": "3.8.0",
"laspy": "2.7.0",
"shapely": "2.1.2",
"pyosmium": "4.3.1",
"libosmium": "2.23.1",
"gdal": "3.12.2",
"proj": "9.8.1",
"run_id": "no-b06",
"road_pbf": "no-b06-block-batch-no-b06.osm.pbf",
"region_key": "norway",
"crs": "EPSG:25833",
"elevation_provider_key": "nhm-no",
"tile_index": "nhm-window",
"authority": "nvdb",
"registry_pbf": "norway-2026-10-01.osm.pbf"
},
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"scale_correction": "point",
"scale_correction_crs": "EPSG:25833",
"elevation_crs": "EPSG:25833",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/no/nhm-no_dtm_E81500-N6877500_1m.tif",
"data/cache/no/nhm-no_dtm_E81500-N6878000_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6877500_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6878000_1m.tif",
"data/cache/no/nhm-no_dtm_E82000-N6878500_1m.tif",
"data/cache/no/nhm-no_dtm_E82500-N6877500_1m.tif",
"data/cache/no/nhm-no_dtm_E82500-N6878000_1m.tif",
"data/cache/no/nhm-no_dtm_E82500-N6878500_1m.tif",
"data/cache/no/nhm-no_dtm_E83000-N6878000_1m.tif",
"data/cache/no/nhm-no_dtm_E83000-N6878500_1m.tif"
],
"calculated_at": "2026-10-03T19:46:33+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/no-b06-block-batch-no-b06.osm.pbf",
"osm_snapshot": "",
"run_id": "no-b06",
"elevation_provider": "Kartverket NHM DTM 1 m (laser-covered ground only)",
"elevation_licence": "CC BY 4.0 \u2014 \u00a9 Kartverket (https://www.kartverket.no/api-og-data/vilkar-for-bruk)",
"elevation_dataset": "Nasjonal h\u00f8ydemodell (NHM) DTM, 1 m, EPSG:25833, NN2000 (Kartverket), served by the hoydedata.no ImageServer; ground without a laser project is a coarser resampled product and is never measured",
"elevation_vertical_datum": "NN2000",
"elevation_tile_ids": [
"E81500-N6877500",
"E81500-N6878000",
"E82000-N6877500",
"E82000-N6878000",
"E82000-N6878500",
"E82500-N6877500",
"E82500-N6878000",
"E82500-N6878500",
"E83000-N6878000",
"E83000-N6878500"
],
"elevation_blocks": [
"nhm-dtm-1m"
],
"nhm_laser_projects": [
{
"last_flight_date": "2020-10-13",
"name": "NDH Stryn 2pkt 2020",
"points_per_m2": 2,
"resolution_m": 0.5,
"season": "",
"year": 2020
}
],
"nhm_last_flight_date": "2020-10-13",
"nhm_retrieved_at": "2026-10-03T11:11:35Z",
"nhm_note": "laser projects overlapping the route's cells; the mosaic draws on them by its own priority and which project supplied which pixel is not recorded",
"climb_origin": "discovered",
"seam_filled_samples": {
"count": 0,
"distances_m": []
},
"seam_filled_in_maximum": false,
"structure_own_ways": 1,
"tunnel_check": "osm tunnel=* ways on 1 own way(s)",
"tunnel_ranges_m": [],
"underground_fraction": 0.0,
"structure_mask_ranges_m": [
[
0.0,
15.0
]
],
"carriageway": {
"stations": 86,
"stations_resolved": 86,
"width_median_m": 4.25,
"width_p10_m": 2.0,
"width_min_m": 1.25,
"width_max_m": 11.25,
"bounded_share": 0.302,
"unbounded_share": 0.698,
"confidence_median": 0.0,
"width_median_bounded_m": 3.5,
"window_m": [
90.0,
115.0
],
"width_at_max25_m": 2.12,
"window_stations": 6,
"single_track": false,
"single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
"status": "ok",
"source": "dtm",
"station_m": 25.0,
"window_station_m": 5.0,
"halfwidth_m": 6.0,
"step_m": 0.25,
"level_tol_m": 0.12,
"break_min_m": 0.3,
"stations_failed": 0,
"hedge_to_hedge": {
"stations": 86,
"stations_resolved": 86,
"width_median_m": 6.0,
"width_p10_m": 2.0,
"width_min_m": 1.0,
"width_max_m": 12.0,
"bounded_share": 0.802,
"unbounded_share": 0.198,
"confidence_median": 1.0,
"width_median_bounded_m": 4.75,
"window_m": [
90.0,
115.0
],
"width_at_max25_m": 2.75,
"window_stations": 6,
"status": "ok",
"source": "dsm",
"station_m": 25.0,
"window_station_m": 5.0,
"halfwidth_m": 6.0,
"step_m": 0.25,
"level_tol_m": 0.5,
"break_min_m": 0.3,
"stations_failed": 0
}
},
"naming_note": "birth-named at adoption (nearest OSM village/hamlet/locality node ('B\u00f8dalss\u00e6tra'))",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
