LIVING SURVEY — measurements are reviewed continuously as new data and local evidence arrive. Seen a sign, a gate, or a better name? Submit an update no account needed · photos welcome via GitHub

Discovered lane (46.1928, 4.6922)

1439.0 m · net rise 124.4 m · overall 8.6% · evidence quality A (high) · Fleurie · Rhône · share

Shape: sustained — 33% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 171 m.

Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against IGN’s BD TOPO® road network, OpenStreetMap and the classified LiDAR HD point cloud, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	23%	517–519 m
3 m (diagnostic)	22%	516–519 m
5 m	21%	514–519 m
10 m	21%	515–525 m
20 m	20.5%	507–527 m
25 m	20.0%	503–528 m
50 m	18.7%	477–527 m
100 m	17.6%	449–549 m

may continue beyond end Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved throughout, according to BD TOPO®, IGN's national topographic database.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

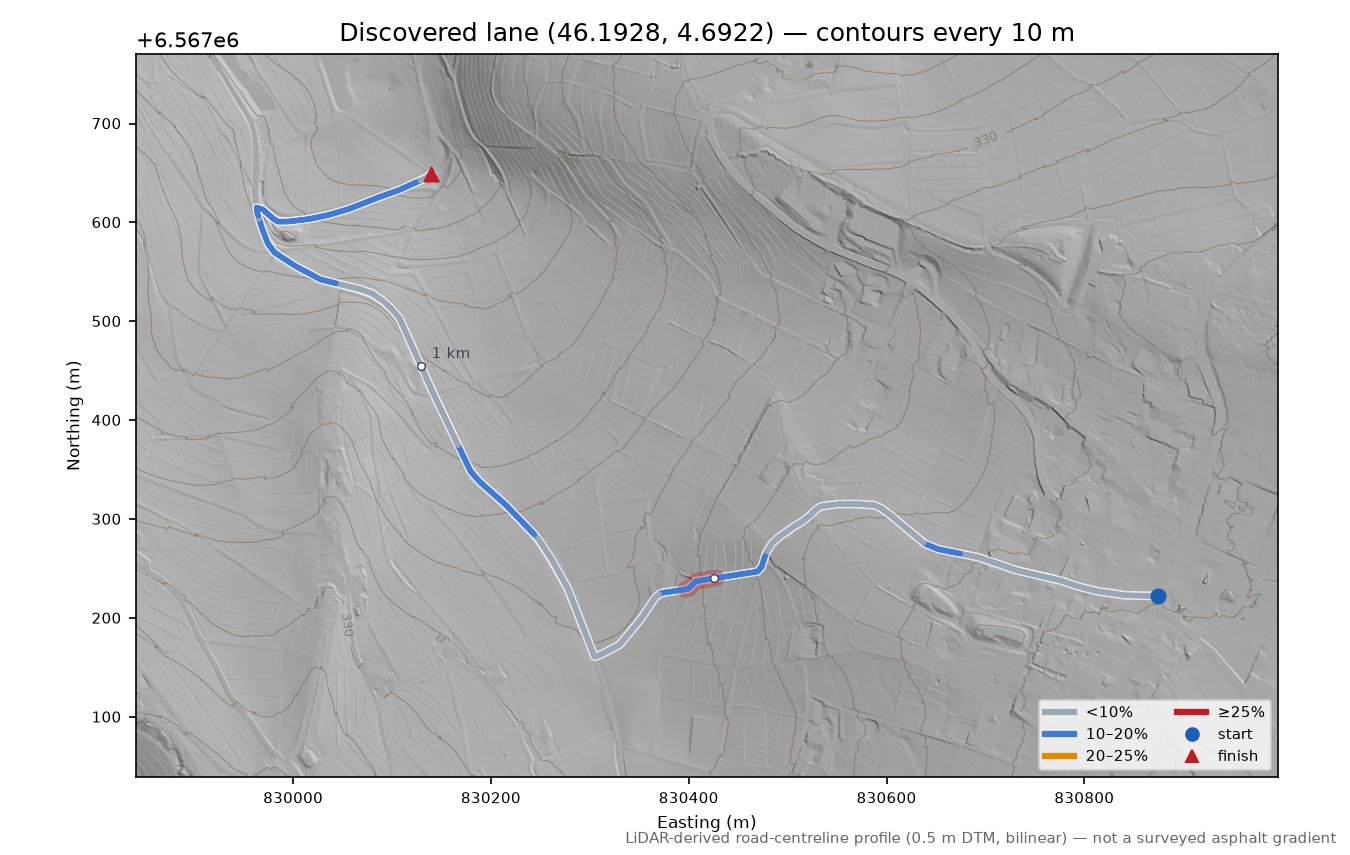

Discovered lane (46.1928, 4.6922) LiDAR hillshade map with contours

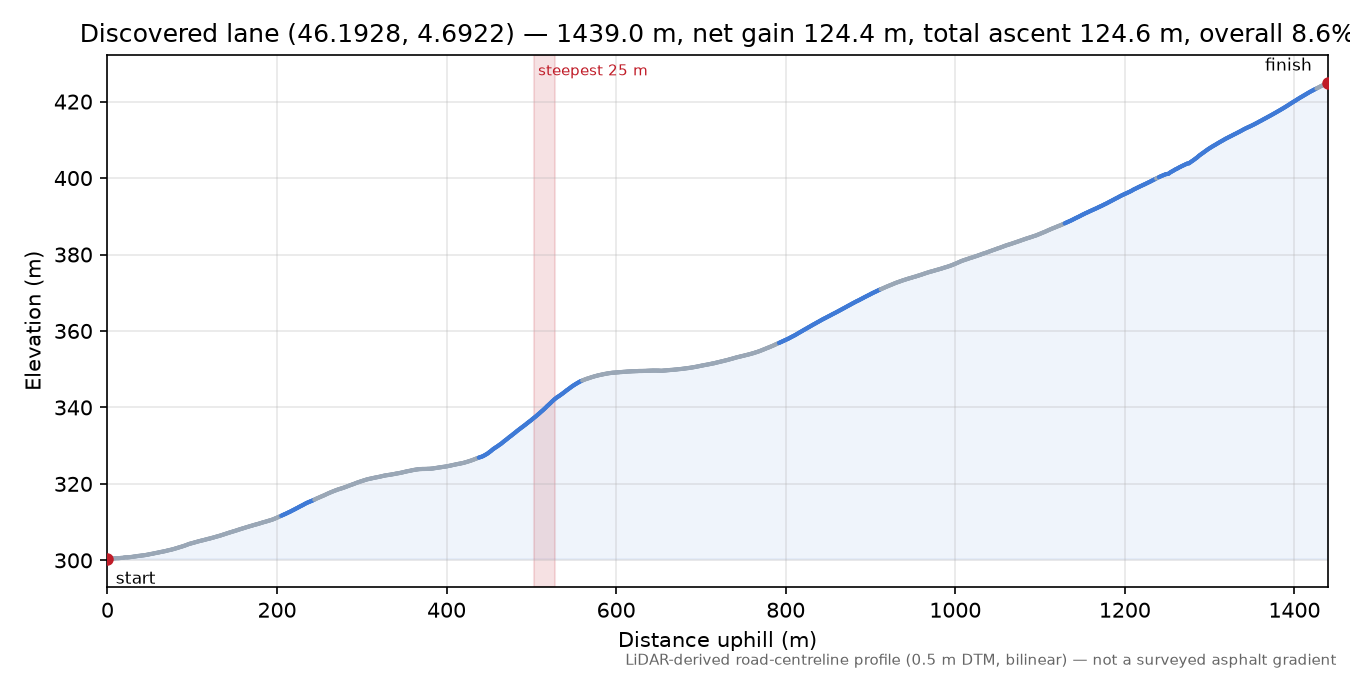

Profile

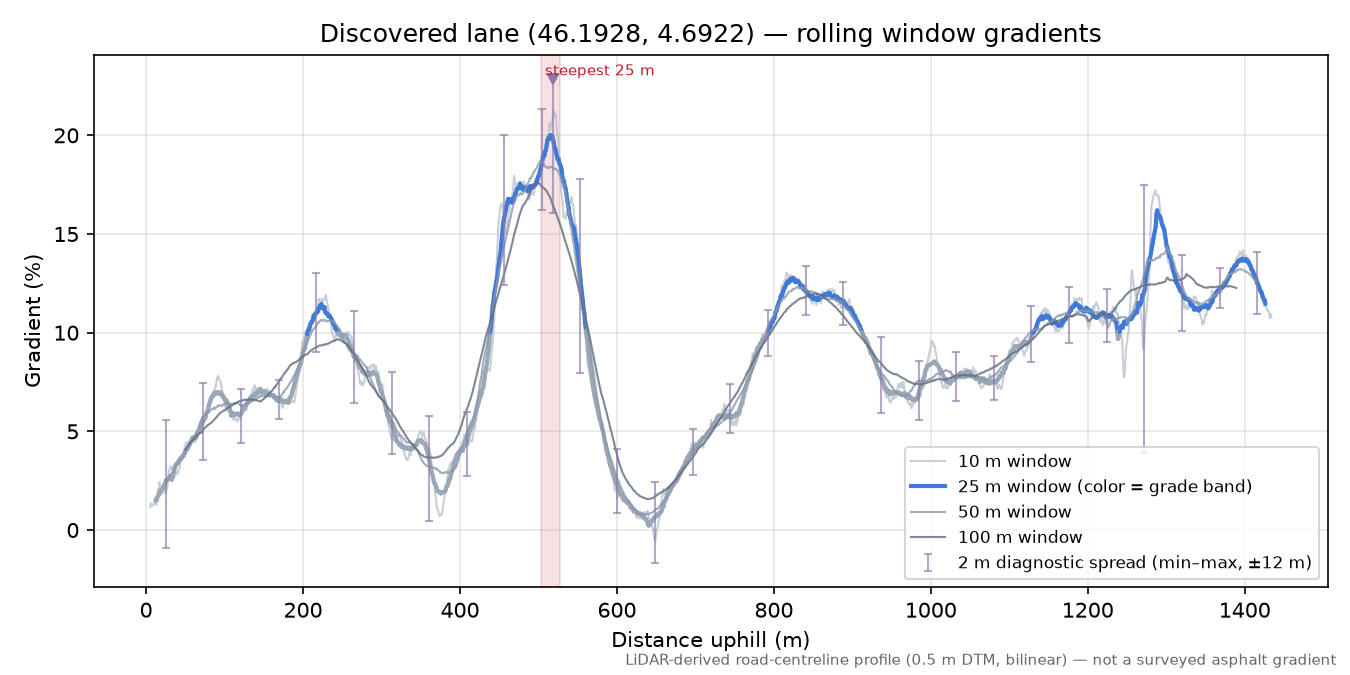

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	IGN LiDAR HD MNT 0.5 m — LiDAR HD — MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information géographique et forestière), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69
Resolution / CRS	0.5 m grid, EPSG:2154; sampled every 1.0 m, bilinear interpolation
Tiles	E829-N6567, E830-N6567
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality A; no review flags; no caveated windows
Analysis	OCL 0.1.0, analysis 0.1.0, run fr-mc8, calculated 2026-09-22

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "076a8e7f889cfb3c2cf6b3de65a6030c7155b1f0",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.1",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.8.1",
    "run_id": "fr-mc8",
    "road_pbf": "block-batch-fr-mc8.osm.pbf",
    "region_key": "france",
    "crs": "EPSG:2154",
    "elevation_provider_key": "ign-lidarhd",
    "tile_index": "wms-grid",
    "authority": "bdtopo",
    "registry_pbf": "france-vosges-2026-09-16.osm.pbf",
    "tile_index_snapshot": "sha256:af4eae1f5df9e232"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:2154",
  "elevation_resolution_m": 0.5,
  "elevation_tiles": [
    "data/cache/fr/ign-lidarhd_dtm_E829-N6567_0m5@21LHD5NK-2025-02-20.tif",
    "data/cache/fr/ign-lidarhd_dtm_E830-N6567_0m5@21LHD5NK-2025-02-20.tif"
  ],
  "calculated_at": "2026-09-22T14:28:01+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/block-batch-fr-mc8.osm.pbf",
  "osm_snapshot": "",
  "run_id": "fr-mc8",
  "elevation_provider": "IGN LiDAR HD MNT 0.5 m",
  "elevation_licence": "Licence Ouverte / Open Licence 2.0 (Etalab) \u2014 \u00a9 IGN, LiDAR HD (MNT/MNS), data.geopf.fr; reproduction autoris\u00e9e avec mention de la source et de la date",
  "elevation_dataset": "LiDAR HD \u2014 MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information g\u00e9ographique et foresti\u00e8re), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69",
  "elevation_vertical_datum": "IGN69",
  "elevation_tile_ids": [
    "E829-N6567",
    "E830-N6567"
  ],
  "elevation_blocks": [
    "21LHD5NK@2025-02-20"
  ],
  "ign_dalles": [
    "LHD_FXX_0829_6568_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0830_6568_MNT_O_0M50_LAMB93_IGN69"
  ],
  "ign_missions": [
    "21LHD5NK"
  ],
  "ign_editions": [
    "2025-02-20"
  ],
  "ign_dsm_edition": {
    "LHD_FXX_0829_6568_MNT_O_0M50_LAMB93_IGN69": "2025-02-20",
    "LHD_FXX_0830_6568_MNT_O_0M50_LAMB93_IGN69": "2025-02-20"
  },
  "climb_origin": "discovered",
  "structure_own_ways": 4,
  "carriageway": {
    "stations": 64,
    "stations_resolved": 64,
    "width_median_m": 5.0,
    "width_p10_m": 3.33,
    "width_min_m": 2.75,
    "width_max_m": 12.0,
    "bounded_share": 0.25,
    "unbounded_share": 0.75,
    "confidence_median": 0.0,
    "width_median_bounded_m": 5.0,
    "window_m": [
      503.0,
      528.0
    ],
    "width_at_max25_m": 4.0,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 64,
      "stations_resolved": 64,
      "width_median_m": 8.12,
      "width_p10_m": 4.83,
      "width_min_m": 1.25,
      "width_max_m": 12.0,
      "bounded_share": 0.453,
      "unbounded_share": 0.547,
      "confidence_median": 0.0,
      "width_median_bounded_m": 5.5,
      "window_m": [
        503.0,
        528.0
      ],
      "width_at_max25_m": 6.5,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
