D620

Paved · listed, not ranked

2061.8 m · net rise 124.5 m · total ascent 127.8 m · overall 6.0% · evidence quality A (high) · Bitche · Moselle

Shape: sustained — 42% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 129 m.

Not yet matched against documented climbs — the measurement stands on its own.

D620 (Bitche, Moselle) is 2061.8 m long at 6.0% overall; its steepest 25 m averages 11.6% and its steepest 100 m 10.9%, measured from IGN's LiDAR HD 0.5 m laser surveys along the mapped road centreline.

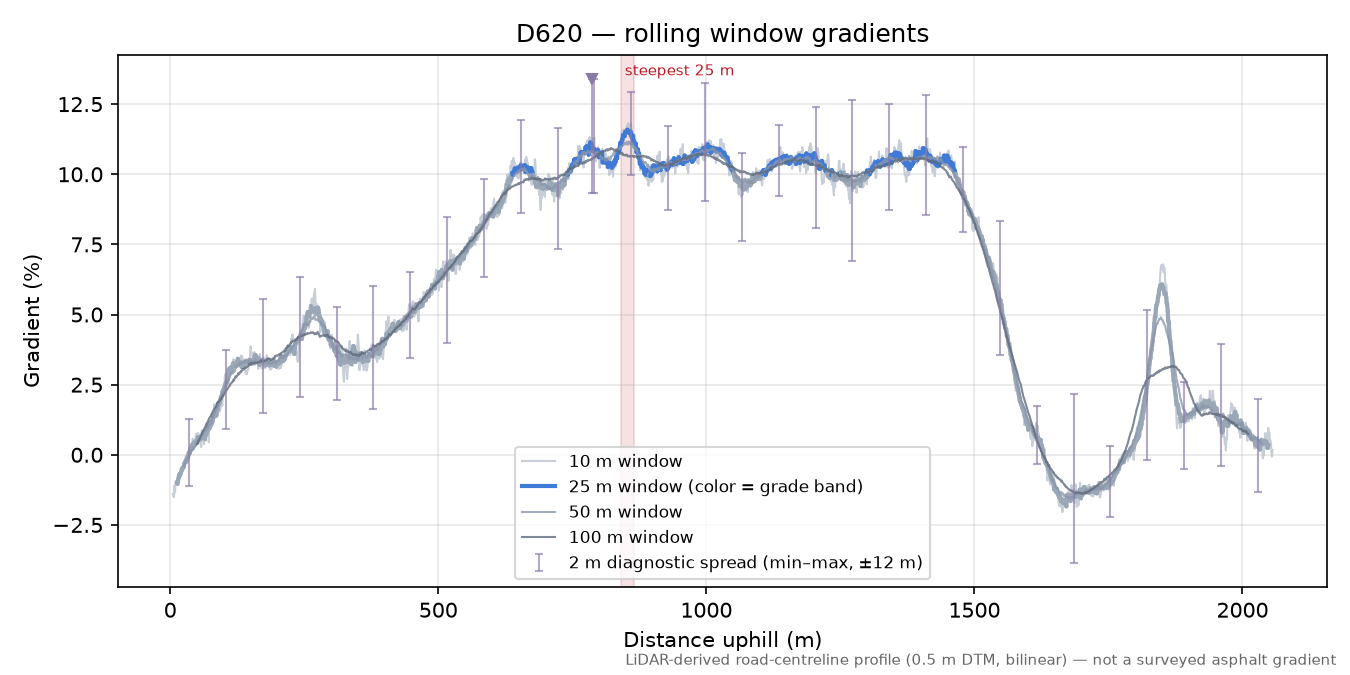

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	13%	785–787 m
3 m (diagnostic)	13%	793–796 m
5 m	12%	856–861 m
10 m	12%	849–859 m
20 m	11.7%	844–864 m
25 m	11.6%	840–865 m
50 m	11.2%	830–880 m
100 m	10.9%	773–873 m

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved throughout, according to BD TOPO®, IGN's national topographic database.

Access: Listed 2026-10-20 (bare road number, awaiting a person's name): the only name this col approach (Hauteur du Freudenberg, Bitche side) has is D620; no OSM street name at the steepest 25 m window. Never renamed "Discovered lane".

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.

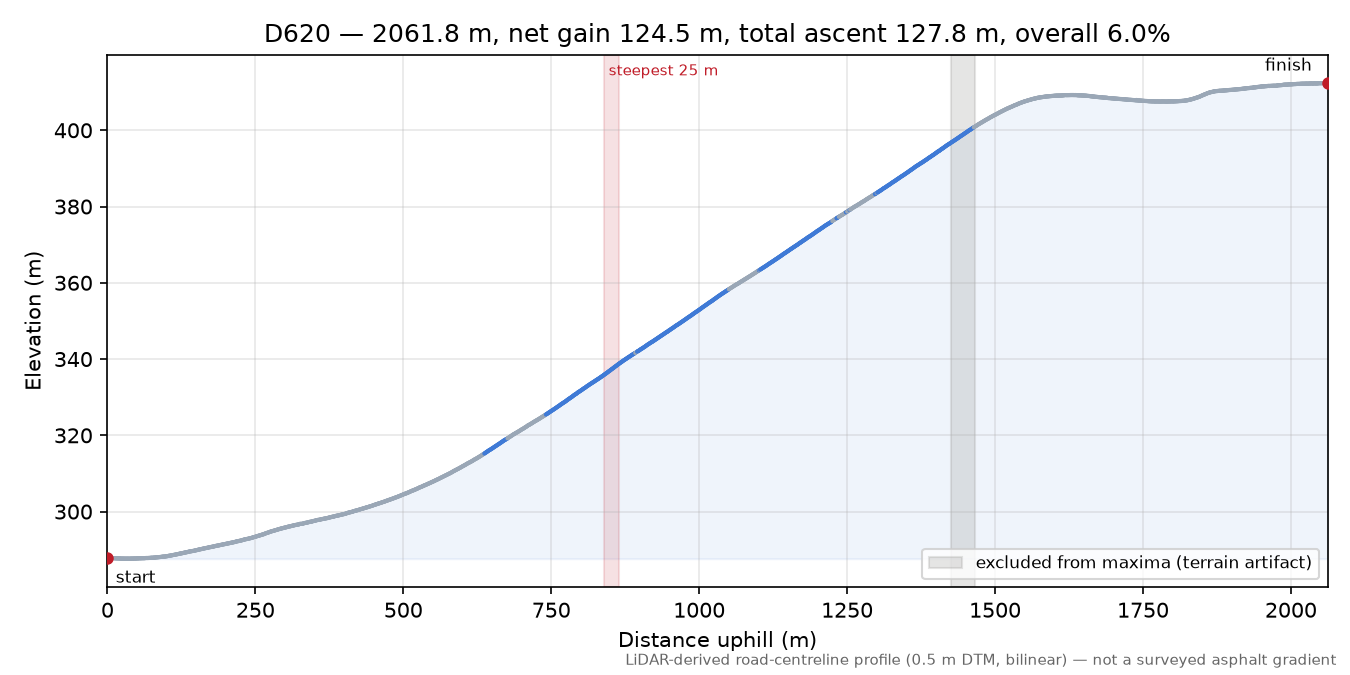

Profile

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	IGN LiDAR HD MNT 0.5 m — LiDAR HD — MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information géographique et forestière), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69
Resolution / CRS	0.5 m grid, EPSG:2154; sampled every 1.0 m, bilinear interpolation
Tiles	E1021-N6893, E1022-N6892, E1022-N6893, E1023-N6892, E1023-N6893
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality A; no review flags; no caveated windows
Analysis	OCL 0.1.0, analysis 0.1.0, run fr-ne8, calculated 2026-09-26

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "16bcc1553fe58b280e0c4a66a3ab0980530490a6",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.1",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.8.1",
    "run_id": "fr-ne8",
    "road_pbf": "block-batch-fr-ne8.osm.pbf",
    "region_key": "france",
    "crs": "EPSG:2154",
    "elevation_provider_key": "ign-lidarhd",
    "tile_index": "wms-grid",
    "authority": "bdtopo",
    "registry_pbf": "france-vosges-2026-09-16.osm.pbf",
    "tile_index_snapshot": "sha256:18f786cf9fa98070"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:2154",
  "elevation_resolution_m": 0.5,
  "elevation_tiles": [
    "data/cache/fr/ign-lidarhd_dtm_E1021-N6893_0m5@22LHDVosgesRE-2025-02-17.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1022-N6892_0m5@22LHDVosgesRE-2025-02-17.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1022-N6893_0m5@22LHDVosgesRE-2025-02-17.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1023-N6892_0m5@22LHDVosgesRE-2025-02-17.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1023-N6893_0m5@22LHDVosgesRE-2025-02-17.tif"
  ],
  "calculated_at": "2026-09-26T18:16:01+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/block-batch-fr-ne8.osm.pbf",
  "osm_snapshot": "",
  "run_id": "fr-ne8",
  "elevation_provider": "IGN LiDAR HD MNT 0.5 m",
  "elevation_licence": "Licence Ouverte / Open Licence 2.0 (Etalab) \u2014 \u00a9 IGN, LiDAR HD (MNT/MNS), data.geopf.fr; reproduction autoris\u00e9e avec mention de la source et de la date",
  "elevation_dataset": "LiDAR HD \u2014 MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information g\u00e9ographique et foresti\u00e8re), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69",
  "elevation_vertical_datum": "IGN69",
  "elevation_tile_ids": [
    "E1021-N6893",
    "E1022-N6892",
    "E1022-N6893",
    "E1023-N6892",
    "E1023-N6893"
  ],
  "elevation_blocks": [
    "22LHDVosgesRE@2025-02-17"
  ],
  "ign_dalles": [
    "LHD_FXX_1021_6894_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_1022_6893_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_1022_6894_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_1023_6893_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_1023_6894_MNT_O_0M50_LAMB93_IGN69"
  ],
  "ign_missions": [
    "22LHDVosgesRE"
  ],
  "ign_editions": [
    "2025-02-17"
  ],
  "ign_dsm_edition": {
    "LHD_FXX_1021_6894_MNT_O_0M50_LAMB93_IGN69": "2025-02-17",
    "LHD_FXX_1022_6893_MNT_O_0M50_LAMB93_IGN69": "2025-02-17",
    "LHD_FXX_1022_6894_MNT_O_0M50_LAMB93_IGN69": "2025-02-17",
    "LHD_FXX_1023_6893_MNT_O_0M50_LAMB93_IGN69": "2025-02-17",
    "LHD_FXX_1023_6894_MNT_O_0M50_LAMB93_IGN69": "2025-02-17"
  },
  "climb_origin": "named-pass",
  "seam_filled_samples": {
    "count": 0,
    "distances_m": []
  },
  "seam_filled_in_maximum": false,
  "structure_own_ways": 14,
  "structure_mask_ranges_m": [
    [
      1431.8,
      1461.8
    ]
  ],
  "carriageway": {
    "stations": 88,
    "stations_resolved": 88,
    "width_median_m": 9.75,
    "width_p10_m": 7.93,
    "width_min_m": 6.0,
    "width_max_m": 12.0,
    "bounded_share": 0.0,
    "unbounded_share": 1.0,
    "confidence_median": 0.0,
    "window_m": [
      840.0,
      865.0
    ],
    "width_at_max25_m": 12.0,
    "window_stations": 6,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 88,
      "stations_resolved": 88,
      "width_median_m": 12.0,
      "width_p10_m": 10.93,
      "width_min_m": 9.5,
      "width_max_m": 12.0,
      "bounded_share": 0.011,
      "unbounded_share": 0.989,
      "confidence_median": 0.0,
      "width_median_bounded_m": 9.75,
      "window_m": [
        840.0,
        865.0
      ],
      "width_at_max25_m": 12.0,
      "window_stations": 6,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
