Col de Saint-Eustache from Aullène

7236.0 m · net rise 343.6 m · total ascent 494.4 m · overall 4.7% · evidence quality U (needs confirmation) · Aullène · Corse-du-Sud · share

Shape: sustained — 41% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 57 m.

Not yet matched against documented climbs — the measurement stands on its own.

needs review short window divergence — treat short-window maxima here as provisional.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈45%	5028–5030 m	under overhead cover terrain reads 426.7% at 1041–1043 m across a structure — excluded
3 m (diagnostic)	≈30%	4945–4948 m	under overhead cover terrain reads 303.9% at 1040–1043 m across a structure — excluded
5 m	≈27%	5025–5030 m	under overhead cover terrain reads 188.1% at 1039–1044 m across a structure — excluded
10 m	≈18%	6201–6211 m	under overhead cover terrain reads 131.6% at 5176–5186 m across a structure — excluded
20 m	≈15.3%	6285–6305 m	under overhead cover terrain reads 70.6% at 5165–5185 m across a structure — excluded
25 m	≈14.6%	6201–6226 m	under overhead cover terrain reads 67.8% at 5161–5186 m across a structure and ground that holds no carriageway surface at the route line (sunken, walled or sharply embanked) — excluded
50 m	≈9.2%	6284–6334 m	under overhead cover terrain reads 35.4% at 4022–4072 m across a structure and ground that holds no carriageway surface at the route line (sunken, walled or sharply embanked) — excluded
100 m	≈8.6%	6374–6474 m	under overhead cover terrain reads 20.1% at 3972–4072 m across a structure — excluded

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved (0% unpaved), according to BD TOPO®, IGN's national topographic database: paved for the first 4,038 m; off the road model from 4,038 m to 4,108 m; paved from 4,108 m to the top.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Col de Saint-Eustache from Aullène LiDAR hillshade map with contours

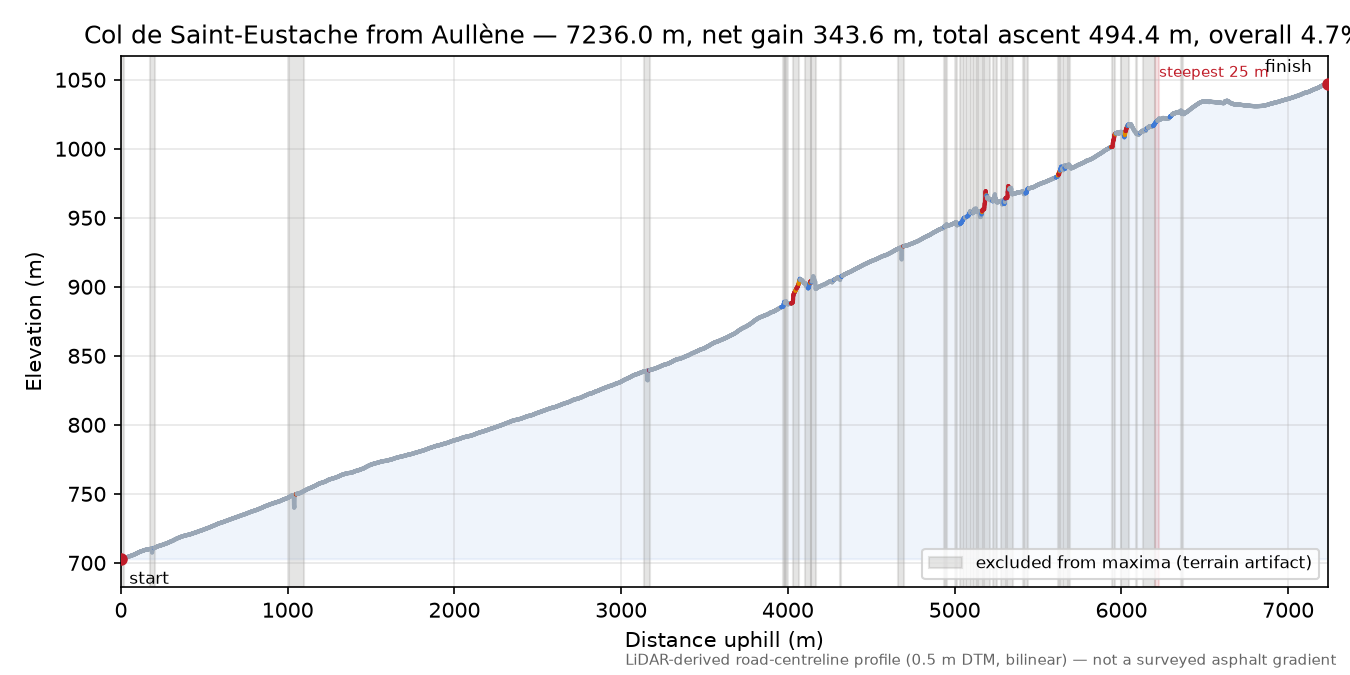

Profile

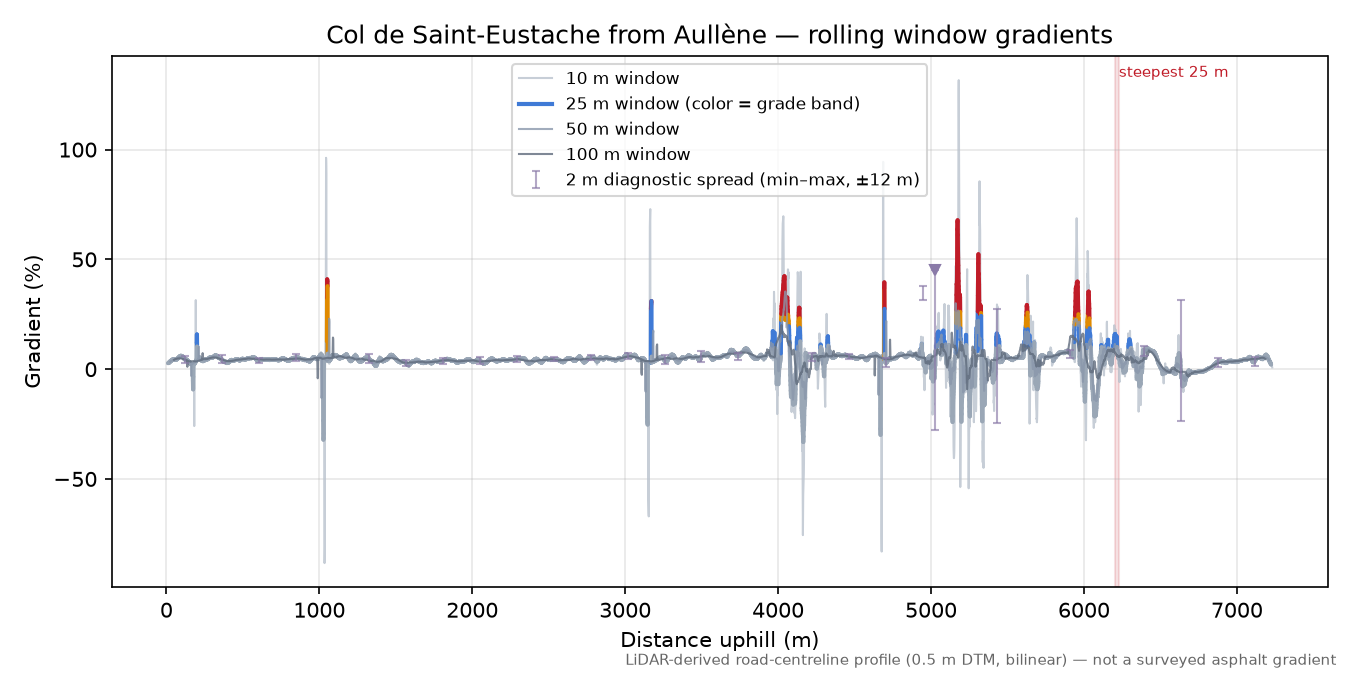

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	IGN LiDAR HD MNT 0.5 m — LiDAR HD — MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information géographique et forestière), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69
Resolution / CRS	0.5 m grid, EPSG:2154; sampled every 1.0 m, bilinear interpolation
Tiles	E1201-N6092, E1201-N6093, E1201-N6094, E1202-N6092, E1202-N6093, E1203-N6092, E1203-N6093, E1204-N6093, E1204-N6094, E1205-N6093, E1205-N6094, E1205-N6095
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality U; review flags: short window divergence
Analysis	OCL 0.1.0, analysis 0.1.0, run fr-co2, calculated 2026-09-25

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "33abfff569d4360542e616d0d42c1b94d0a711fa",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.1",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.8.1",
    "run_id": "fr-co2",
    "road_pbf": "block-batch-fr-co2.osm.pbf",
    "region_key": "france",
    "crs": "EPSG:2154",
    "elevation_provider_key": "ign-lidarhd",
    "tile_index": "wms-grid",
    "authority": "bdtopo",
    "registry_pbf": "france-vosges-2026-09-16.osm.pbf",
    "tile_index_snapshot": "sha256:2a717d675f2607cc"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:2154",
  "elevation_resolution_m": 0.5,
  "elevation_tiles": [
    "data/cache/fr/ign-lidarhd_dtm_E1201-N6092_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1201-N6093_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1201-N6094_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1202-N6092_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1202-N6093_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1203-N6092_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1203-N6093_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1204-N6093_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1204-N6094_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1205-N6093_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1205-N6094_0m5@21LHDCorseVT-2025-04-02.tif",
    "data/cache/fr/ign-lidarhd_dtm_E1205-N6095_0m5@21LHDCorseVT-2025-04-02.tif"
  ],
  "calculated_at": "2026-09-25T00:47:26+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/block-batch-fr-co2.osm.pbf",
  "osm_snapshot": "",
  "run_id": "fr-co2",
  "elevation_provider": "IGN LiDAR HD MNT 0.5 m",
  "elevation_licence": "Licence Ouverte / Open Licence 2.0 (Etalab) \u2014 \u00a9 IGN, LiDAR HD (MNT/MNS), data.geopf.fr; reproduction autoris\u00e9e avec mention de la source et de la date",
  "elevation_dataset": "LiDAR HD \u2014 MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information g\u00e9ographique et foresti\u00e8re), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69",
  "elevation_vertical_datum": "IGN69",
  "elevation_tile_ids": [
    "E1201-N6092",
    "E1201-N6093",
    "E1201-N6094",
    "E1202-N6092",
    "E1202-N6093",
    "E1203-N6092",
    "E1203-N6093",
    "E1204-N6093",
    "E1204-N6094",
    "E1205-N6093",
    "E1205-N6094",
    "E1205-N6095"
  ],
  "elevation_blocks": [
    "21LHDCorseVT@2025-04-02"
  ],
  "ign_dalles": [
    "LHD_FXX_1201_6093_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1201_6094_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1201_6095_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1202_6093_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1202_6094_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1203_6093_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1203_6094_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1204_6094_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1204_6095_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1205_6094_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1205_6095_MNT_O_0M50_LAMB93_IGN78",
    "LHD_FXX_1205_6096_MNT_O_0M50_LAMB93_IGN78"
  ],
  "ign_missions": [
    "21LHDCorseVT"
  ],
  "ign_editions": [
    "2025-04-02"
  ],
  "ign_dsm_edition": {
    "LHD_FXX_1201_6093_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1201_6094_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1201_6095_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1202_6093_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1202_6094_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1203_6093_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1203_6094_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1204_6094_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1204_6095_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1205_6094_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1205_6095_MNT_O_0M50_LAMB93_IGN78": "2025-04-02",
    "LHD_FXX_1205_6096_MNT_O_0M50_LAMB93_IGN78": "2025-04-02"
  },
  "route_summit_trim_m": 1249.2,
  "route_summit_trim_loss_m": 56.6,
  "climb_origin": "named-pass",
  "structure_own_ways": 15,
  "structure_mask_ranges_m": [
    [
      4666.7,
      4691.8
    ],
    [
      3144.1,
      3170.3
    ],
    [
      178.4,
      200.7
    ],
    [
      1012.8,
      1069.0
    ],
    [
      0.0,
      15.0
    ]
  ],
  "mask_basin_extension_m": 21.0,
  "suppression_unstable": [
    5.0,
    10.0
  ],
  "carriageway": {
    "stations": 296,
    "stations_resolved": 296,
    "width_median_m": 7.0,
    "width_p10_m": 2.5,
    "width_min_m": 0.5,
    "width_max_m": 12.0,
    "bounded_share": 0.416,
    "unbounded_share": 0.584,
    "confidence_median": 0.0,
    "width_median_bounded_m": 7.0,
    "window_m": [
      6201.0,
      6226.0
    ],
    "width_at_max25_m": 3.0,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 296,
      "stations_resolved": 296,
      "width_median_m": 8.5,
      "width_p10_m": 3.25,
      "width_min_m": 0.5,
      "width_max_m": 12.0,
      "bounded_share": 0.639,
      "unbounded_share": 0.361,
      "confidence_median": 1.0,
      "width_median_bounded_m": 7.75,
      "window_m": [
        6201.0,
        6226.0
      ],
      "width_at_max25_m": 3.25,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
