Col de Marmare from Ignaux

4397.0 m · net rise 336.6 m · total ascent 340.9 m · overall 7.7% · evidence quality B (good) · Ignaux · Ariège · share

Shape: sustained — 29% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 193 m.

Not yet matched against documented climbs — the measurement stands on its own.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈13%	1949–1951 m	under overhead cover terrain reads 88.6% at 1852–1854 m across a structure — excluded
3 m (diagnostic)	≈13%	1955–1958 m	under overhead cover terrain reads 86.7% at 1851–1854 m across a structure — excluded
5 m	≈12%	1953–1958 m	under overhead cover terrain reads 84.3% at 1849–1854 m across a structure — excluded
10 m	≈12%	1953–1963 m	under overhead cover terrain reads 55.0% at 1849–1859 m across a structure — excluded
20 m	≈11.9%	1947–1967 m	under overhead cover terrain reads 31.2% at 1849–1869 m across a structure — excluded
25 m	≈11.7%	1942–1967 m	under overhead cover terrain reads 26.9% at 1849–1874 m across a structure — excluded
50 m	≈11.3%	1945–1995 m	under overhead cover terrain reads 18.8% at 1849–1899 m across a structure — excluded
100 m	≈11.3%	1946–2046 m	under overhead cover terrain reads 14.9% at 1849–1949 m across a structure — excluded

may start earlier Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: paved throughout, according to BD TOPO®, IGN's national topographic database.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

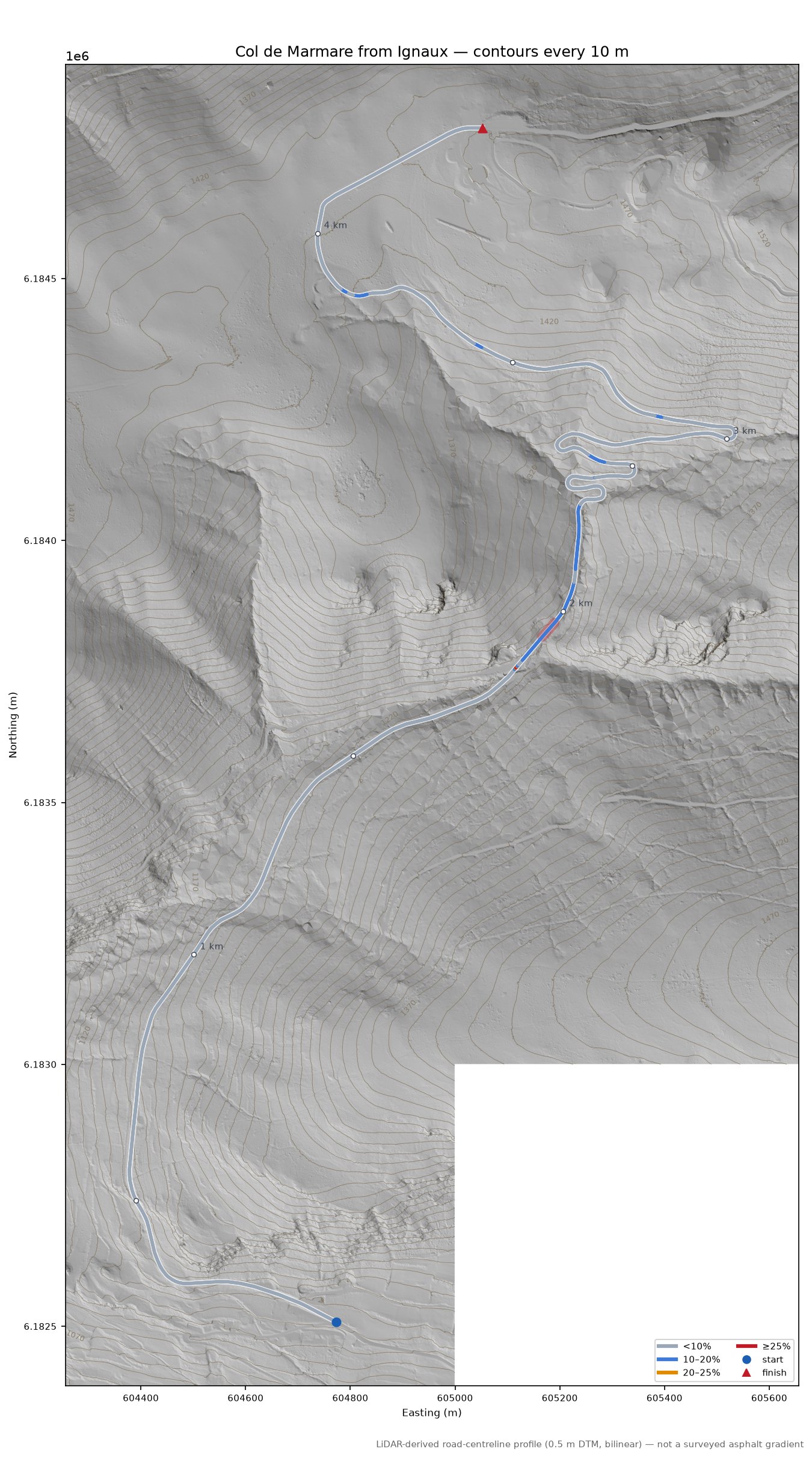

Col de Marmare from Ignaux LiDAR hillshade map with contours

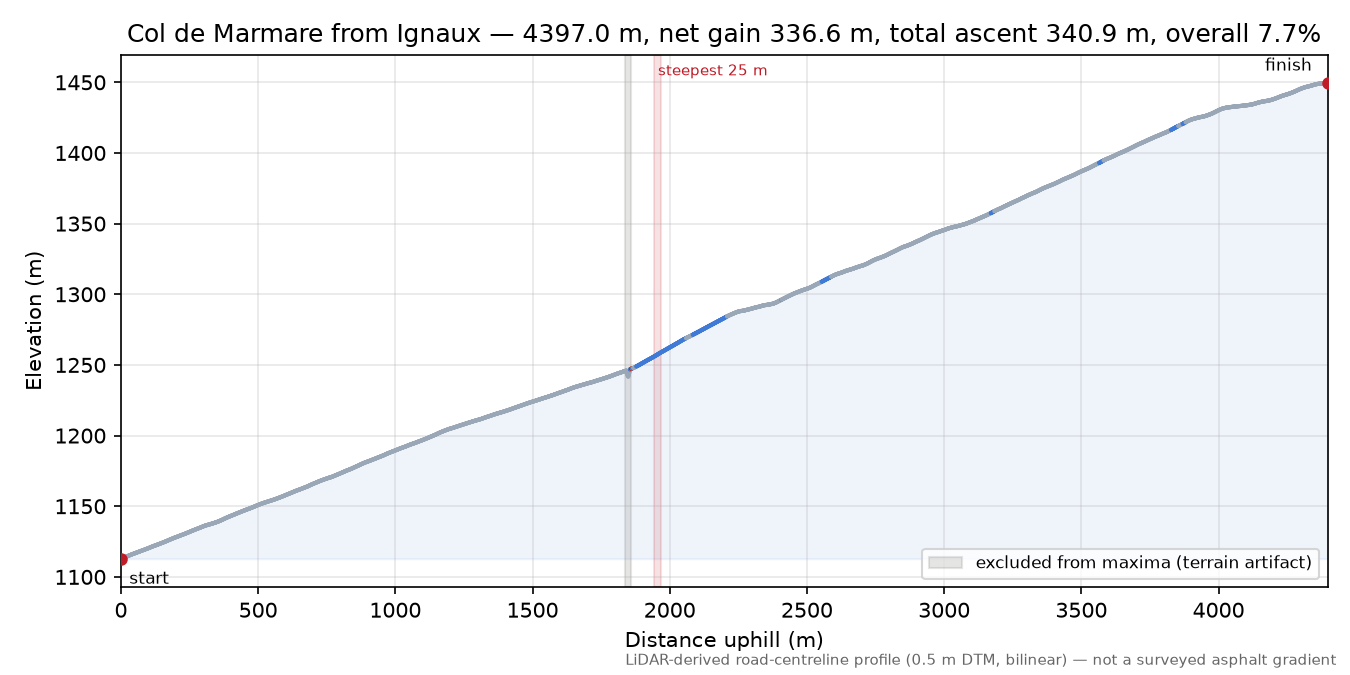

Profile

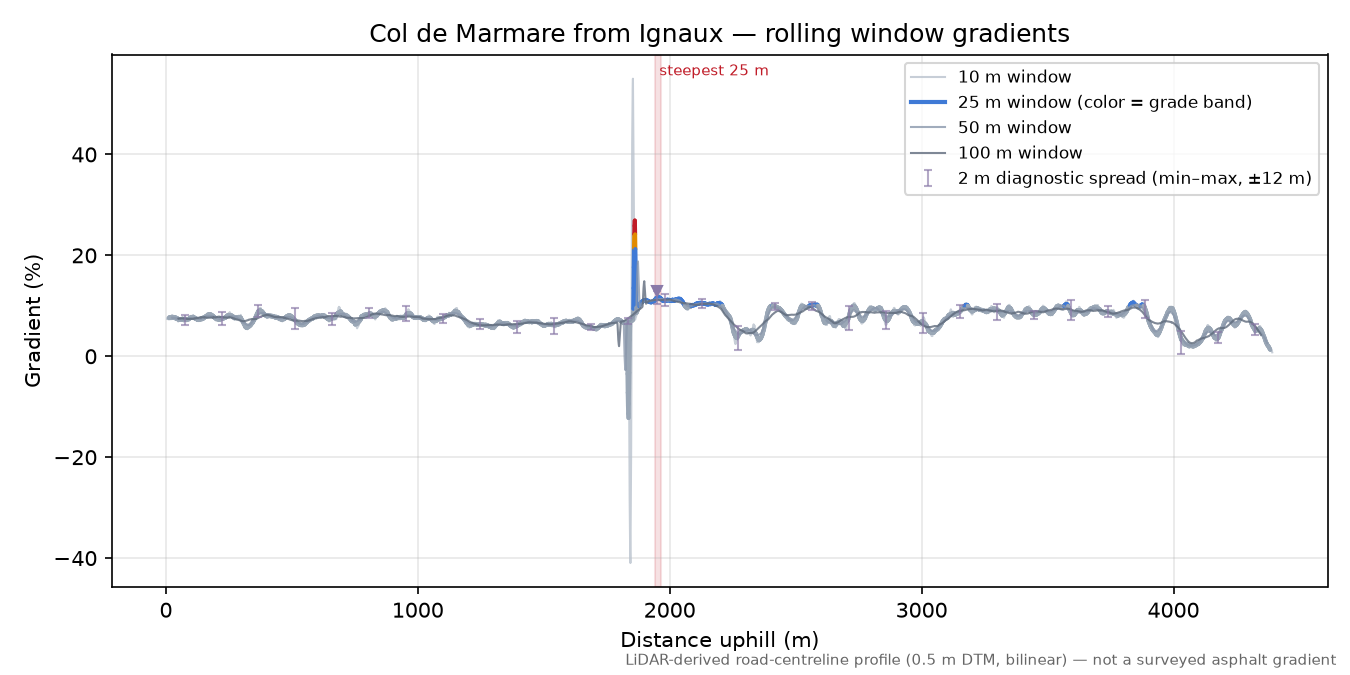

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	IGN LiDAR HD MNT 0.5 m — LiDAR HD — MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information géographique et forestière), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69
Resolution / CRS	0.5 m grid, EPSG:2154; sampled every 1.0 m, bilinear interpolation
Tiles	E604-N6182, E604-N6183, E604-N6184, E605-N6183, E605-N6184, E605-N6185, E606-N6185
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality B; caveated windows: canopy or structure, structure excluded, structure excluded min
Analysis	OCL 0.1.0, analysis 0.1.0, run fr-pyr3, calculated 2026-09-20

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "06fa4c370391597f015858e97dcf01ca2f5b3640",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:0048c2bbb24ab95e",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.1",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.8.1",
    "run_id": "fr-pyr3",
    "road_pbf": "block-batch-fr-pyr3.osm.pbf",
    "region_key": "france",
    "crs": "EPSG:2154",
    "elevation_provider_key": "ign-lidarhd",
    "tile_index": "wms-grid",
    "authority": "bdtopo",
    "registry_pbf": "france-vosges-2026-09-16.osm.pbf",
    "tile_index_snapshot": "sha256:79dd257545ed11dc"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:2154",
  "elevation_resolution_m": 0.5,
  "elevation_tiles": [
    "data/cache/fr/ign-lidarhd_dtm_E604-N6182_0m5@21LHD3JS-2025-03-26.tif",
    "data/cache/fr/ign-lidarhd_dtm_E604-N6183_0m5@21LHD3JR2-2025-04-11.tif",
    "data/cache/fr/ign-lidarhd_dtm_E604-N6184_0m5@21LHD3JR2-2025-04-11.tif",
    "data/cache/fr/ign-lidarhd_dtm_E605-N6183_0m5@21LHD3JR2-2025-04-11.tif",
    "data/cache/fr/ign-lidarhd_dtm_E605-N6184_0m5@21LHD3JR2-2025-04-11.tif",
    "data/cache/fr/ign-lidarhd_dtm_E605-N6185_0m5@21LHD3JR2-2025-04-11.tif",
    "data/cache/fr/ign-lidarhd_dtm_E606-N6185_0m5@21LHD3JR2-2025-04-11.tif"
  ],
  "calculated_at": "2026-09-20T08:17:45+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/block-batch-fr-pyr3.osm.pbf",
  "osm_snapshot": "",
  "run_id": "fr-pyr3",
  "elevation_provider": "IGN LiDAR HD MNT 0.5 m",
  "elevation_licence": "Licence Ouverte / Open Licence 2.0 (Etalab) \u2014 \u00a9 IGN, LiDAR HD (MNT/MNS), data.geopf.fr; reproduction autoris\u00e9e avec mention de la source et de la date",
  "elevation_dataset": "LiDAR HD \u2014 MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information g\u00e9ographique et foresti\u00e8re), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69",
  "elevation_vertical_datum": "IGN69",
  "elevation_tile_ids": [
    "E604-N6182",
    "E604-N6183",
    "E604-N6184",
    "E605-N6183",
    "E605-N6184",
    "E605-N6185",
    "E606-N6185"
  ],
  "elevation_blocks": [
    "21LHD3JR2@2025-04-11",
    "21LHD3JS@2025-03-26"
  ],
  "ign_dalles": [
    "LHD_FXX_0604_6183_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0604_6184_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0604_6185_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0605_6184_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0605_6185_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0605_6186_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0606_6186_MNT_O_0M50_LAMB93_IGN69"
  ],
  "ign_missions": [
    "21LHD3JR2",
    "21LHD3JS"
  ],
  "ign_editions": [
    "2025-03-26",
    "2025-04-11"
  ],
  "ign_dsm_edition": {
    "LHD_FXX_0604_6183_MNT_O_0M50_LAMB93_IGN69": "2025-03-26",
    "LHD_FXX_0604_6184_MNT_O_0M50_LAMB93_IGN69": "2025-04-11",
    "LHD_FXX_0604_6185_MNT_O_0M50_LAMB93_IGN69": "2025-04-11",
    "LHD_FXX_0605_6184_MNT_O_0M50_LAMB93_IGN69": "2025-04-11",
    "LHD_FXX_0605_6185_MNT_O_0M50_LAMB93_IGN69": "2025-04-11",
    "LHD_FXX_0605_6186_MNT_O_0M50_LAMB93_IGN69": "2025-04-11",
    "LHD_FXX_0606_6186_MNT_O_0M50_LAMB93_IGN69": "2025-04-11"
  },
  "route_summit_trim_m": 1938.7,
  "route_summit_trim_loss_m": 85.3,
  "climb_origin": "named-pass",
  "via": [
    "Col du Chioula"
  ],
  "structure_own_ways": 6,
  "carriageway": {
    "stations": 182,
    "stations_resolved": 182,
    "width_median_m": 7.25,
    "width_p10_m": 5.75,
    "width_min_m": 3.5,
    "width_max_m": 12.0,
    "bounded_share": 0.522,
    "unbounded_share": 0.478,
    "confidence_median": 0.523,
    "width_median_bounded_m": 6.75,
    "window_m": [
      1942.0,
      1967.0
    ],
    "width_at_max25_m": 7.75,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 182,
      "stations_resolved": 182,
      "width_median_m": 8.88,
      "width_p10_m": 4.03,
      "width_min_m": 0.0,
      "width_max_m": 12.0,
      "bounded_share": 0.538,
      "unbounded_share": 0.462,
      "confidence_median": 1.0,
      "width_median_bounded_m": 7.12,
      "window_m": [
        1942.0,
        1967.0
      ],
      "width_at_max25_m": 11.25,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
