Chemin de la Garde

1512.0 m · net rise 73.7 m · total ascent 78.9 m · overall 4.9% · evidence quality B (good) · Montgreleix · Cantal · share

Shape: sustained — 37% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 14 m.

Not yet matched against documented climbs — the measurement stands on its own.

≈ Overhead cover (tree canopy or structures) spans 13% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

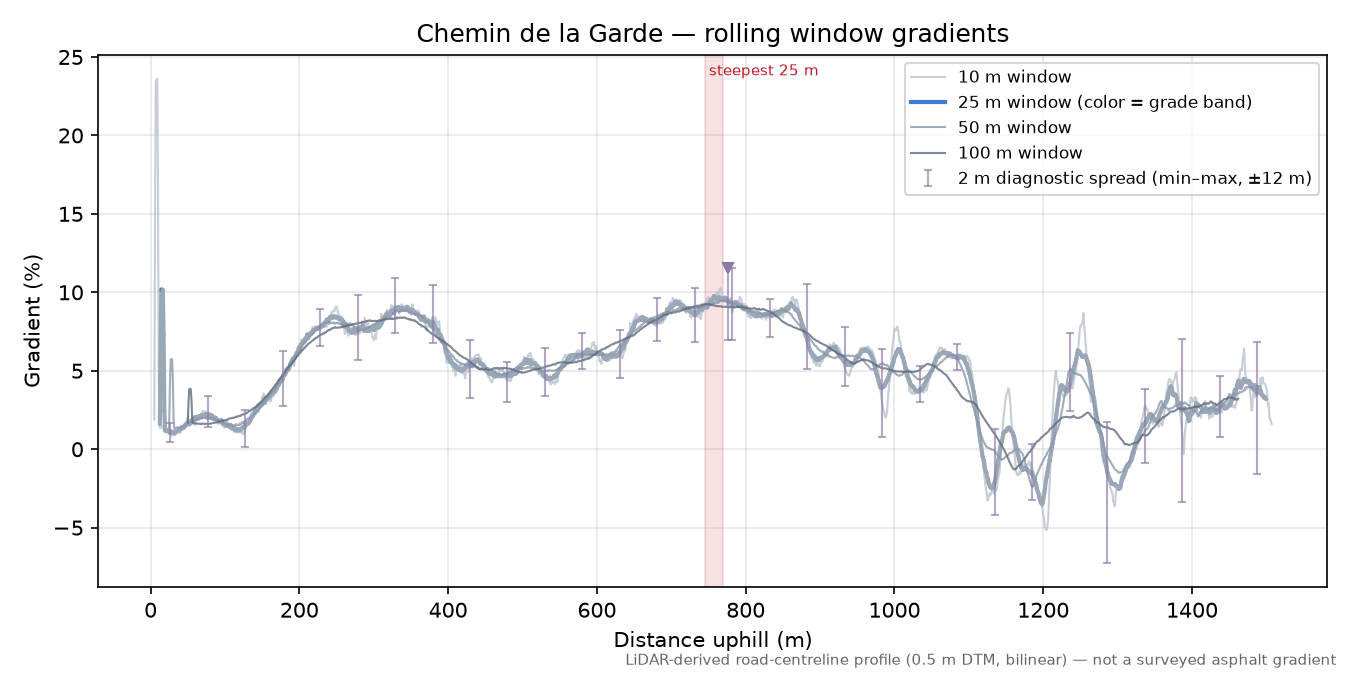

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈12%	775–777 m	under overhead cover terrain reads 97.0% at 4–6 m across a structure — excluded
3 m (diagnostic)	≈11%	763–766 m	under overhead cover terrain reads 75.4% at 4–7 m across a structure — excluded
5 m	≈11%	761–766 m	under overhead cover terrain reads 45.9% at 3–8 m across a structure — excluded
10 m	≈10%	761–771 m	under overhead cover terrain reads 23.6% at 4–14 m across a structure — excluded
20 m	≈9.8%	751–771 m	under overhead cover terrain reads 12.5% at 4–24 m across a structure — excluded
25 m	≈9.8%	745–770 m	under overhead cover terrain reads 10.2% at 2–27 m across a structure — excluded
50 m	9.5%	745–795 m
100 m	9.3%	698–798 m

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

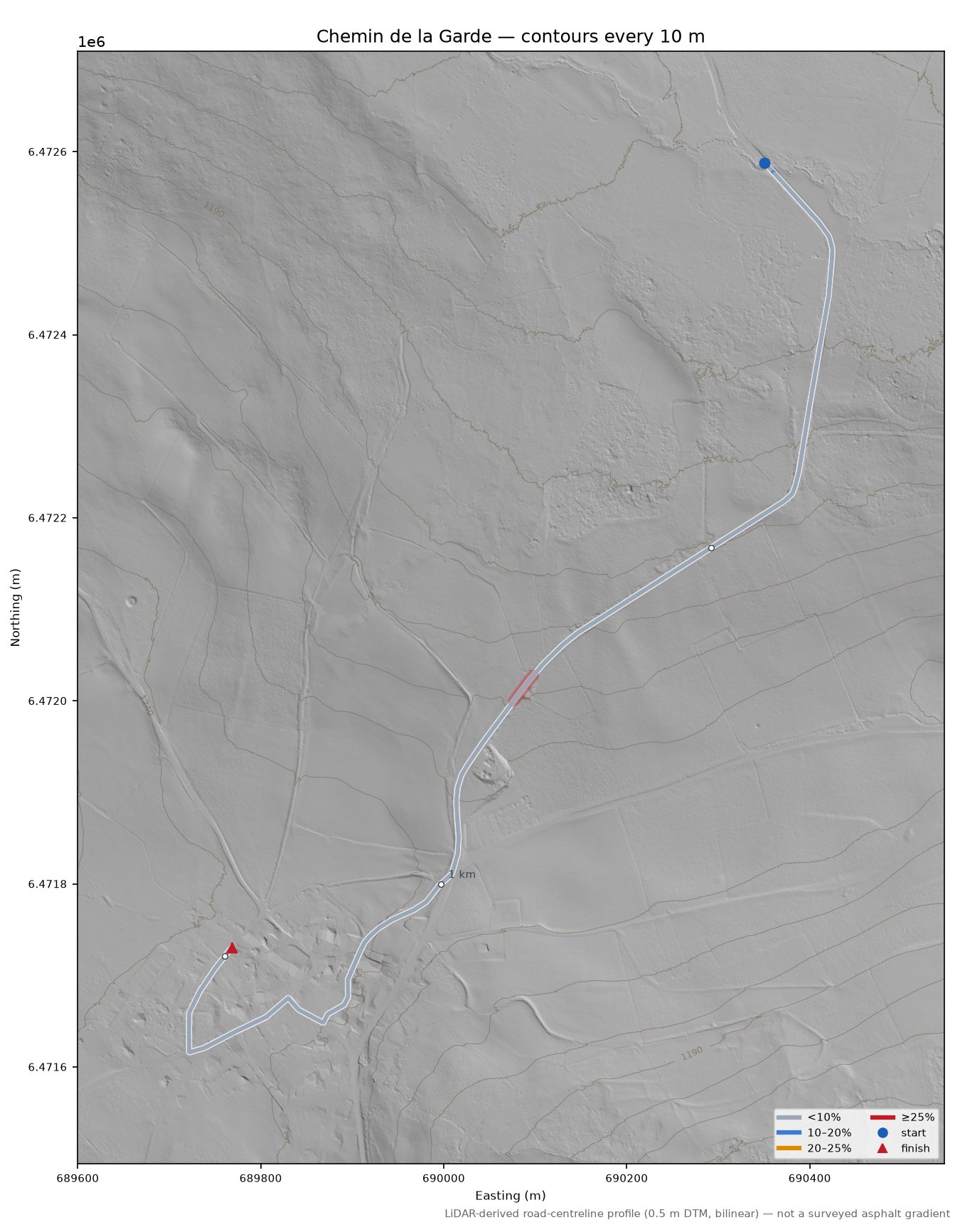

Chemin de la Garde LiDAR hillshade map with contours

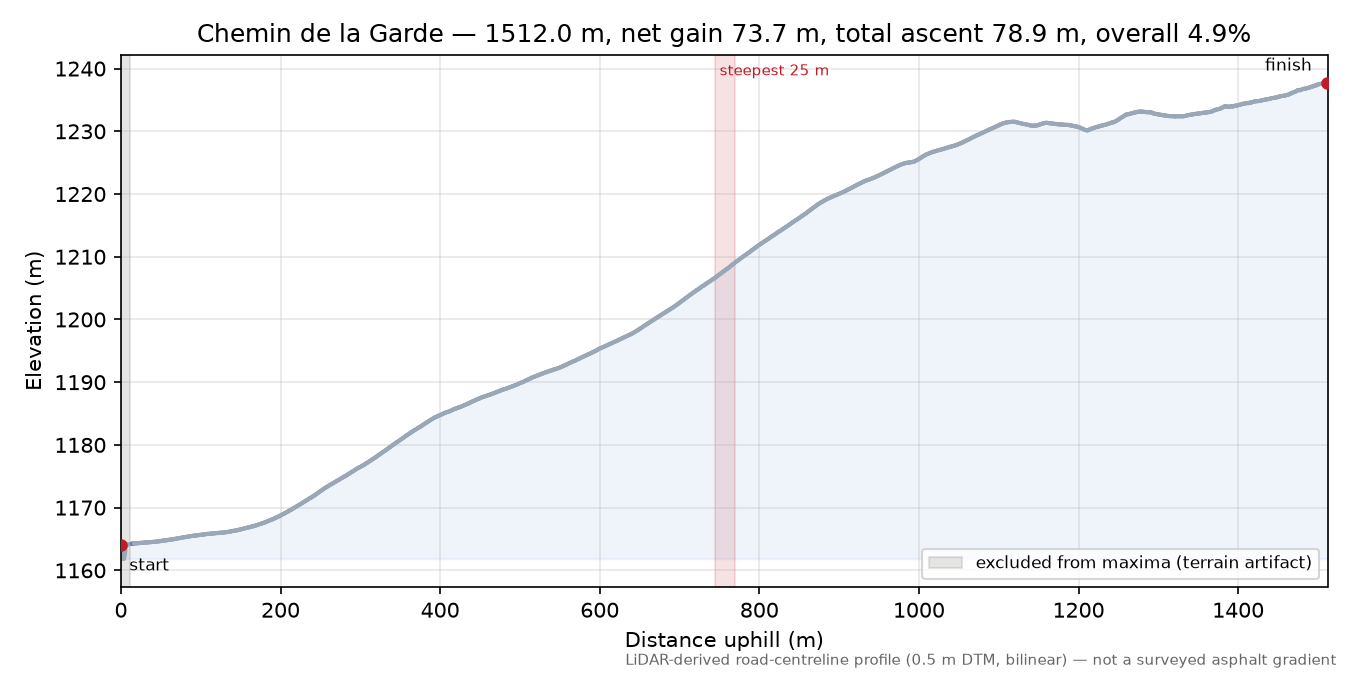

Profile

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	IGN LiDAR HD MNT 0.5 m — LiDAR HD — MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information géographique et forestière), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69
Resolution / CRS	0.5 m grid, EPSG:2154; sampled every 1.0 m, bilinear interpolation
Tiles	E689-N6471, E689-N6472, E690-N6471, E690-N6472
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality B; caveated windows: structure excluded, structure excluded min
Analysis	OCL 0.1.0, analysis 0.1.0, run fr-mc4, calculated 2026-09-22

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "1cc9fdcd6556a02163cb21acb2293cad3067d2a1",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:8c94015b54267da4",
    "python": "3.14.4",
    "numpy": "2.5.3",
    "rasterio": "1.5.1",
    "pyproj": "3.8.0",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.8.1",
    "run_id": "fr-mc4",
    "road_pbf": "block-batch-fr-mc4.osm.pbf",
    "region_key": "france",
    "crs": "EPSG:2154",
    "elevation_provider_key": "ign-lidarhd",
    "tile_index": "wms-grid",
    "authority": "bdtopo",
    "registry_pbf": "france-vosges-2026-09-16.osm.pbf",
    "tile_index_snapshot": "sha256:af4eae1f5df9e232"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:2154",
  "elevation_resolution_m": 0.5,
  "elevation_tiles": [
    "data/cache/fr/ign-lidarhd_dtm_E689-N6471_0m5@21LHD4LM-2025-06-26.tif",
    "data/cache/fr/ign-lidarhd_dtm_E689-N6472_0m5@21LHD4LM-2025-06-26.tif",
    "data/cache/fr/ign-lidarhd_dtm_E690-N6471_0m5@21LHD4LM-2025-06-26.tif",
    "data/cache/fr/ign-lidarhd_dtm_E690-N6472_0m5@21LHD4LM-2025-06-26.tif"
  ],
  "calculated_at": "2026-09-22T18:39:01+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/block-batch-fr-mc4.osm.pbf",
  "osm_snapshot": "",
  "run_id": "fr-mc4",
  "elevation_provider": "IGN LiDAR HD MNT 0.5 m",
  "elevation_licence": "Licence Ouverte / Open Licence 2.0 (Etalab) \u2014 \u00a9 IGN, LiDAR HD (MNT/MNS), data.geopf.fr; reproduction autoris\u00e9e avec mention de la source et de la date",
  "elevation_dataset": "LiDAR HD \u2014 MNT (sol) et MNS (surface), 0,50 m (Institut national de l'information g\u00e9ographique et foresti\u00e8re), RGF93 / Lambert-93 EPSG:2154, altitudes IGN69",
  "elevation_vertical_datum": "IGN69",
  "elevation_tile_ids": [
    "E689-N6471",
    "E689-N6472",
    "E690-N6471",
    "E690-N6472"
  ],
  "elevation_blocks": [
    "21LHD4LM@2025-06-26"
  ],
  "ign_dalles": [
    "LHD_FXX_0689_6472_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0689_6473_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0690_6472_MNT_O_0M50_LAMB93_IGN69",
    "LHD_FXX_0690_6473_MNT_O_0M50_LAMB93_IGN69"
  ],
  "ign_missions": [
    "21LHD4LM"
  ],
  "ign_editions": [
    "2025-06-26"
  ],
  "ign_dsm_edition": {
    "LHD_FXX_0689_6472_MNT_O_0M50_LAMB93_IGN69": "2025-06-26",
    "LHD_FXX_0689_6473_MNT_O_0M50_LAMB93_IGN69": "2025-06-26",
    "LHD_FXX_0690_6472_MNT_O_0M50_LAMB93_IGN69": "2025-06-26",
    "LHD_FXX_0690_6473_MNT_O_0M50_LAMB93_IGN69": "2025-06-26"
  },
  "route_summit_trim_m": 86.6,
  "route_summit_trim_loss_m": 4.8,
  "climb_origin": "named-pass",
  "structure_own_ways": 12,
  "structure_mask_ranges_m": [
    [
      0.0,
      7.1
    ]
  ],
  "carriageway": {
    "stations": 66,
    "stations_resolved": 66,
    "width_median_m": 6.5,
    "width_p10_m": 4.5,
    "width_min_m": 3.0,
    "width_max_m": 12.0,
    "bounded_share": 0.106,
    "unbounded_share": 0.894,
    "confidence_median": 0.0,
    "width_median_bounded_m": 4.75,
    "window_m": [
      745.0,
      770.0
    ],
    "width_at_max25_m": 6.0,
    "window_stations": 6,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 66,
      "stations_resolved": 66,
      "width_median_m": 9.25,
      "width_p10_m": 2.25,
      "width_min_m": 0.5,
      "width_max_m": 12.0,
      "bounded_share": 0.455,
      "unbounded_share": 0.545,
      "confidence_median": 0.0,
      "width_median_bounded_m": 4.62,
      "window_m": [
        745.0,
        770.0
      ],
      "width_at_max25_m": 9.38,
      "window_stations": 6,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
