Gravel / dirt track · listed, not ranked
1429.7 m · net rise 176.0 m · total ascent 177.6 m · overall 12.3% · evidence quality B (good) · Seefeld in Tirol · Tirol
Shape: sustained — 32% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 207 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the GIP.at road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
Tourengeherweg (Seefeld in Tirol, Tirol) is 1429.7 m long at 12.3% overall; its steepest 25 m averages 22.1% and its steepest 100 m ≈20.0%, measured from Austria's national 1 m airborne-laser terrain model along the mapped road centreline.

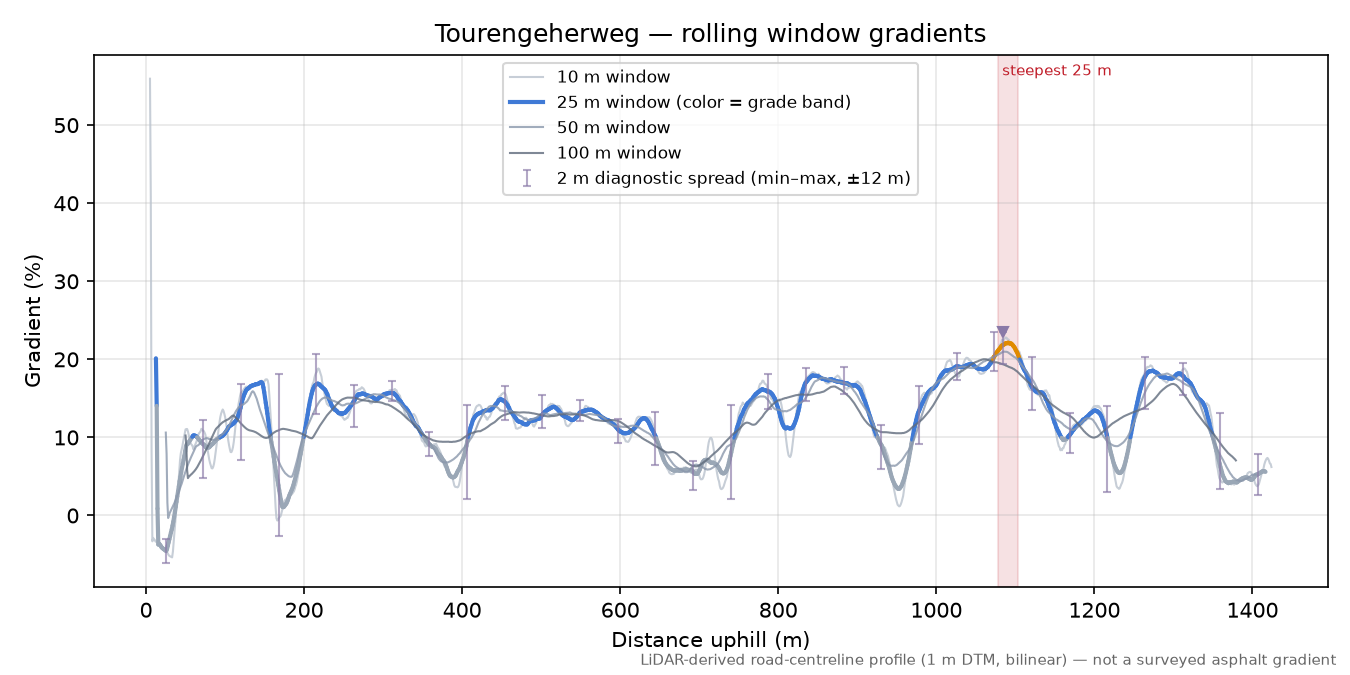

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈23% | 1083–1085 m | under overhead cover terrain reads 236.3% at 0–2 m across a structure — excluded |
| 3 m (diagnostic) | ≈23% | 1082–1085 m | under overhead cover terrain reads 194.5% at 0–3 m across a structure — excluded |
| 5 m | ≈23% | 1083–1088 m | under overhead cover terrain reads 114.8% at 0–5 m across a structure — excluded |
| 10 m | ≈23% | 1083–1093 m | under overhead cover terrain reads 55.9% at 0–10 m across a structure — excluded |
| 20 m | ≈22.3% | 1078–1098 m | under overhead cover terrain reads 26.3% at 0–20 m across a structure — excluded |
| 25 m | 22.1% | 1078–1103 m | |
| 50 m | ≈21.0% | 1062–1112 m | under overhead cover |
| 100 m | ≈20.0% | 1011–1111 m | under overhead cover |
may start earlier Extent detection suggests reviewing where this climb starts/ends.

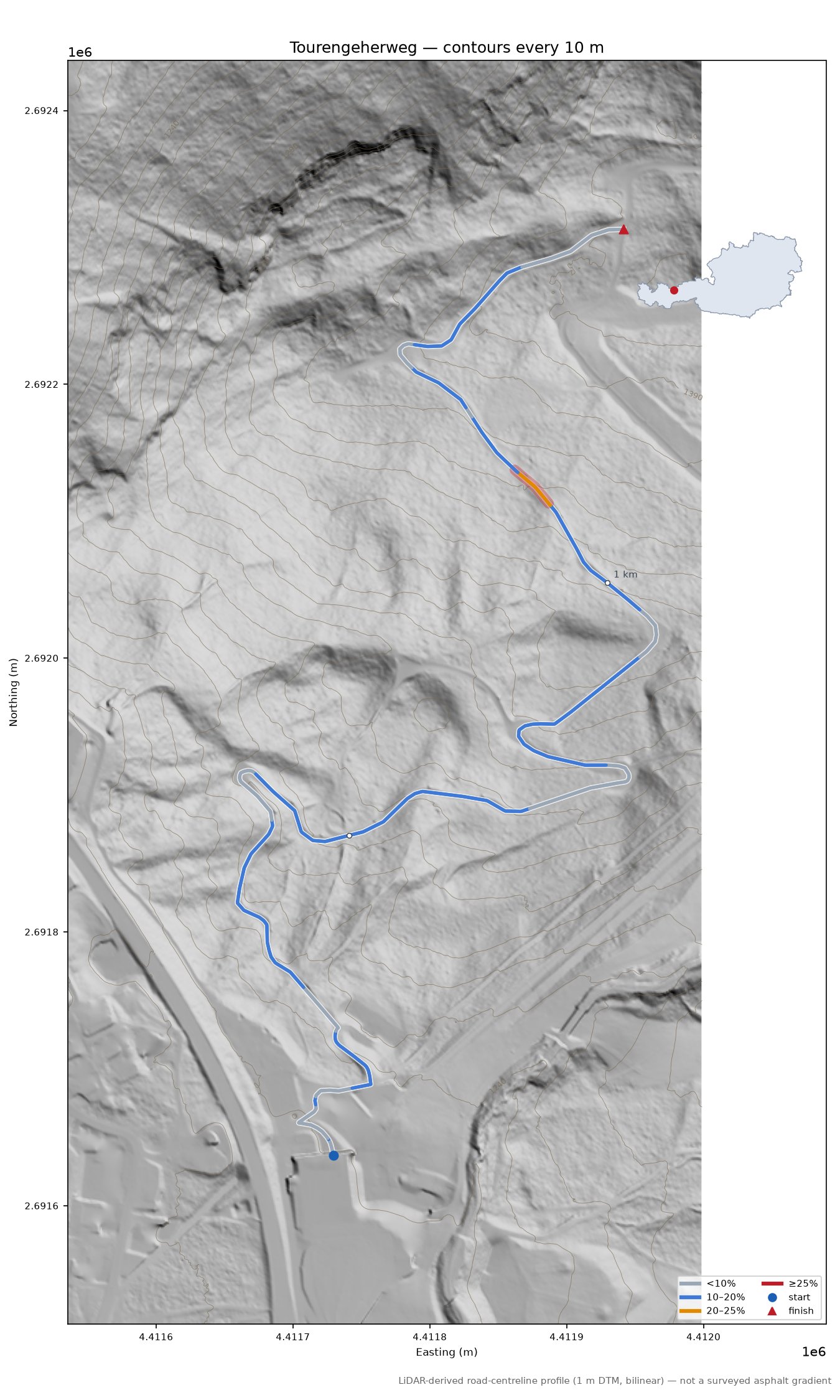

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: unpaved (100% unpaved), according to GIP.at, Austria's official transport graph: surface unrecorded for the first 85 m; unpaved from 85 m to the top. The steepest 25 m lies on the unpaved part.
Pending human review: the steepest stretch of this climb (1078–1103 m) looks like a track rather than a made road: the road ends before it: the measured line carries on past the last mapped road, up a track or across a field (about 100% of the steepest 25 m and 89% of the line). The figure is published as measured and has not been adjusted, but a climb whose steepest stretch looks like a track is listed, not ranked, until a person has looked.
Access: Listed 2026-09-12 (Austria wave 3 extent pass (public continuation kept)): road audit — way 702504213: unnamed service way; way 702504213: service way, surface untagged. Never silently ranked or dropped.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery © basemap.at (CC BY 4.0)

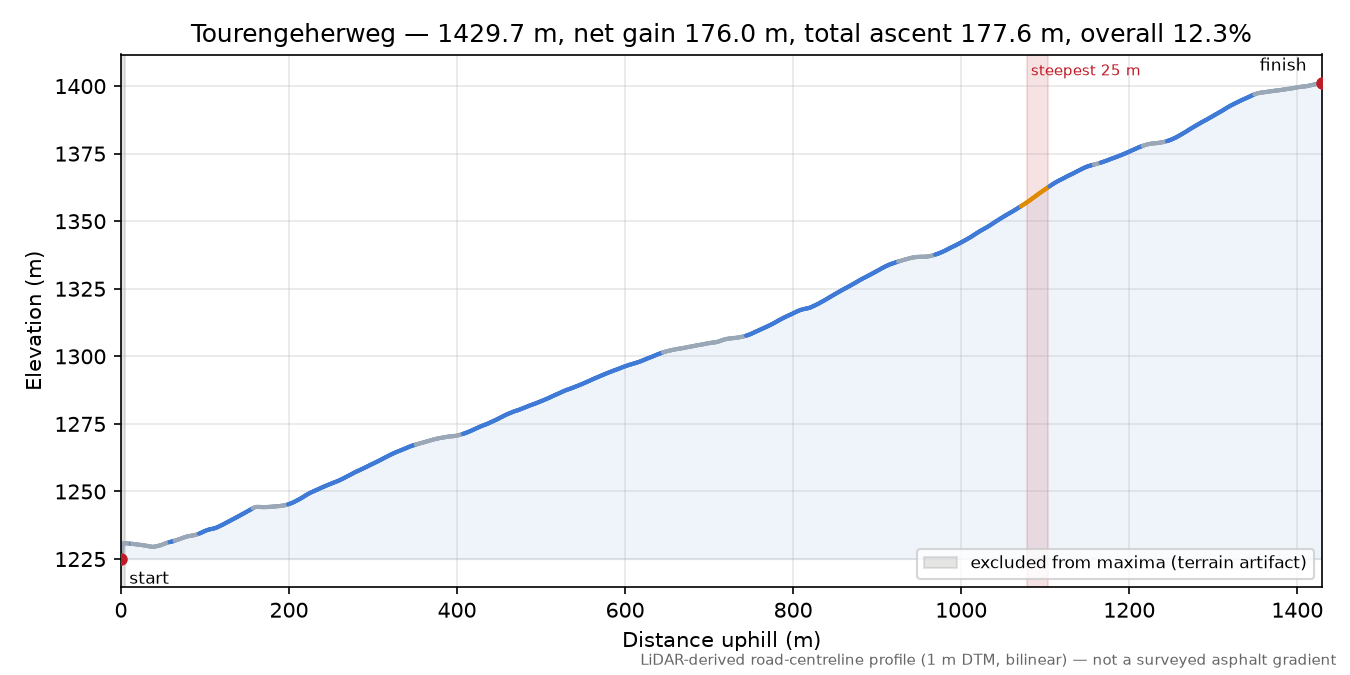

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035 |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation |
| Tiles | E4411-N2691, E4411-N2692 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality B; caveated windows: replay excluded min, structure excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run at-run3-260912, calculated 2026-09-12 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:3035",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/at/bev-als_dtm_E4411-N2691.tif",
"data/cache/at/bev-als_dtm_E4411-N2692.tif"
],
"calculated_at": "2026-09-12T18:24:12+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch.osm.pbf",
"osm_snapshot": "",
"run_id": "at-run3-260912",
"elevation_provider": "BEV ALS DTM 1 m",
"elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
"elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
"elevation_tile_ids": [
"E4411-N2691",
"E4411-N2692"
],
"elevation_blocks": [
"N2650000E4400000@2022-09-15"
],
"climb_origin": "discovered",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
