Timmelsjoch Hochalpenstraße
18892.1 m · net rise 999.4 m · total ascent 1217.9 m · overall 5.3% · evidence quality B (good) · Sölden · Tirol · share
Shape: sustained — 34% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 409 m.
Matches: Ötztaler Radmarathon, Toll alpine roads (operators' pages) — Timmelsjoch — the marathon's final pass; this page covers the tolled Hochgurgl to pass section — Timmelsjoch Hochalpenstraße — toll alpine road with a published tariff (bicycles free).
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈31% | 5065–5067 m | under overhead cover terrain reads 287.2% at 4982–4984 m across a structure — excluded |
| 3 m (diagnostic) | ≈13% | 5086–5089 m | under overhead cover terrain reads 242.9% at 5673–5676 m across a structure — excluded |
| 5 m | ≈13% | 5083–5088 m | under overhead cover terrain reads 216.4% at 5672–5677 m across a structure — excluded |
| 10 m | ≈12% | 9508–9518 m | under overhead cover terrain reads 176.8% at 5670–5680 m across a structure — excluded |
| 20 m | ≈12.2% | 9543–9563 m | under overhead cover terrain reads 129.6% at 5669–5689 m across a structure — excluded |
| 25 m | ≈12.2% | 9508–9533 m | under overhead cover terrain reads 114.9% at 5667–5692 m across a structure — excluded |
| 50 m | ≈12.1% | 9508–9558 m | under overhead cover terrain reads 60.2% at 5666–5716 m across a structure — excluded |
| 100 m | ≈12.0% | 9473–9573 m | under overhead cover terrain reads 32.7% at 5666–5766 m across a structure — excluded |
may continue beyond end Extent detection suggests reviewing where this climb starts/ends.

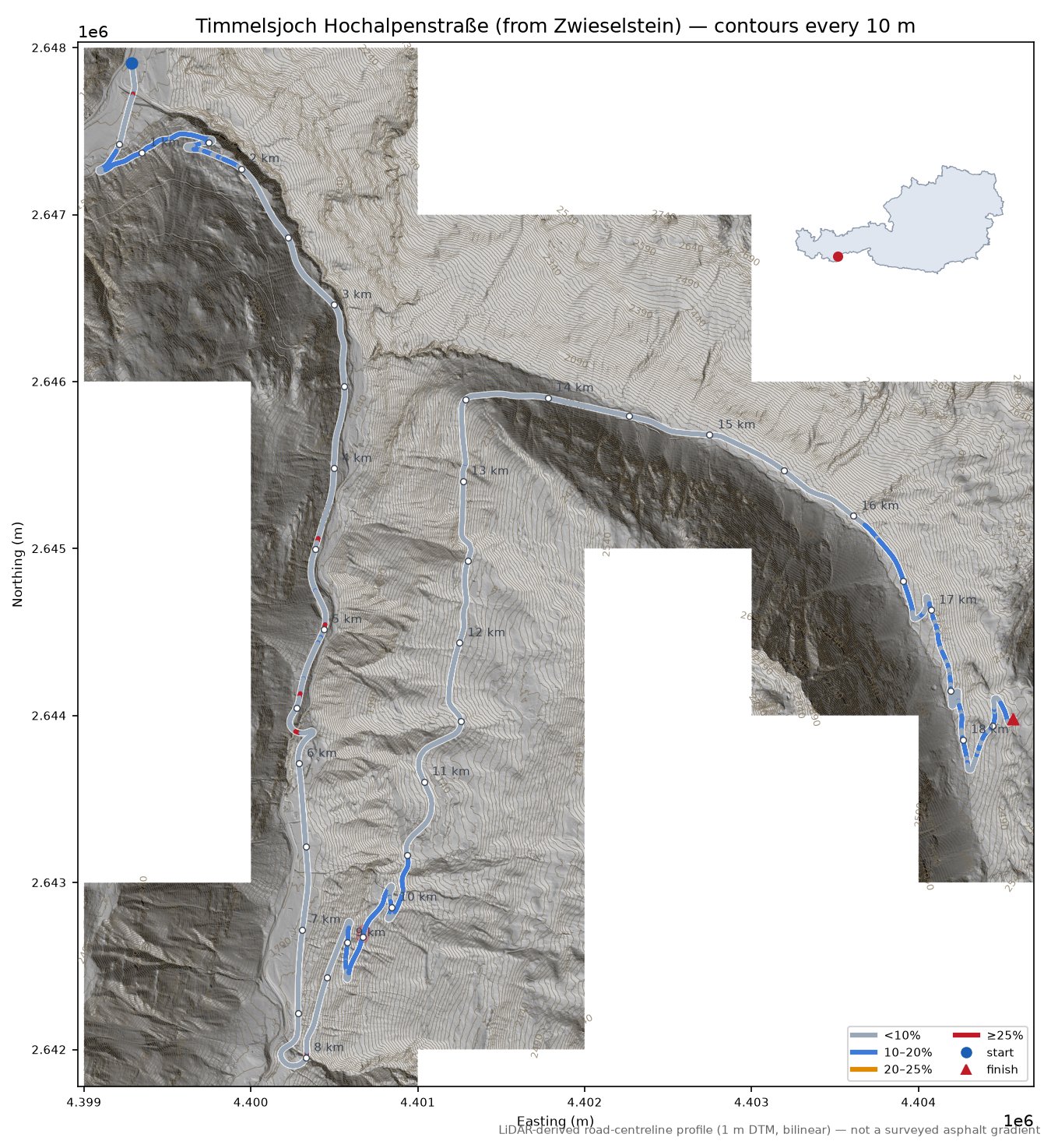

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: GIP.at, Austria's official transport graph records no surface for this road; the map may tell you more.
Access: Toll road: the Timmelsjoch Hochalpenstraße charges motor vehicles; bicycles free (operator's tariff page; the road is shut 20:00–07:00 and from November to May).
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery © basemap.at (CC BY 4.0)

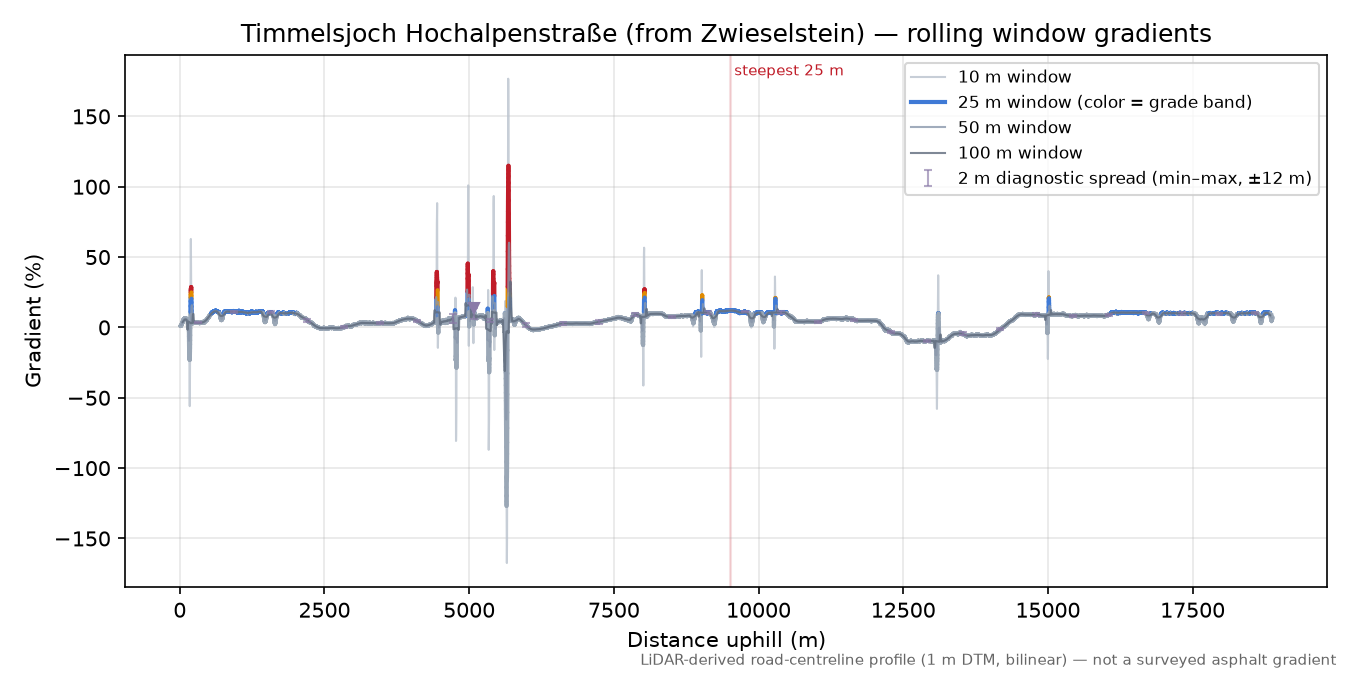

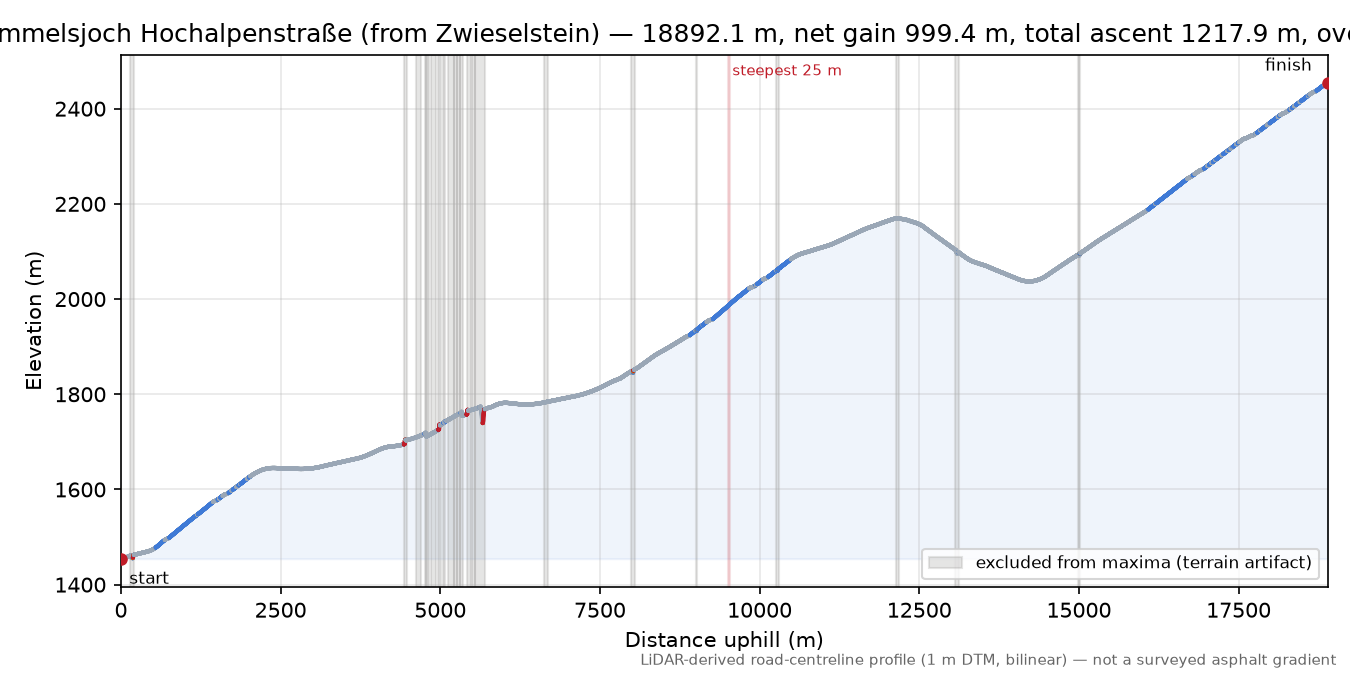

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035 |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation |
| Tiles | E4399-N2641, E4399-N2642, E4399-N2646, E4399-N2647, E4400-N2641, E4400-N2642, E4400-N2643, E4400-N2644, E4400-N2645, E4400-N2646, E4400-N2647, E4401-N2642, E4401-N2643, E4401-N2644, E4401-N2645, E4401-N2646, E4402-N2645, E4402-N2646, E4403-N2644, E4403-N2645, E4404-N2643, E4404-N2644, E4404-N2645 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality B; caveated windows: canopy or structure, structure excluded, texture excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run passes-at-rerun-260915, calculated 2026-09-15 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:3035",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/at/bev-als_dtm_E4399-N2641.tif",
"data/cache/at/bev-als_dtm_E4399-N2642.tif",
"data/cache/at/bev-als_dtm_E4399-N2646.tif",
"data/cache/at/bev-als_dtm_E4399-N2647.tif",
"data/cache/at/bev-als_dtm_E4400-N2641.tif",
"data/cache/at/bev-als_dtm_E4400-N2642.tif",
"data/cache/at/bev-als_dtm_E4400-N2643.tif",
"data/cache/at/bev-als_dtm_E4400-N2644.tif",
"data/cache/at/bev-als_dtm_E4400-N2645.tif",
"data/cache/at/bev-als_dtm_E4400-N2646.tif",
"data/cache/at/bev-als_dtm_E4400-N2647.tif",
"data/cache/at/bev-als_dtm_E4401-N2642.tif",
"data/cache/at/bev-als_dtm_E4401-N2643.tif",
"data/cache/at/bev-als_dtm_E4401-N2644.tif",
"data/cache/at/bev-als_dtm_E4401-N2645.tif",
"data/cache/at/bev-als_dtm_E4401-N2646.tif",
"data/cache/at/bev-als_dtm_E4402-N2645.tif",
"data/cache/at/bev-als_dtm_E4402-N2646.tif",
"data/cache/at/bev-als_dtm_E4403-N2644.tif",
"data/cache/at/bev-als_dtm_E4403-N2645.tif",
"data/cache/at/bev-als_dtm_E4404-N2643.tif",
"data/cache/at/bev-als_dtm_E4404-N2644.tif",
"data/cache/at/bev-als_dtm_E4404-N2645.tif"
],
"calculated_at": "2026-09-15T06:03:58+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch-at-passes.osm.pbf",
"osm_snapshot": "",
"run_id": "passes-at-rerun-260915",
"elevation_provider": "BEV ALS DTM 1 m",
"elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
"elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
"elevation_tile_ids": [
"E4399-N2641",
"E4399-N2642",
"E4399-N2646",
"E4399-N2647",
"E4400-N2641",
"E4400-N2642",
"E4400-N2643",
"E4400-N2644",
"E4400-N2645",
"E4400-N2646",
"E4400-N2647",
"E4401-N2642",
"E4401-N2643",
"E4401-N2644",
"E4401-N2645",
"E4401-N2646",
"E4402-N2645",
"E4402-N2646",
"E4403-N2644",
"E4403-N2645",
"E4404-N2643",
"E4404-N2644",
"E4404-N2645"
],
"elevation_blocks": [
"N2600000E4350000@2022-09-15",
"N2600000E4400000@2022-09-15"
],
"bev_dsm_release": {
"N2600000E4350000": "20220915",
"N2600000E4400000": "20220915"
},
"bev_dsm_release_notes": {
"N2600000E4350000": "aligned-alternative"
},
"climb_origin": "named-pass",
"structure_own_ways": "none \u2014 the route carried no way list; own decks unmasked",
"structure_mask_ranges_m": [
[
152.8,
182.8
],
[
4665.3,
4695.3
],
[
4635.7,
4665.7
],
[
4628.1,
4658.1
],
[
4444.2,
4474.2
],
[
4899.6,
4929.6
],
[
4857.4,
4887.4
],
[
4858.1,
4888.1
],
[
4857.0,
4887.0
],
[
4791.8,
4821.8
],
[
5605.5,
5635.5
],
[
5601.4,
5631.4
],
[
5507.5,
5537.5
],
[
5452.0,
5482.0
],
[
5586.0,
5616.0
],
[
5556.8,
5586.8
],
[
5426.8,
5456.8
],
[
4962.7,
4992.7
],
[
5029.1,
5059.1
],
[
5183.5,
5213.5
],
[
4995.7,
5025.7
],
[
5225.7,
5255.7
],
[
5267.7,
5297.7
],
[
4989.5,
5019.5
],
[
5131.6,
5161.6
],
[
5148.1,
5178.1
],
[
5158.1,
5188.1
],
[
5316.0,
5346.0
],
[
5656.7,
5686.7
],
[
5634.7,
5664.7
],
[
6628.9,
6658.9
],
[
6645.5,
6675.5
],
[
7991.0,
8021.0
],
[
8011.6,
8041.6
],
[
12146.1,
12176.1
],
[
10268.3,
10298.3
],
[
10264.1,
10294.1
],
[
14988.9,
15018.9
],
[
12136.2,
12166.2
],
[
12144.6,
12174.6
],
[
13095.7,
13125.7
],
[
13066.5,
13096.5
]
],
"mask_basin_extension_m": 9.0,
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
