Kühtai (east side)

26346.0 m · net rise 1380.5 m · total ascent 1564.5 m · overall 5.2% · evidence quality B (good) · Zirl · Tirol · share

Shape: sustained — 35% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 894 m.

Matches: Wikipedia — Kühtaisattel — the same pass from the Sellraintal side; Wikipedia pass article.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈34%	5600–5602 m	under overhead cover terrain reads 307.7% at 22591–22593 m across a structure — excluded
3 m (diagnostic)	≈30%	6999–7002 m	under overhead cover terrain reads 248.4% at 23191–23194 m across a structure and ground that holds no carriageway surface at the route line (sunken, walled or sharply embanked) — excluded
5 m	≈25%	856–861 m	under overhead cover terrain reads 169.3% at 23190–23195 m across a structure — excluded
10 m	≈20%	854–864 m	under overhead cover terrain reads 97.7% at 5446–5456 m across a structure — excluded
20 m	≈15.5%	15177–15197 m	under overhead cover terrain reads 52.2% at 23179–23199 m across a structure — excluded
25 m	≈15.4%	15207–15232 m	under overhead cover terrain reads 43.9% at 23173–23198 m across a structure — excluded
50 m	≈15.4%	15179–15229 m	under overhead cover terrain reads 30.0% at 6980–7030 m across a structure — excluded
100 m	≈15.3%	15141–15241 m	under overhead cover terrain reads 18.3% at 23098–23198 m across a structure — excluded

descends at end Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: GIP.at, Austria's official transport graph records no surface for this road; the map may tell you more.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Kühtai (east side) LiDAR hillshade map with contours

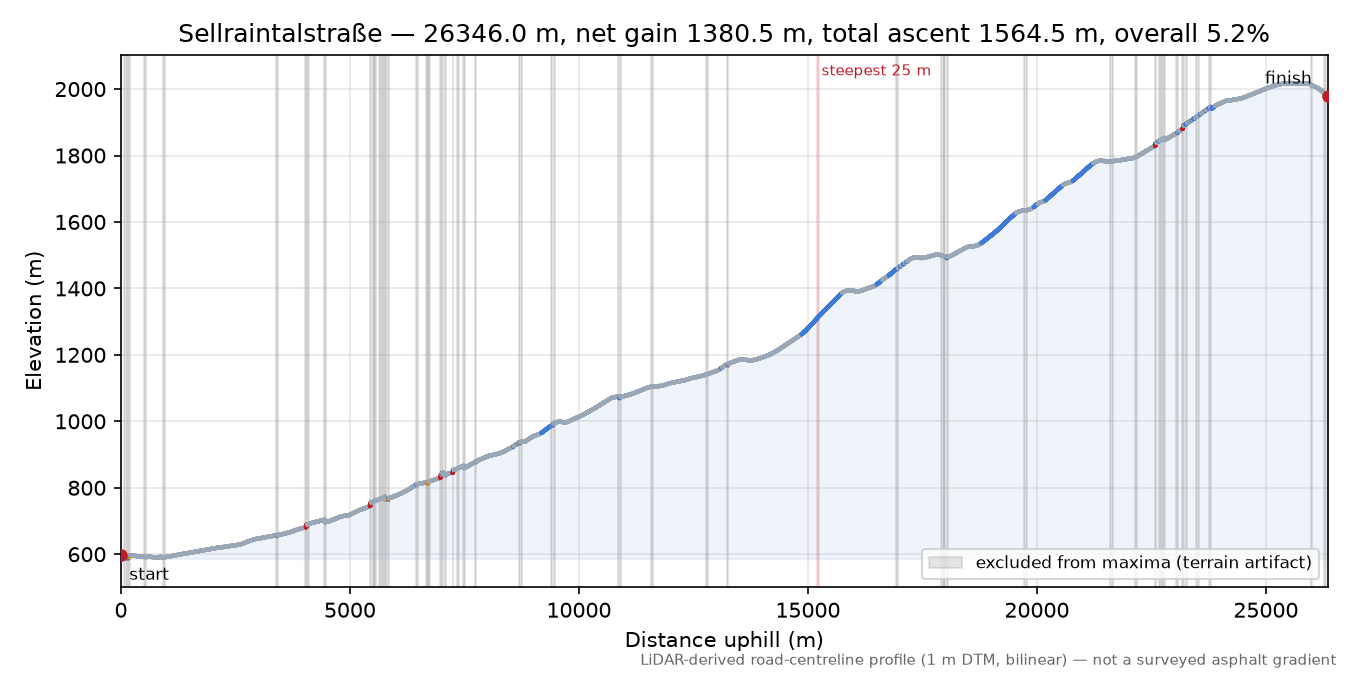

Profile

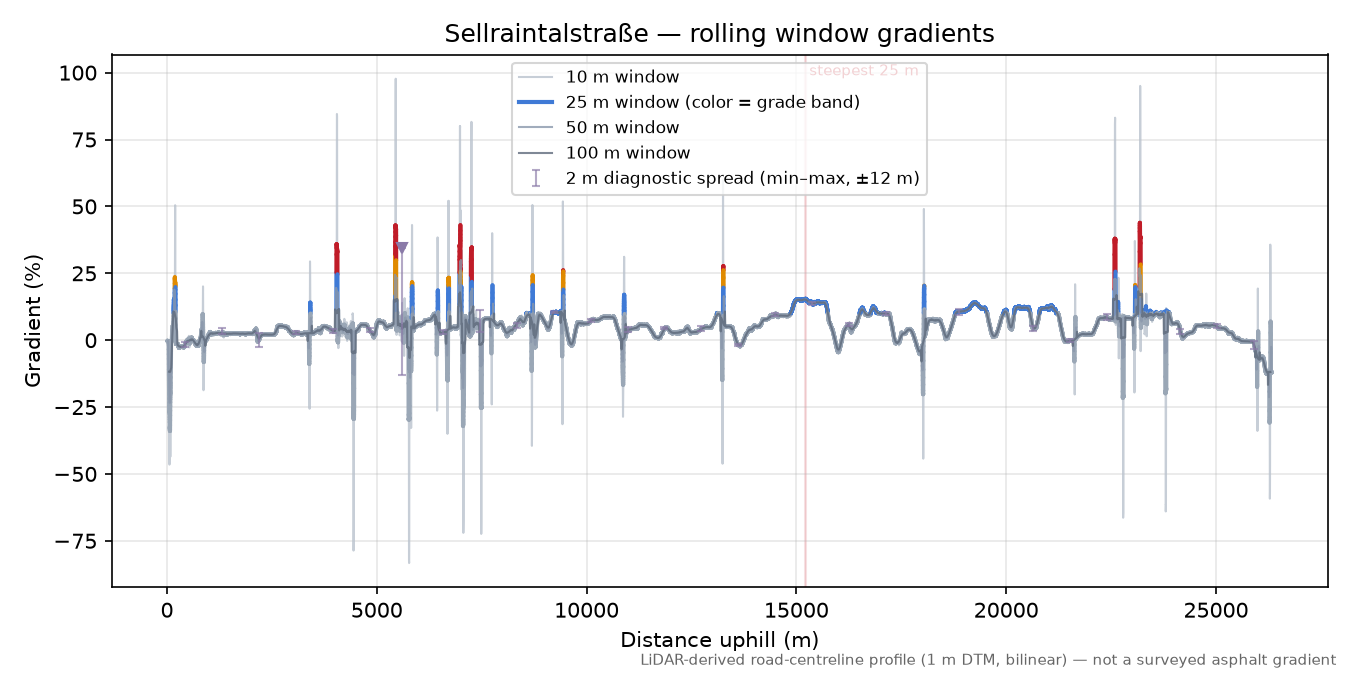

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035
Resolution / CRS	1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation
Tiles	E4398-N2677, E4398-N2678, E4399-N2678, E4399-N2679, E4400-N2678, E4400-N2679, E4401-N2678, E4401-N2679, E4402-N2677, E4402-N2678, E4402-N2679, E4403-N2677, E4403-N2678, E4404-N2676, E4404-N2677, E4405-N2676, E4405-N2677, E4406-N2676, E4406-N2677, E4407-N2676, E4407-N2677, E4408-N2676, E4409-N2676, E4409-N2677, E4410-N2676, E4410-N2677, E4411-N2677, E4411-N2678, E4412-N2677, E4412-N2678, E4413-N2678, E4413-N2679, E4414-N2679, E4414-N2680, E4415-N2679, E4415-N2680, E4415-N2681, E4416-N2680, E4416-N2681, E4416-N2682, E4416-N2683, E4416-N2684, E4417-N2682, E4417-N2683, E4417-N2684
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality B; caveated windows: canopy or structure, placement excluded, structure excluded
Analysis	OCL 0.1.0, analysis 0.1.0, run at-passes-260915, calculated 2026-09-15

Provenance

{
  "analysis_version": "0.1.0",
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:3035",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/at/bev-als_dtm_E4398-N2677.tif",
    "data/cache/at/bev-als_dtm_E4398-N2678.tif",
    "data/cache/at/bev-als_dtm_E4399-N2678.tif",
    "data/cache/at/bev-als_dtm_E4399-N2679.tif",
    "data/cache/at/bev-als_dtm_E4400-N2678.tif",
    "data/cache/at/bev-als_dtm_E4400-N2679.tif",
    "data/cache/at/bev-als_dtm_E4401-N2678.tif",
    "data/cache/at/bev-als_dtm_E4401-N2679.tif",
    "data/cache/at/bev-als_dtm_E4402-N2677.tif",
    "data/cache/at/bev-als_dtm_E4402-N2678.tif",
    "data/cache/at/bev-als_dtm_E4402-N2679.tif",
    "data/cache/at/bev-als_dtm_E4403-N2677.tif",
    "data/cache/at/bev-als_dtm_E4403-N2678.tif",
    "data/cache/at/bev-als_dtm_E4404-N2676.tif",
    "data/cache/at/bev-als_dtm_E4404-N2677.tif",
    "data/cache/at/bev-als_dtm_E4405-N2676.tif",
    "data/cache/at/bev-als_dtm_E4405-N2677.tif",
    "data/cache/at/bev-als_dtm_E4406-N2676.tif",
    "data/cache/at/bev-als_dtm_E4406-N2677.tif",
    "data/cache/at/bev-als_dtm_E4407-N2676.tif",
    "data/cache/at/bev-als_dtm_E4407-N2677.tif",
    "data/cache/at/bev-als_dtm_E4408-N2676.tif",
    "data/cache/at/bev-als_dtm_E4409-N2676.tif",
    "data/cache/at/bev-als_dtm_E4409-N2677.tif",
    "data/cache/at/bev-als_dtm_E4410-N2676.tif",
    "data/cache/at/bev-als_dtm_E4410-N2677.tif",
    "data/cache/at/bev-als_dtm_E4411-N2677.tif",
    "data/cache/at/bev-als_dtm_E4411-N2678.tif",
    "data/cache/at/bev-als_dtm_E4412-N2677.tif",
    "data/cache/at/bev-als_dtm_E4412-N2678.tif",
    "data/cache/at/bev-als_dtm_E4413-N2678.tif",
    "data/cache/at/bev-als_dtm_E4413-N2679.tif",
    "data/cache/at/bev-als_dtm_E4414-N2679.tif",
    "data/cache/at/bev-als_dtm_E4414-N2680.tif",
    "data/cache/at/bev-als_dtm_E4415-N2679.tif",
    "data/cache/at/bev-als_dtm_E4415-N2680.tif",
    "data/cache/at/bev-als_dtm_E4415-N2681.tif",
    "data/cache/at/bev-als_dtm_E4416-N2680.tif",
    "data/cache/at/bev-als_dtm_E4416-N2681.tif",
    "data/cache/at/bev-als_dtm_E4416-N2682.tif",
    "data/cache/at/bev-als_dtm_E4416-N2683.tif",
    "data/cache/at/bev-als_dtm_E4416-N2684.tif",
    "data/cache/at/bev-als_dtm_E4417-N2682.tif",
    "data/cache/at/bev-als_dtm_E4417-N2683.tif",
    "data/cache/at/bev-als_dtm_E4417-N2684.tif"
  ],
  "calculated_at": "2026-09-15T05:43:44+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch-at-passes.osm.pbf",
  "osm_snapshot": "",
  "run_id": "at-passes-260915",
  "elevation_provider": "BEV ALS DTM 1 m",
  "elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
  "elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
  "elevation_tile_ids": [
    "E4398-N2677",
    "E4398-N2678",
    "E4399-N2678",
    "E4399-N2679",
    "E4400-N2678",
    "E4400-N2679",
    "E4401-N2678",
    "E4401-N2679",
    "E4402-N2677",
    "E4402-N2678",
    "E4402-N2679",
    "E4403-N2677",
    "E4403-N2678",
    "E4404-N2676",
    "E4404-N2677",
    "E4405-N2676",
    "E4405-N2677",
    "E4406-N2676",
    "E4406-N2677",
    "E4407-N2676",
    "E4407-N2677",
    "E4408-N2676",
    "E4409-N2676",
    "E4409-N2677",
    "E4410-N2676",
    "E4410-N2677",
    "E4411-N2677",
    "E4411-N2678",
    "E4412-N2677",
    "E4412-N2678",
    "E4413-N2678",
    "E4413-N2679",
    "E4414-N2679",
    "E4414-N2680",
    "E4415-N2679",
    "E4415-N2680",
    "E4415-N2681",
    "E4416-N2680",
    "E4416-N2681",
    "E4416-N2682",
    "E4416-N2683",
    "E4416-N2684",
    "E4417-N2682",
    "E4417-N2683",
    "E4417-N2684"
  ],
  "elevation_blocks": [
    "N2650000E4350000@2022-09-15",
    "N2650000E4400000@2022-09-15"
  ],
  "climb_origin": "named-pass",
  "structure_own_ways": "none \u2014 the route carried no way list; own decks unmasked",
  "structure_mask_ranges_m": [
    [
      22725.4,
      22755.4
    ],
    [
      22708.1,
      22738.1
    ],
    [
      22727.6,
      22757.6
    ],
    [
      22663.7,
      22693.7
    ],
    [
      915.1,
      945.1
    ],
    [
      26264.5,
      26294.5
    ],
    [
      26280.8,
      26310.8
    ],
    [
      10877.2,
      10907.2
    ],
    [
      10874.3,
      10904.3
    ],
    [
      62.9,
      92.9
    ],
    [
      23511.3,
      23541.3
    ],
    [
      23487.1,
      23517.1
    ],
    [
      23769.5,
      23799.5
    ],
    [
      23482.0,
      23512.0
    ],
    [
      23254.9,
      23284.9
    ],
    [
      23183.9,
      23213.9
    ],
    [
      5536.6,
      5566.6
    ],
    [
      5697.3,
      5727.3
    ],
    [
      5475.1,
      5505.1
    ],
    [
      5474.4,
      5504.4
    ],
    [
      5701.0,
      5731.0
    ],
    [
      5459.9,
      5489.9
    ],
    [
      5492.3,
      5522.3
    ],
    [
      5454.5,
      5484.5
    ],
    [
      4035.0,
      4065.0
    ],
    [
      4434.3,
      4464.3
    ],
    [
      6660.6,
      6690.6
    ],
    [
      6705.5,
      6735.5
    ],
    [
      5813.1,
      5843.1
    ],
    [
      5799.6,
      5829.6
    ],
    [
      21611.9,
      21641.9
    ],
    [
      21630.9,
      21660.9
    ],
    [
      22152.8,
      22182.8
    ],
    [
      13229.7,
      13259.7
    ],
    [
      23041.0,
      23071.0
    ],
    [
      19734.2,
      19764.2
    ],
    [
      19760.9,
      19790.9
    ],
    [
      18026.7,
      18056.7
    ],
    [
      18024.7,
      18054.7
    ],
    [
      17982.4,
      18012.4
    ],
    [
      9402.9,
      9432.9
    ],
    [
      9424.3,
      9454.3
    ],
    [
      7469.8,
      7499.8
    ],
    [
      7338.0,
      7368.0
    ],
    [
      6441.0,
      6471.0
    ],
    [
      919.5,
      949.5
    ],
    [
      8695.2,
      8725.2
    ],
    [
      8689.1,
      8719.1
    ],
    [
      174.6,
      204.6
    ],
    [
      156.2,
      186.2
    ],
    [
      515.4,
      545.4
    ],
    [
      149.0,
      179.0
    ],
    [
      65.1,
      95.1
    ],
    [
      94.2,
      124.2
    ],
    [
      7042.6,
      7072.6
    ],
    [
      7011.9,
      7041.9
    ],
    [
      3395.2,
      3425.2
    ],
    [
      17916.9,
      17946.9
    ],
    [
      17928.5,
      17958.5
    ],
    [
      16935.0,
      16965.0
    ],
    [
      16938.9,
      16968.9
    ],
    [
      12776.8,
      12806.8
    ],
    [
      12780.1,
      12810.1
    ],
    [
      11579.8,
      11609.8
    ],
    [
      11585.7,
      11615.7
    ]
  ],
  "mask_basin_extension_m": 82.0,
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
