Panoramastraße Kitzbüheler Horn

5006.0 m · net rise 650.0 m · overall 13.0% · evidence quality B (good) · Kitzbühel · Tirol · share

Shape: sustained — 28% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 1284 m.

Matches: Wikipedia — Kitzbüheler Horn — Panoramastraße to the summit; the classic Österreich-Rundfahrt (Tour of Austria) summit finish.

≈ Overhead cover (tree canopy or structures) spans 6% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	26%	4119–4121 m
3 m (diagnostic)	24%	4119–4122 m
5 m	23%	4119–4124 m
10 m	21%	4114–4124 m
20 m	19.4%	4108–4128 m
25 m	≈18.9%	4105–4130 m	under overhead cover
50 m	17.6%	4174–4224 m
100 m	16.8%	4114–4214 m

Measured on the mapped road line; moving the line 1 m either way reads 18.5–19.4% over 25 m.

may start earliermay continue beyond end Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: GIP.at, Austria's official transport graph records no surface for this road; the map may tell you more.

Access: Toll road: motor vehicles pay; bicycles — charge unknown (OpenStreetMap toll tags, 2026-09-15).

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

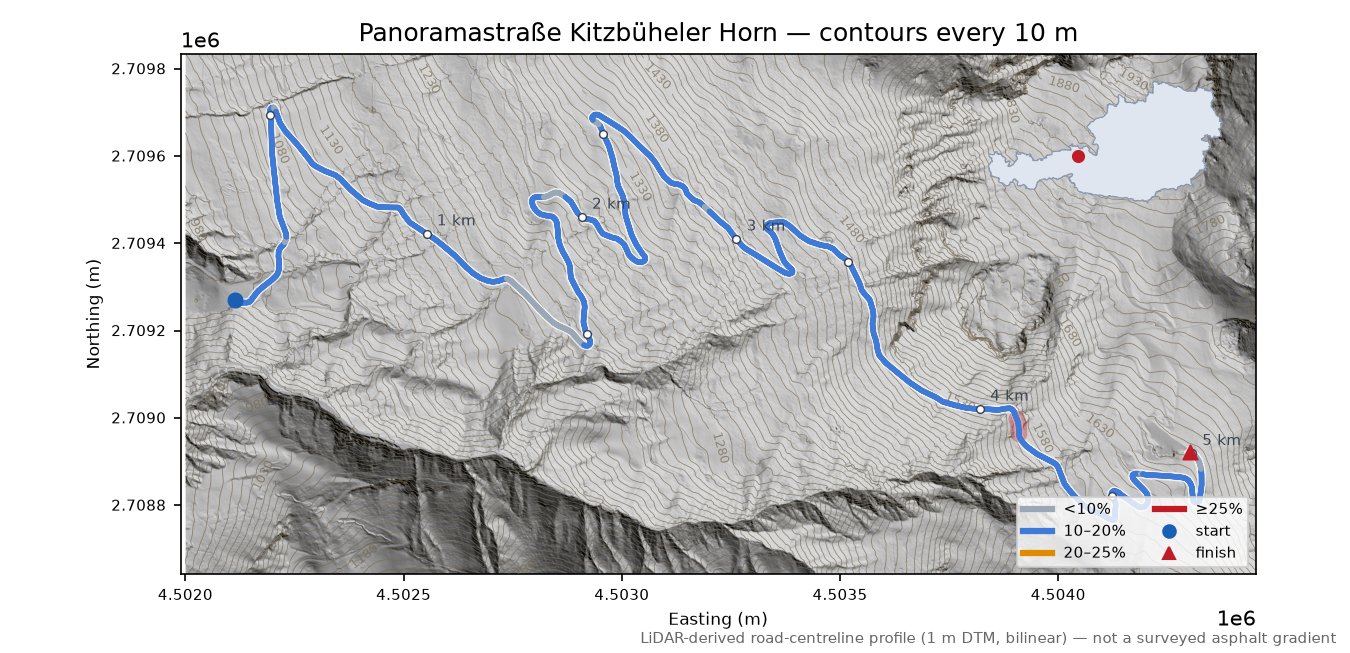

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Panoramastraße Kitzbüheler Horn LiDAR hillshade map with contours

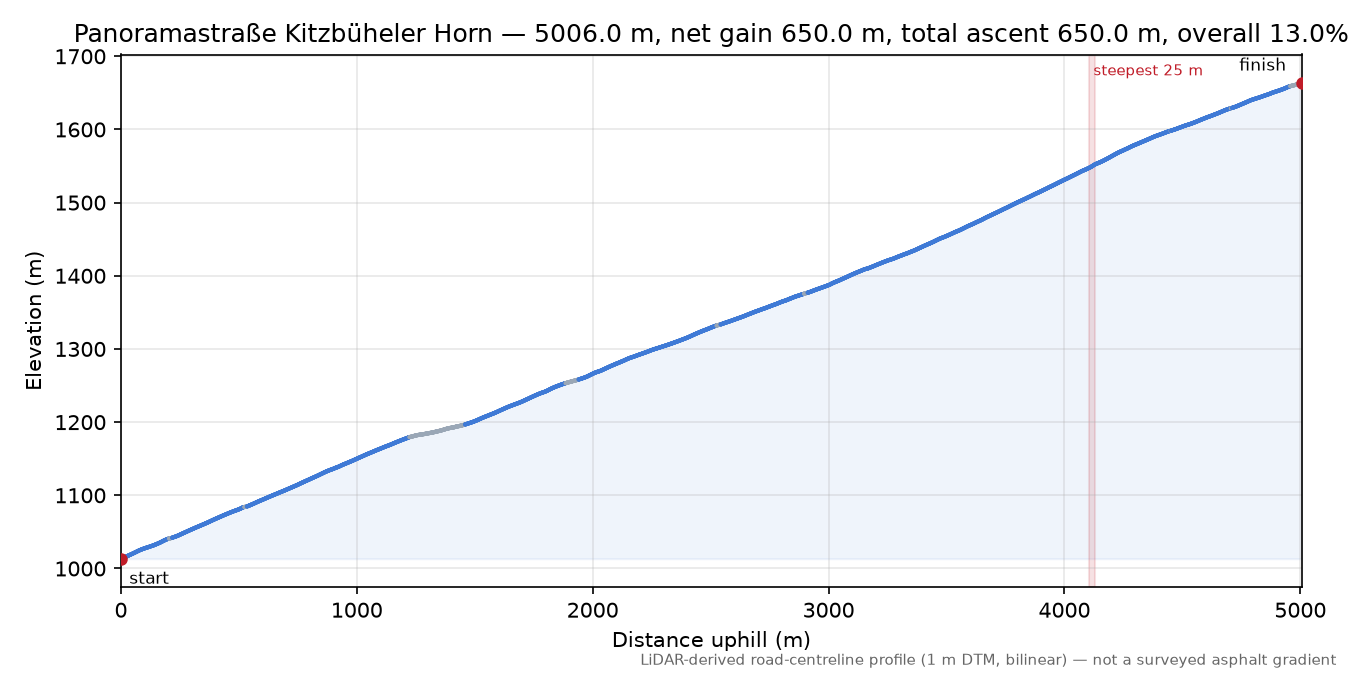

Profile

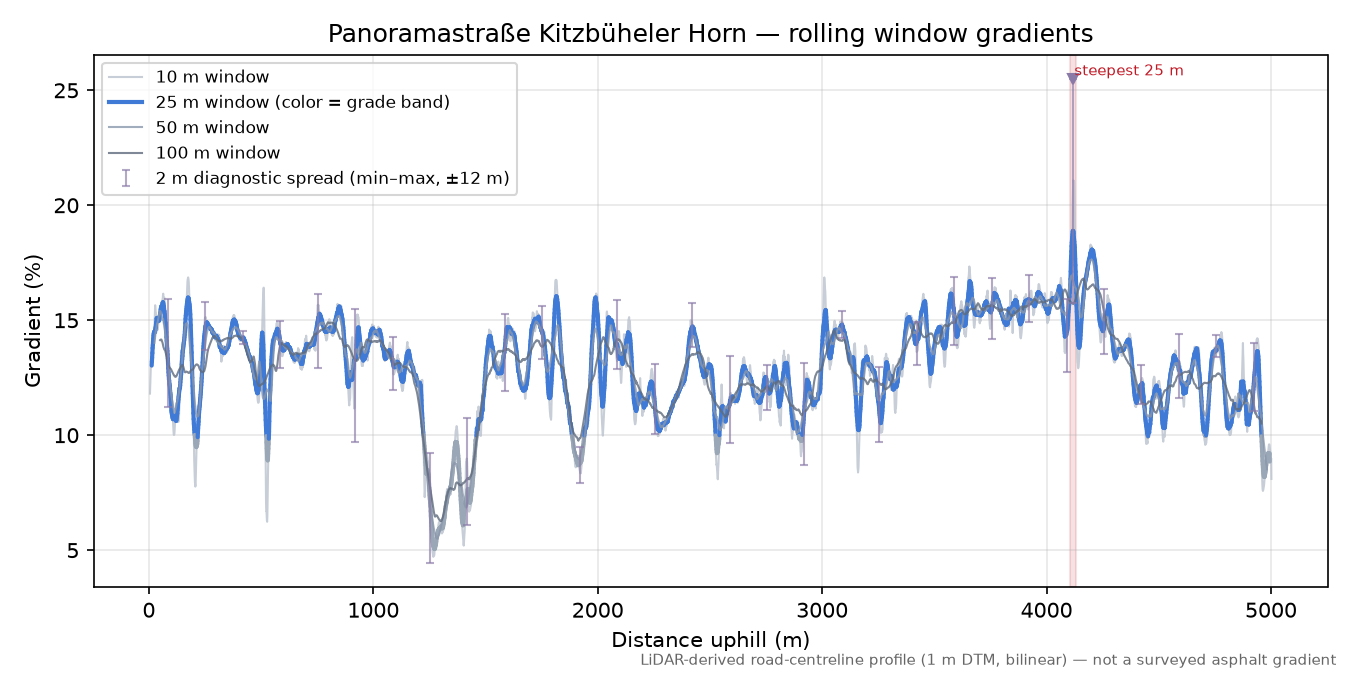

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035
Resolution / CRS	1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation
Tiles	E4502-N2708, E4502-N2709, E4503-N2708, E4503-N2709, E4504-N2708, E4504-N2709
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality B; caveated windows: canopy or structure
Analysis	OCL 0.1.0, analysis 0.1.0, run at-run1-260911, calculated 2026-09-11

Provenance

{
  "analysis_version": "0.1.0",
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:3035",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/at/bev-als_dtm_E4502-N2708.tif",
    "data/cache/at/bev-als_dtm_E4502-N2709.tif",
    "data/cache/at/bev-als_dtm_E4503-N2708.tif",
    "data/cache/at/bev-als_dtm_E4503-N2709.tif",
    "data/cache/at/bev-als_dtm_E4504-N2708.tif",
    "data/cache/at/bev-als_dtm_E4504-N2709.tif"
  ],
  "calculated_at": "2026-09-11T07:18:06+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch.osm.pbf",
  "osm_snapshot": "",
  "run_id": "at-run1-260911",
  "elevation_provider": "BEV ALS DTM 1 m",
  "elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
  "elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
  "elevation_tile_ids": [
    "E4502-N2708",
    "E4502-N2709",
    "E4503-N2708",
    "E4503-N2709",
    "E4504-N2708",
    "E4504-N2709"
  ],
  "elevation_blocks": [
    "N2700000E4500000@2022-09-15"
  ],
  "climb_origin": "discovered",
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
