Kaserstatt- Starkenburgerhütte

2747.7 m · net rise 296.9 m · total ascent 298.8 m · overall 10.8% · evidence quality A (high) · Neustift im Stubaital · Tirol · share

Shape: sustained — 29% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 255 m.

Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the GIP.at road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	32%	1269–1271 m
3 m (diagnostic)	31%	1269–1272 m
5 m	27%	1269–1274 m
10 m	24%	1842–1852 m
20 m	19.0%	1834–1854 m
25 m	17.4%	1088–1113 m
50 m	16.4%	909–959 m
100 m	15.3%	1069–1169 m

may start earlier Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: unpaved (100% unpaved), according to GIP.at, Austria's official transport graph: surface unrecorded for the first 20 m; unpaved for the first 67 m; surface unrecorded from 67 m to 197 m; unpaved from 197 m to 715 m; surface unrecorded from 715 m to 892 m; unpaved from 892 m to 1,611 m; surface unrecorded from 1,611 m to 2,309 m; unpaved from 2,309 m to the top. The steepest 25 m lies on the unpaved part.

Access: Road authority marks this road under a general traffic restriction: motor traffic limited to agricultural, forestry or permit holders; bicycles are normally allowed — check local signs.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

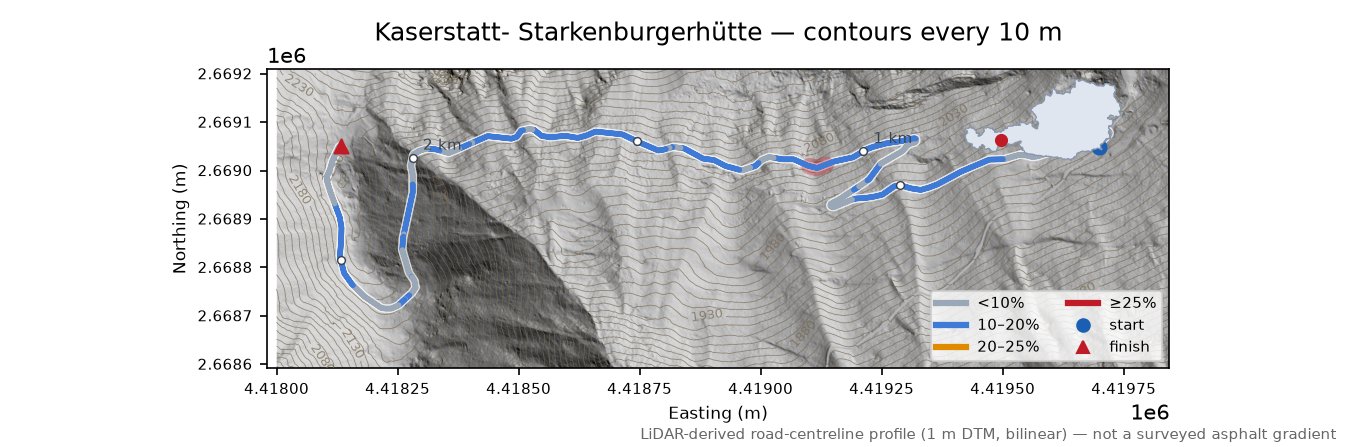

Kaserstatt- Starkenburgerhütte LiDAR hillshade map with contours

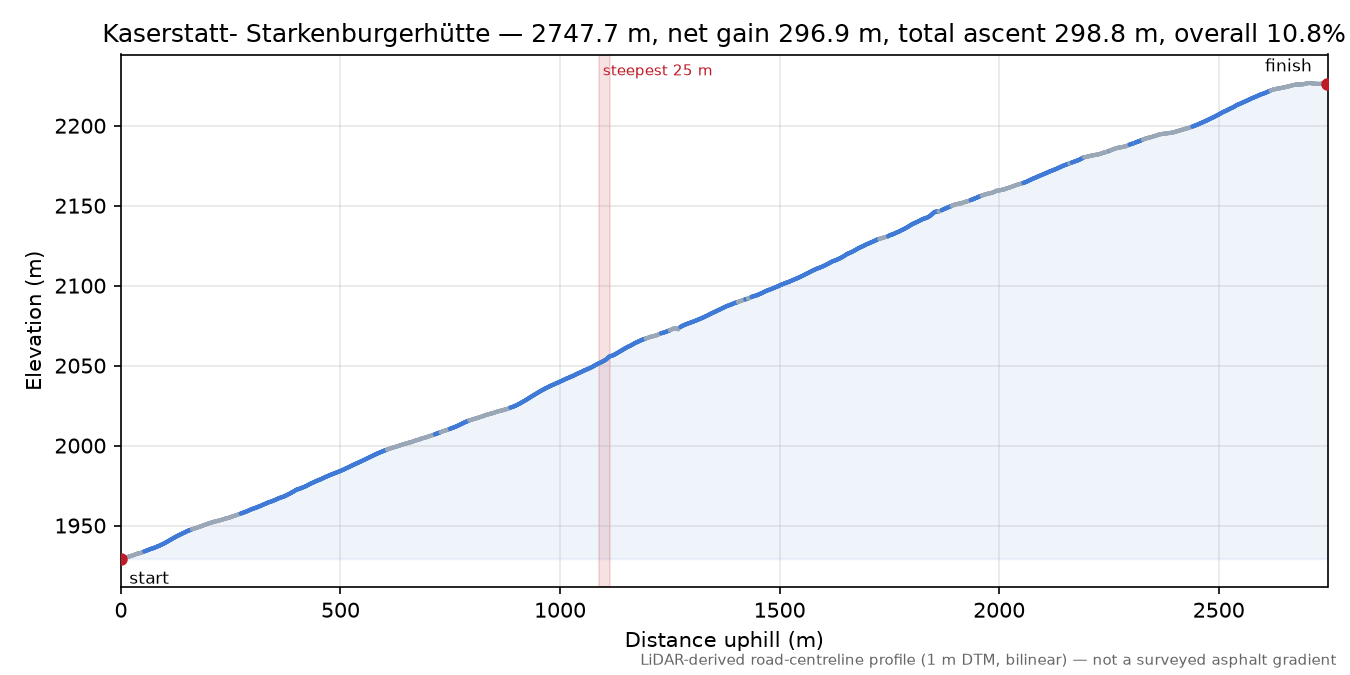

Profile

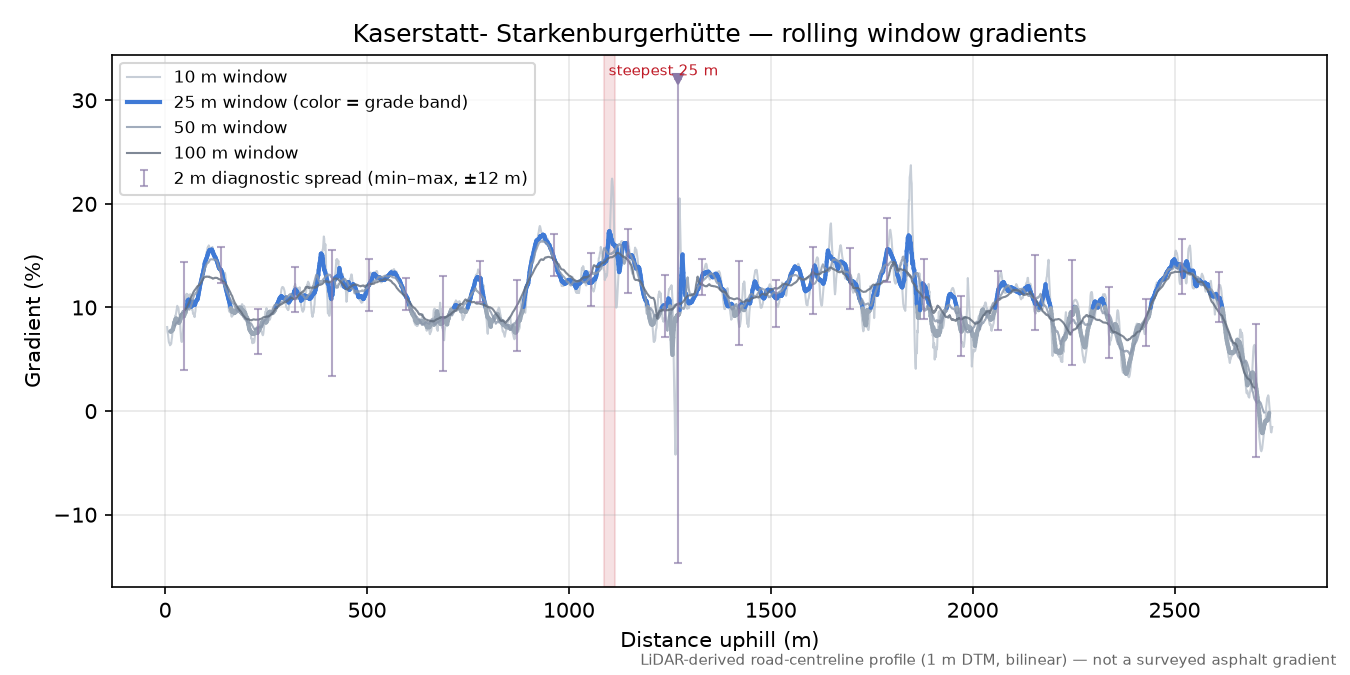

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).

Measurement card

Elevation	BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035
Resolution / CRS	1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation
Tiles	E4418-N2668, E4418-N2669, E4419-N2668, E4419-N2669
Road centreline	OpenStreetMap (local PBF extract)
Quality status	evidence quality A; no review flags; no caveated windows
Analysis	OCL 0.1.0, analysis 0.1.0, run at-run4-260912, calculated 2026-09-13

Provenance

{
  "analysis_version": "0.1.0",
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:3035",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/at/bev-als_dtm_E4418-N2668.tif",
    "data/cache/at/bev-als_dtm_E4418-N2669.tif",
    "data/cache/at/bev-als_dtm_E4419-N2668.tif",
    "data/cache/at/bev-als_dtm_E4419-N2669.tif"
  ],
  "calculated_at": "2026-09-13T00:10:49+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch-at-run4-260912.osm.pbf",
  "osm_snapshot": "",
  "run_id": "at-run4-260912",
  "elevation_provider": "BEV ALS DTM 1 m",
  "elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
  "elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
  "elevation_tile_ids": [
    "E4418-N2668",
    "E4418-N2669",
    "E4419-N2668",
    "E4419-N2669"
  ],
  "elevation_blocks": [
    "N2650000E4400000@2022-09-15"
  ],
  "climb_origin": "discovered",
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
