Discovered lane (46.8895, 16.1306)
1472.2 m · net rise 105.4 m · total ascent 108.4 m · overall 7.2% · evidence quality B (good) · Sankt Martin an der Raab · Burgenland · share
Shape: stepped — 46% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 161 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the GIP.at road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
≈ Overhead cover (tree canopy or structures) spans 70% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

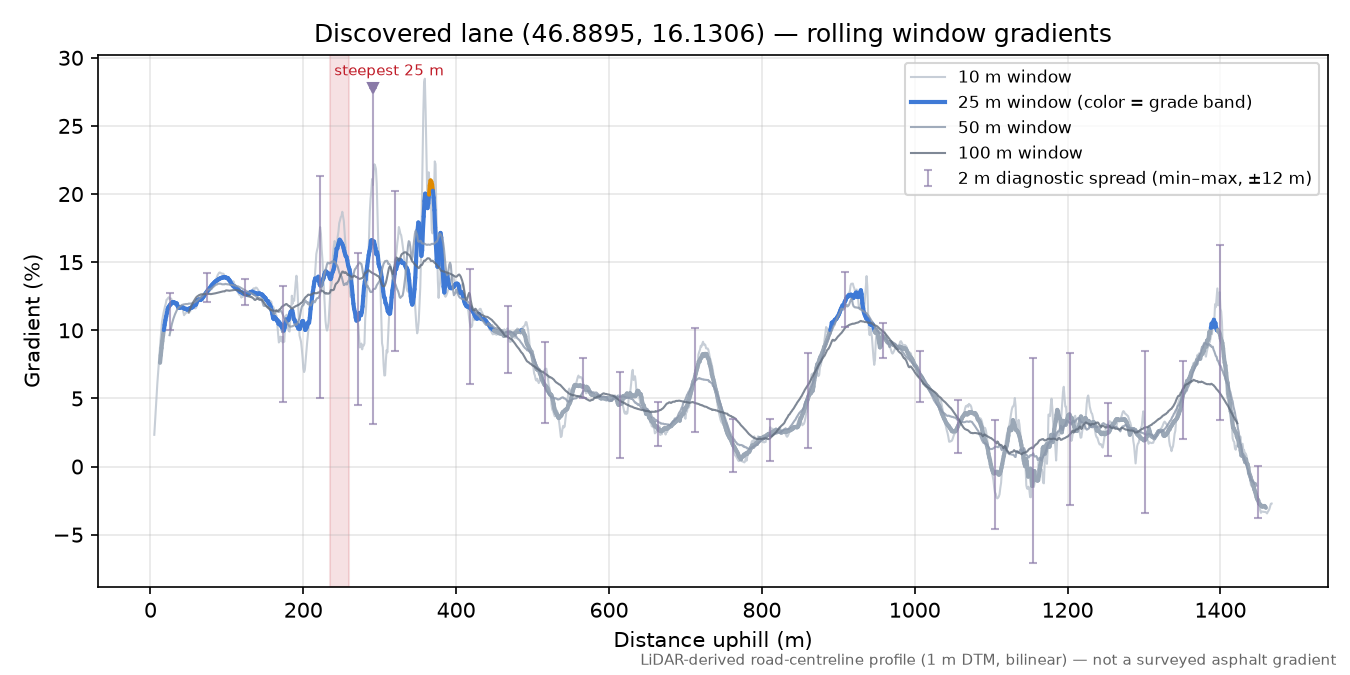

Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈28% | 290–292 m | under overhead cover terrain reads 44.4% at 368–370 m across a structure — excluded |
| 3 m (diagnostic) | ≈26% | 290–293 m | under overhead cover terrain reads 43.3% at 368–371 m across a structure — excluded |
| 5 m | ≈24% | 288–293 m | under overhead cover terrain reads 37.5% at 358–363 m across a structure — excluded |
| 10 m | ≈22% | 288–298 m | under overhead cover terrain reads 28.5% at 354–364 m across a structure — excluded |
| 20 m | ≈18.8% | 281–301 m | under overhead cover terrain reads 22.8% at 354–374 m across a structure — excluded |
| 25 m | ≈16.6% | 235–260 m | under overhead cover terrain reads 21.0% at 354–379 m across a structure — excluded |
| 50 m | ≈15.1% | 284–334 m | under overhead cover terrain reads 17.3% at 322–372 m across a structure — excluded |
| 100 m | ≈14.4% | 235–335 m | under overhead cover terrain reads 15.7% at 283–383 m across a structure — excluded |
may start earlierdescends at end Extent detection suggests reviewing where this climb starts/ends.

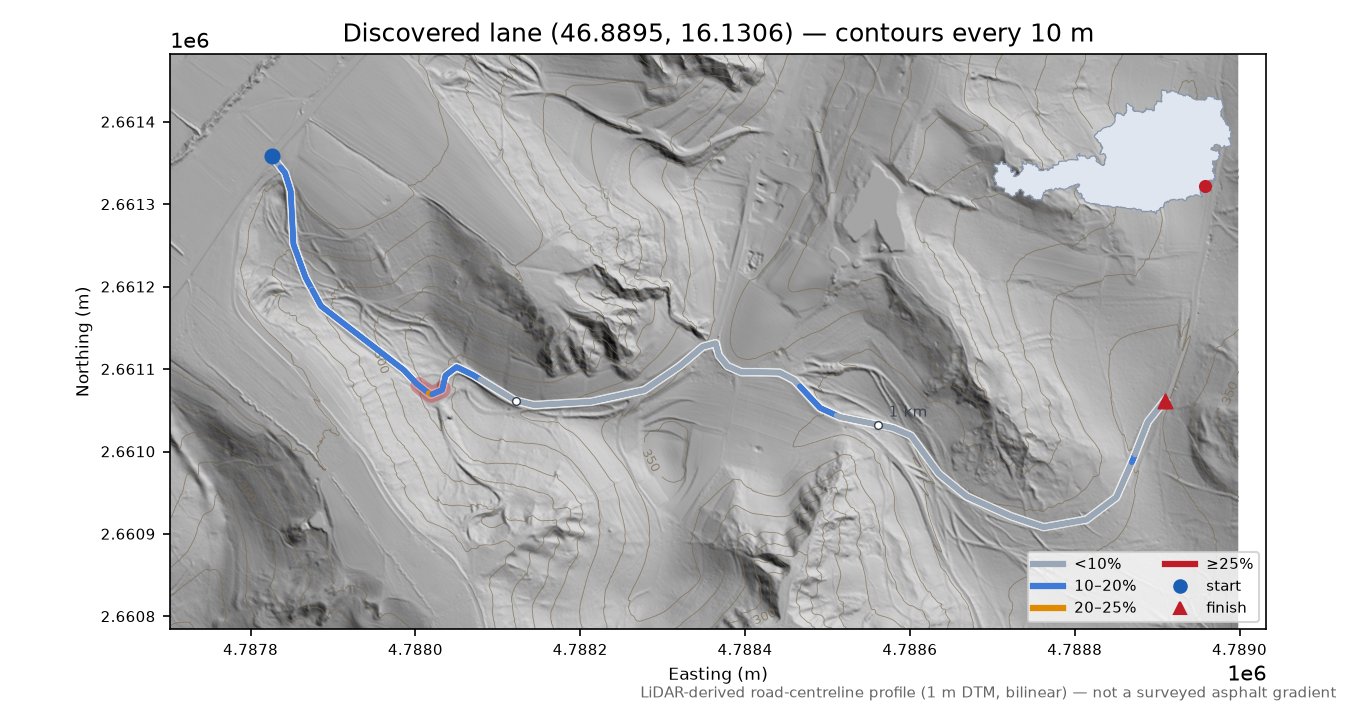

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Surface: paved (0% unpaved), according to GIP.at, Austria's official transport graph: paved for the first 776 m; surface unrecorded from 776 m to the top.
Access: Listed 2026-09-11 (Austria run 1): road audit — way 116016858: unnamed service way. Never silently ranked or dropped (Peter, 2026-08-27).
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery © basemap.at (CC BY 4.0)

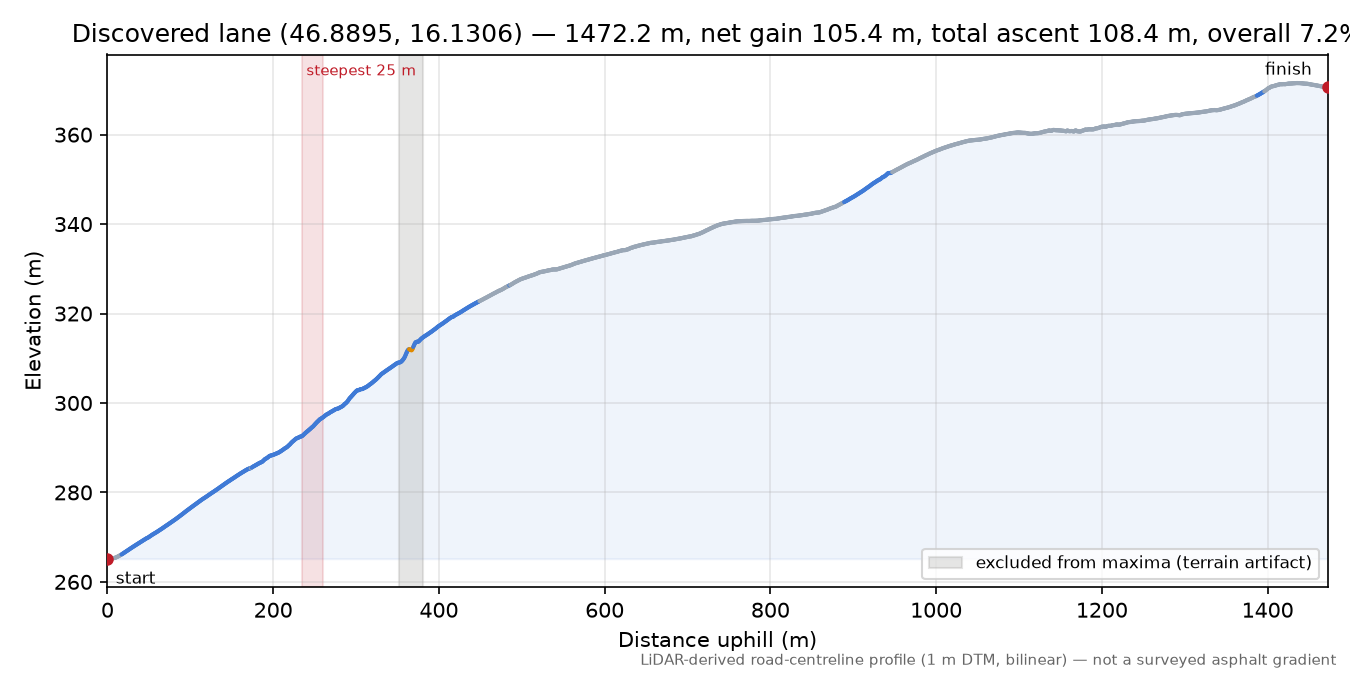

Profile
The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).
Measurement card
| Elevation | BEV ALS DTM 1 m — ALS DTM Höhenraster 1 m (Bundesamt für Eich- und Vermessungswesen with the Länder), EPSG:3035 |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:3035; sampled every 1.0 m, bilinear interpolation |
| Tiles | E4787-N2660, E4787-N2661, E4788-N2660, E4788-N2661 |
| Road centreline | OpenStreetMap (local PBF extract) |
| Quality status | evidence quality B; caveated windows: canopy or structure, texture excluded |
| Analysis | OCL 0.1.0, analysis 0.1.0, run texture-at-at-260912, calculated 2026-09-12 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:3035",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/at/bev-als_dtm_E4787-N2660.tif",
"data/cache/at/bev-als_dtm_E4787-N2661.tif",
"data/cache/at/bev-als_dtm_E4788-N2660.tif",
"data/cache/at/bev-als_dtm_E4788-N2661.tif"
],
"calculated_at": "2026-09-12T01:26:10+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch.osm.pbf",
"osm_snapshot": "",
"run_id": "texture-at-at-260912",
"elevation_provider": "BEV ALS DTM 1 m",
"elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
"elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
"elevation_tile_ids": [
"E4787-N2660",
"E4787-N2661",
"E4788-N2660",
"E4788-N2661"
],
"elevation_blocks": [
"N2650000E4750000@2022-09-15"
],
"climb_origin": "discovered",
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing"
}
