Surface unknown — likely unpaved · listed, not ranked

3468.0 m · net rise 197.1 m · total ascent 219.7 m · overall 5.7% · evidence quality B (good) · Ruden · Kärnten

Shape: sustained — 37% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 179 m.

Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the GIP.at road network, OpenStreetMap and a second terrain model, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.

≈ Overhead cover (tree canopy or structures) spans 52% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.

Lane near Sankt Jakob (Ruden, Kärnten) is 3468.0 m long at 5.7% overall; its steepest 25 m averages ≈20.6% and its steepest 100 m ≈17.3%, measured from Austria's national 1 m airborne-laser terrain model along the mapped road centreline.

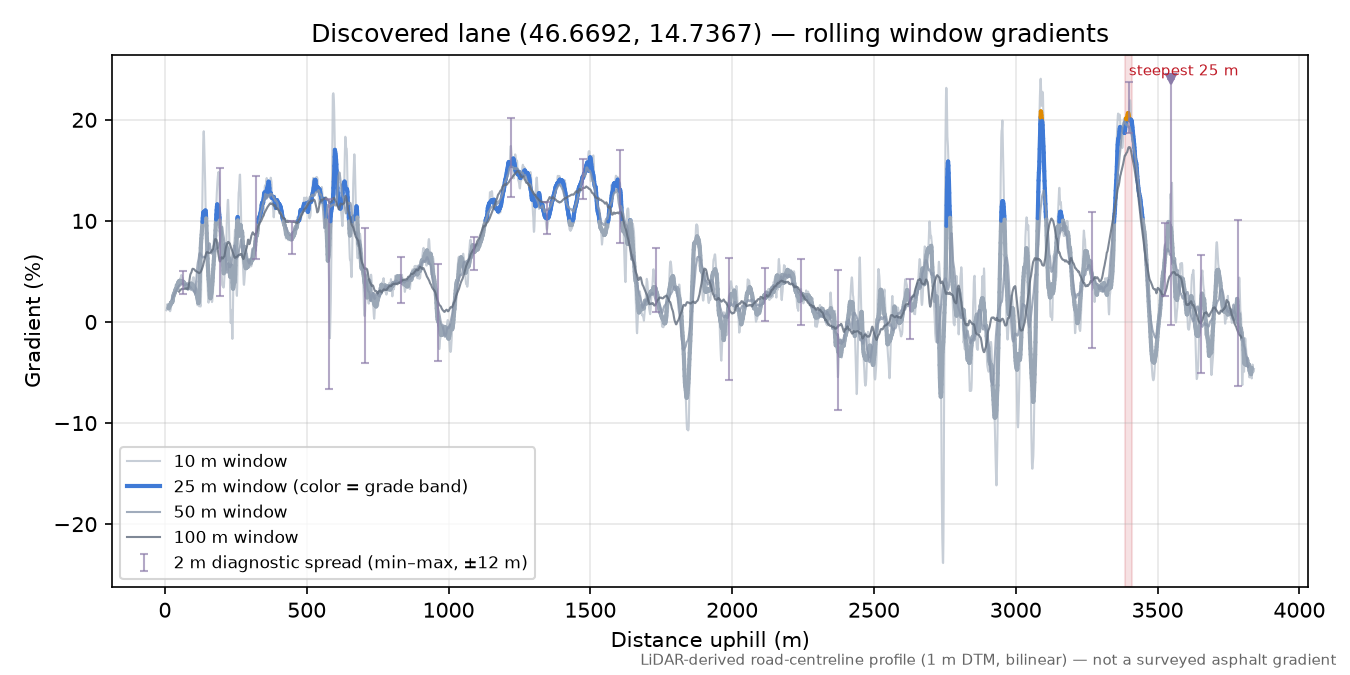

Gradient ladder what do windows mean?

may continue beyond end Extent detection suggests reviewing where this climb starts/ends.

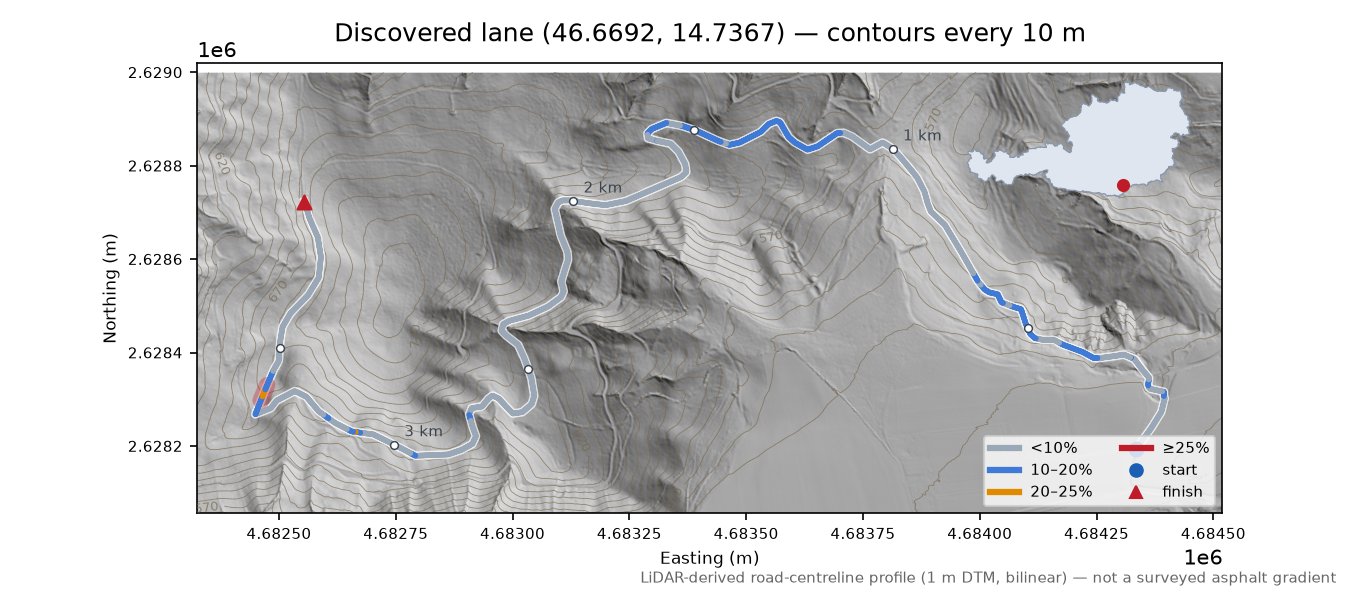

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Surface: GIP.at, Austria's official transport graph records no surface for this road; the map may tell you more.

Pending human review: the steepest stretch of this climb (3384–3409 m) looks like a track rather than a made road: the road ends before it: the measured line carries on past the last mapped road, up a track or across a field (about 100% of the steepest 25 m and 95% of the line). The figure is published as measured and has not been adjusted, but a climb whose steepest stretch looks like a track is listed, not ranked, until a person has looked.

Access: Listed 2026-09-13 (Austria wave 4 (12-15 % coarse band)): road audit — way 672008059: unnamed service way; way 672008059: service way, surface untagged. Never silently ranked or dropped.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Load the interactive map

Route colour = gradient over a 25 m window: <10% 10–20% 20–25% ≥25%

Route line = the road surface as the LiDAR survey finds it. Basemap roads are for orientation and may sit a few metres off.

Topo (contours) Vector Aerial   © OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap · aerial imagery © basemap.at (CC BY 4.0)

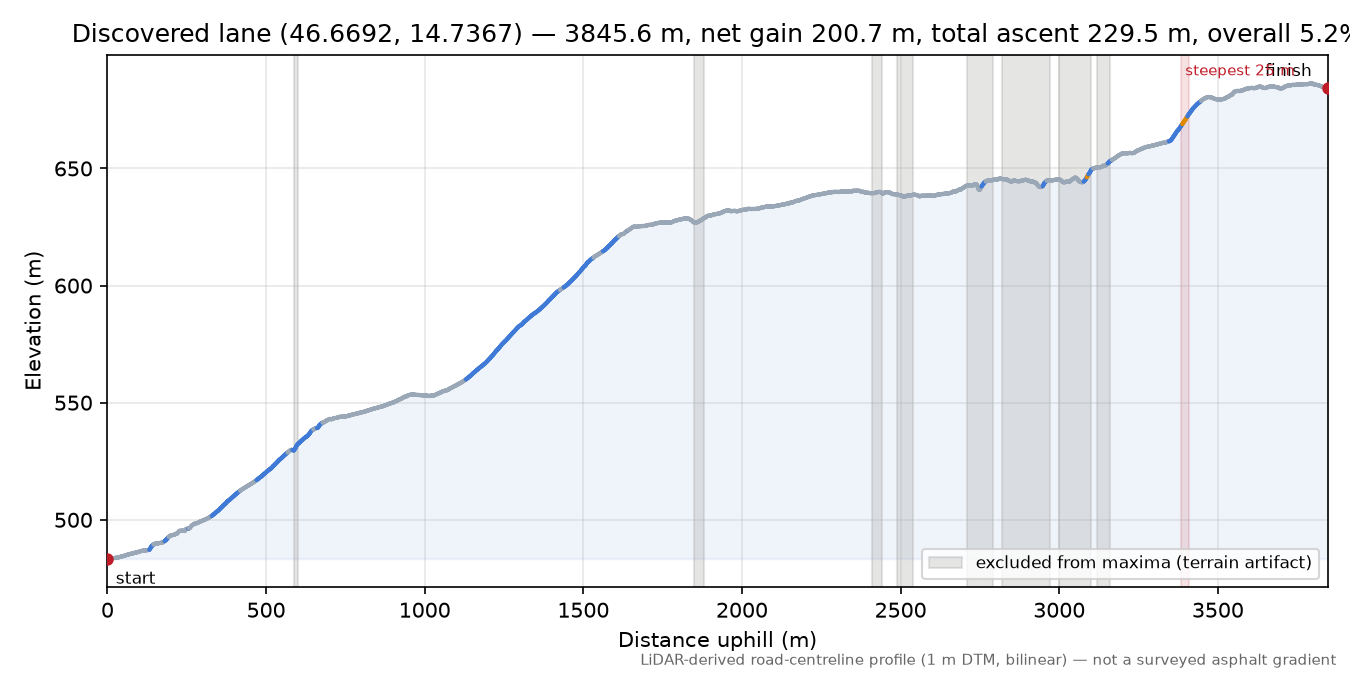

Profile

The map, profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m. Any 25 m figure is good to about a point either way (why).



Measurement card

Provenance

{
  "analysis_version": "0.1.0",
  "run_manifest": {
    "manifest_version": "1",
    "code_git_sha": "ac4adb76695c6b499b0f381b08fc8f7573004516",
    "code_git_dirty": "false",
    "analysis_version": "0.1.0",
    "analysis_config_digest": "sha256:dc124aecb16fc37d",
    "python": "3.12.12",
    "numpy": "2.5.2",
    "rasterio": "1.5.1",
    "pyproj": "3.7.2",
    "laspy": "2.7.0",
    "shapely": "2.1.2",
    "pyosmium": "4.3.1",
    "libosmium": "2.23.1",
    "gdal": "3.12.4",
    "proj": "9.5.1",
    "run_id": "remeasure-261027-at-edition",
    "road_pbf": "austria-2026-09-11-batch-at-run4-260912.osm.pbf",
    "region_key": "austria",
    "crs": "EPSG:3035",
    "elevation_provider_key": "bev-als",
    "tile_index": "cog-grid",
    "authority": "gip",
    "registry_pbf": "austria-2026-09-11.osm.pbf",
    "tile_index_snapshot": "sha256:41caef11a32bc092"
  },
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:3035",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/at/bev-als_dtm_E4682-N2628@20250915.tif",
    "data/cache/at/bev-als_dtm_E4683-N2628@20250915.tif",
    "data/cache/at/bev-als_dtm_E4684-N2628@20250915.tif"
  ],
  "calculated_at": "2026-10-27T14:04:06+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/austria-2026-09-11-batch-at-run4-260912.osm.pbf",
  "osm_snapshot": "",
  "run_id": "remeasure-261027-at-edition",
  "elevation_provider": "BEV ALS DTM 1 m",
  "elevation_licence": "Creative Commons Attribution 4.0 (CC BY 4.0) \u2014 \u00a9 BEV / L\u00e4nder, data.gv.at",
  "elevation_dataset": "ALS DTM H\u00f6henraster 1 m (Bundesamt f\u00fcr Eich- und Vermessungswesen with the L\u00e4nder), EPSG:3035",
  "elevation_tile_ids": [
    "E4682-N2628",
    "E4683-N2628",
    "E4684-N2628"
  ],
  "elevation_blocks": [
    "N2600000E4650000@2025-09-15"
  ],
  "bev_dsm_release": {
    "N2600000E4650000": "20250915"
  },
  "route_cut_m": 3468.0,
  "climb_origin": "discovered",
  "seam_filled_samples": {
    "count": 0,
    "distances_m": []
  },
  "seam_filled_in_maximum": false,
  "structure_own_ways": 2,
  "tunnel_check": "osm tunnel=* ways on 2 own way(s)",
  "tunnel_ranges_m": [],
  "underground_fraction": 0.0,
  "prior_doc": {
    "slug": "discovered-lane-46-6692-14-7367",
    "calculated_at": "2026-09-13T00:48:03+00:00",
    "code_git_sha": null,
    "analysis_version": "0.1.0",
    "run_id": "at-run4-260912",
    "path": "output/remeasure-261027-at-edition/plan/priors/discovered-lane-46-6692-14-7367/discovered-lane-46-6692-14-7367.json",
    "prior_window_m": [
      0.0,
      3468.0
    ],
    "spans": 9,
    "sources": [
      "excluded_ranges_m",
      "texture"
    ]
  },
  "suppression_vanished": {
    "windows": [
      {
        "window_m": 10.0,
        "start_m": 589.0,
        "end_m": 599.0,
        "raw_pct": 22.38,
        "reason": "",
        "perturbations": 3,
        "perturbation_reasons": [
          "",
          "",
          ""
        ],
        "at": "final",
        "decision": "vanished",
        "perturbation_hits": 0,
        "prior": {
          "start_m": 589.0,
          "end_m": 599.0,
          "reason": "hump",
          "source": "texture",
          "window_m": 10.0,
          "needs": [],
          "gap_m": 0.0,
          "window_over": 1.0,
          "span_under": 1.0
        },
        "published_reason": "hump",
        "published_span_m": [
          589.0,
          599.0
        ],
        "published_pct": 21.939539163994368
      },
      {
        "window_m": 5.0,
        "start_m": 592.0,
        "end_m": 597.0,
        "raw_pct": 25.22,
        "reason": "",
        "perturbations": 3,
        "perturbation_reasons": [
          "",
          "",
          ""
        ],
        "at": "final",
        "decision": "vanished",
        "perturbation_hits": 0,
        "prior": {
          "start_m": 589.0,
          "end_m": 599.0,
          "reason": "hump",
          "source": "texture",
          "window_m": 10.0,
          "needs": [],
          "gap_m": 0.0,
          "window_over": 1.0,
          "span_under": 1.0
        },
        "published_reason": "hump",
        "published_span_m": [
          589.0,
          599.0
        ],
        "published_pct": 22.882635161967073
      }
    ],
    "headline": null,
    "note": "The published run masked this ground and not one of today's sampling phases finds a reason there. The factors no longer apply and the figure would RISE \u2014 which is never a machine's to do: the page keeps its published figure and a person rules from a card with both numbers (carried-artefact-verdicts)."
  },
  "mask_edge_carried": {
    "ranges": [
      {
        "published_span_m": [
          2490.0,
          2540.0
        ],
        "kept_m": [
          2490.0,
          2540.0
        ],
        "added_m": 10.0
      }
    ],
    "ruling": ": a published mask's own start and end stay on the kept ground; a re-measure's detector may extend a published mask but never pull a published edge back (ch/schafmattstrasse-3)"
  },
  "carriageway": {
    "stations": 145,
    "stations_resolved": 145,
    "width_median_m": 4.75,
    "width_p10_m": 2.6,
    "width_min_m": 2.0,
    "width_max_m": 10.0,
    "bounded_share": 0.228,
    "unbounded_share": 0.772,
    "confidence_median": 0.0,
    "width_median_bounded_m": 4.0,
    "window_m": [
      3384.0,
      3409.0
    ],
    "width_at_max25_m": 8.25,
    "window_stations": 7,
    "single_track": false,
    "single_track_rule": "PROVISIONAL (2026-09-15): width_p10_m <= 3.0 m with bounded_share >= 0.6; recorded, not a rule",
    "status": "ok",
    "source": "dtm",
    "station_m": 25.0,
    "window_station_m": 5.0,
    "halfwidth_m": 6.0,
    "step_m": 0.25,
    "level_tol_m": 0.12,
    "break_min_m": 0.3,
    "stations_failed": 0,
    "hedge_to_hedge": {
      "stations": 145,
      "stations_resolved": 145,
      "width_median_m": 2.5,
      "width_p10_m": 1.25,
      "width_min_m": 0.5,
      "width_max_m": 12.0,
      "bounded_share": 0.924,
      "unbounded_share": 0.076,
      "confidence_median": 1.0,
      "width_median_bounded_m": 2.5,
      "window_m": [
        3384.0,
        3409.0
      ],
      "width_at_max25_m": 8.25,
      "window_stations": 7,
      "status": "ok",
      "source": "dsm",
      "station_m": 25.0,
      "window_station_m": 5.0,
      "halfwidth_m": 6.0,
      "step_m": 0.25,
      "level_tol_m": 0.5,
      "break_min_m": 0.3,
      "stations_failed": 0
    }
  },
  "remeasured": {
    "on": "2026-10-27",
    "why": "BEV 2025-09-15 edition re-measure of pages folded on stale 2022 index; 46-6692 + 47-6329 parity LOST accepted (texture edge / parity-tool offset); 46-6611 and gde-str-gang held",
    "published_max25_pct": 20.67,
    "max25_pct": 20.61,
    "published_length_m": 3468.0000000000796,
    "length_m": 3468.0000000000796,
    "expected_length_m": 3468.0
  },
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing"
}
