Rhiw Fain
1175.8 m · gain 132.2 m · overall 11.2% · Cwm Perlla · Sir Ceredigion - Ceredigion
Shape: sustained — 34% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 165 m.
An unlisted find of this survey, on no list we know of. It was discovered by analysing LiDAR terrain data and cross-checked against the OS road network, surface models and map tags — but despite all that, a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If that someone is you, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
≈ Overhead cover (tree canopy or structures) spans 6% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain, not wrong. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈47.6% | 207–209 m | under overhead cover terrain reads 76.6% at 455–457 m across a structure — excluded |
| 3 m (diagnostic) | ≈43.3% | 24–27 m | under overhead cover terrain reads 64.4% at 454–457 m across a structure — excluded |
| 5 m | ≈31.4% | 24–29 m | under overhead cover terrain reads 43.4% at 452–457 m across a structure — excluded |
| 10 m | ≈25.3% | 358–368 m | under overhead cover terrain reads 25.4% at 447–457 m across a structure — excluded |
| 20 m | 22.1% | 356–376 m | |
| 25 m | 22.2% | 351–376 m | |
| 50 m | 20.0% | 331–381 m | |
| 100 m | ≈16.3% | 314–414 m | under overhead cover terrain reads 17.6% at 301–401 m across a structure — excluded |
may_start_earlier Extent detection suggests reviewing where this climb starts/ends.

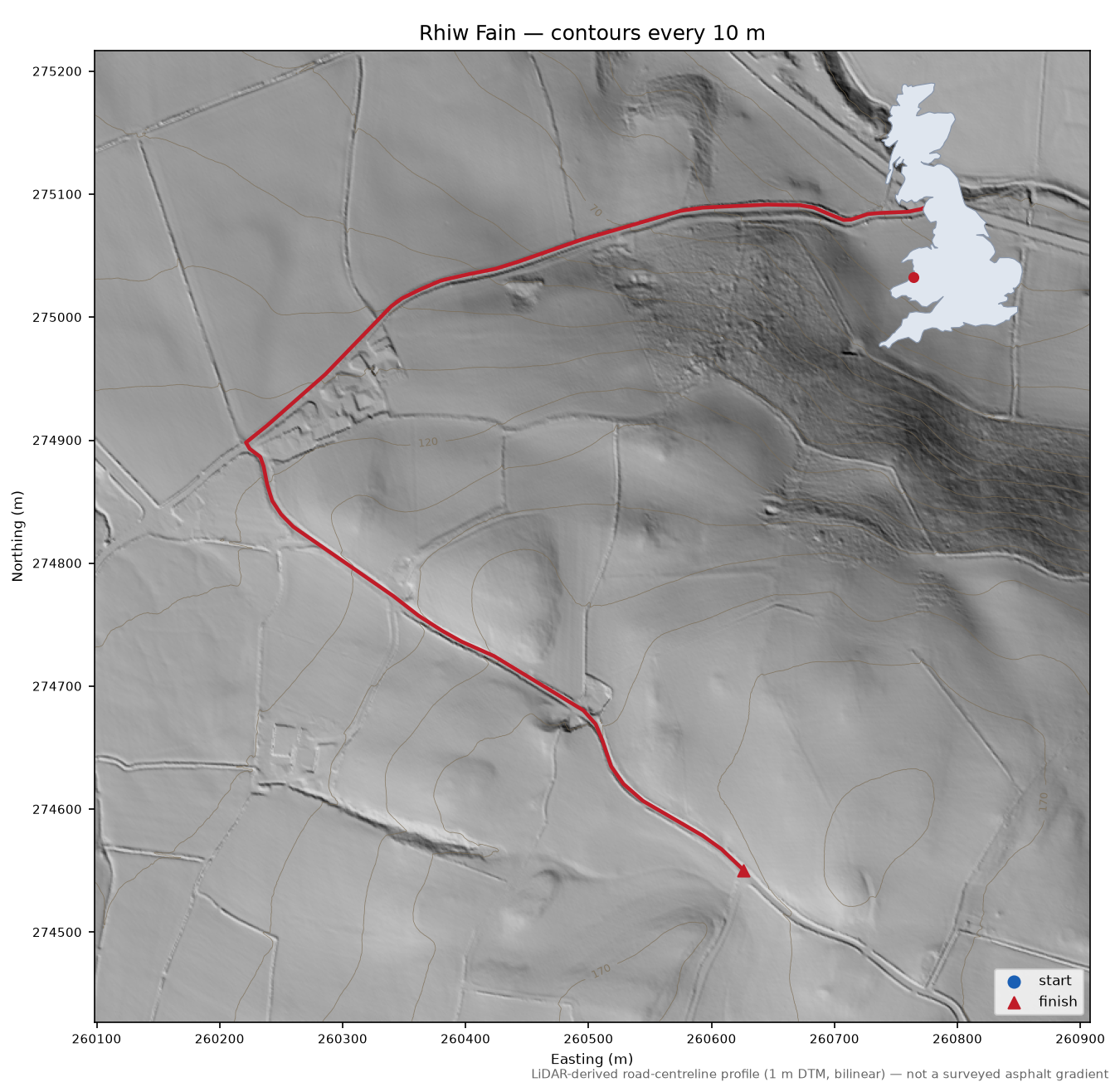

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_23_260274_20220117dtm.tif",
"data/cache/wales/dtm_1m/wg_del_23_260275_20220117dtm.tif"
],
"calculated_at": "2026-08-12T09:11:13+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_23_260274_20220117dtm.tif",
"wg_del_23_260275_20220117dtm.tif"
],
"elevation_capture_dates": [
"17-01-2022"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 15.6% over 200 m (Terrain 50), gain 83.1 m over 625 m way. EXTENDED by graph walk: +0 segment(s) at base, +2 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. ADOPTED (notable slice 2026-08-11): clean-steep."
}
