Penygraig Terrace
444.6 m · gain 46.4 m · overall 10.4% · Ynysybwl · Rhondda Cynon Taf
Shape: sustained — 43% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 179 m.
An unlisted find of this survey, on no list we know of. It was discovered by analysing LiDAR terrain data and cross-checked against the OS road network, surface models and map tags — but despite all that, a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If that someone is you, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | 22.6% | 243–245 m | |
| 3 m (diagnostic) | 22.7% | 255–258 m | |
| 5 m | 22.3% | 253–258 m | |
| 10 m | 20.9% | 253–263 m | |
| 20 m | 20.4% | 238–258 m | |
| 25 m | 20.3% | 233–258 m | |
| 50 m | 19.8% | 214–264 m | |
| 100 m | 18.2% | 167–267 m |

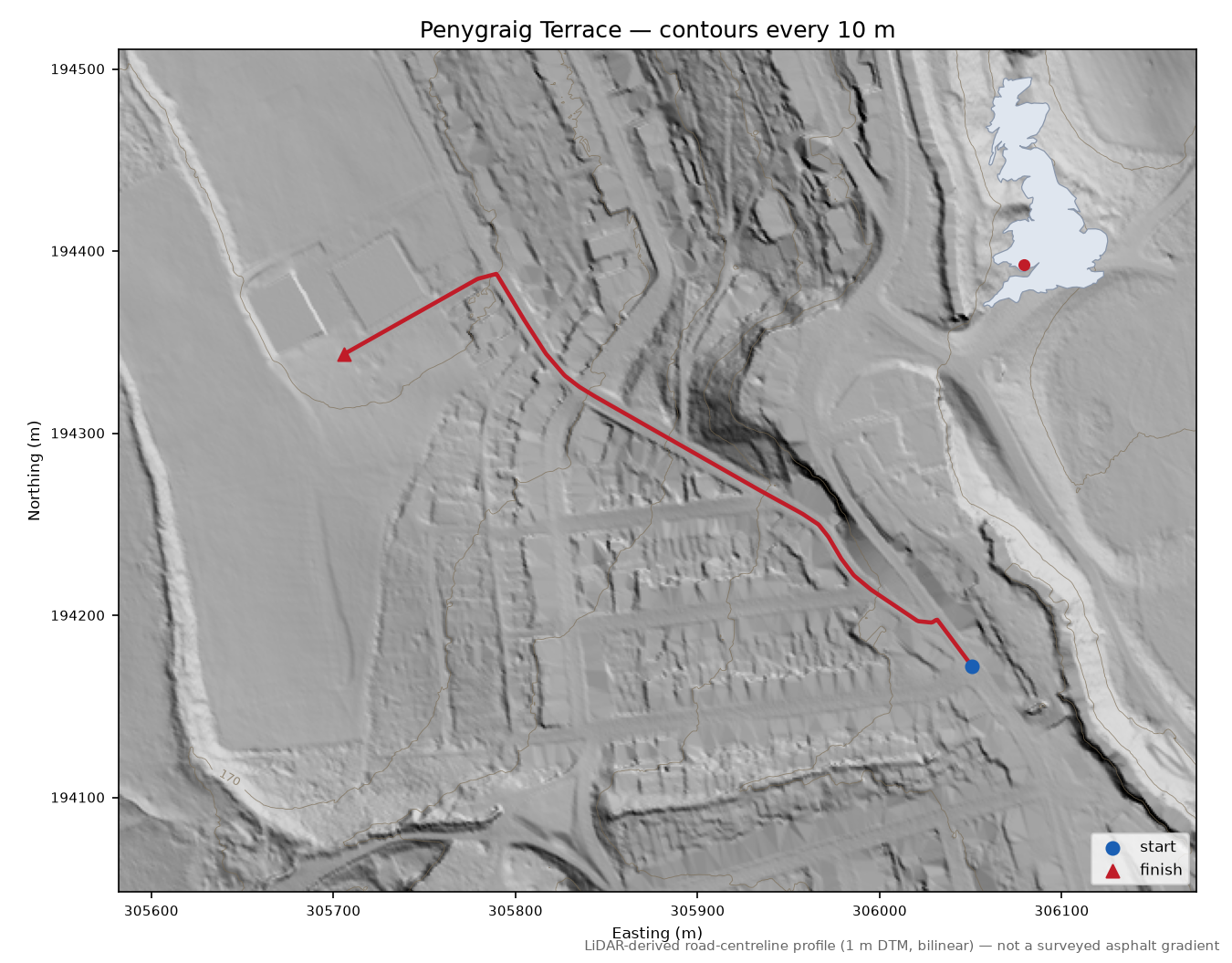

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_5_305194_20201224dtm.tif",
"data/cache/wales/dtm_1m/wg_del_5_306194_20201224dtm.tif"
],
"calculated_at": "2026-08-12T09:11:08+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_5_305194_20201224dtm.tif",
"wg_del_5_306194_20201224dtm.tif"
],
"elevation_capture_dates": [
"24-12-2020"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 15.1% over 200 m (Terrain 50), gain 33.8 m over 240 m way. EXTENDED by graph walk: +1 segment(s) at base, +3 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. ROAD-REVIEW: way 827474746: unnamed service way; way 827474746: service way, surface untagged ADOPTED (notable slice 2026-08-11): clean-steep."
}
