Garvald to Redstone Rig°
12977.6 m · net rise 293.1 m · total ascent 511.2 m · overall 2.3% · confidence: needs confirmation · Rough Cleugh · East Lothian
Shape: sustained — 40% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 166 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the OS road network, surface models and map tags, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
° The name is provisional: this climb is not yet matched to a documented name, so it was named from nearby map places. There is no evidence of local usage — (auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (55.9006, -2.6102)'). Corrections welcome.
needs review short_window_divergence — treat short-window maxima here as provisional.
≈ Overhead cover (tree canopy or structures) spans 13% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈55% | 1618–1620 m | under overhead cover terrain reads 61.1% at 38–40 m across a structure — excluded |
| 3 m (diagnostic) | ≈46% | 1618–1621 m | under overhead cover terrain reads 60.7% at 39–42 m across a structure — excluded |
| 5 m | ≈39% | 1618–1623 m | under overhead cover terrain reads 52.6% at 38–43 m across a structure — excluded |
| 10 m | ≈27% | 1613–1623 m | under overhead cover terrain reads 41.2% at 33–43 m across a structure — excluded |
| 20 m | ≈21.0% | 1603–1623 m | under overhead cover terrain reads 32.9% at 30–50 m across a structure — excluded |
| 25 m | ≈19.8% | 1598–1623 m | under overhead cover terrain reads 28.4% at 25–50 m across a structure — excluded |
| 50 m | ≈15.6% | 1577–1627 m | under overhead cover terrain reads 18.6% at 2–52 m across a structure — excluded |
| 100 m | ≈13.9% | 1541–1641 m | under overhead cover terrain reads 15.3% at 1425–1525 m across terrain that holds no road surface (dense canopy, no bench) — excluded |
may_start_earlier Extent detection suggests reviewing where this climb starts/ends.

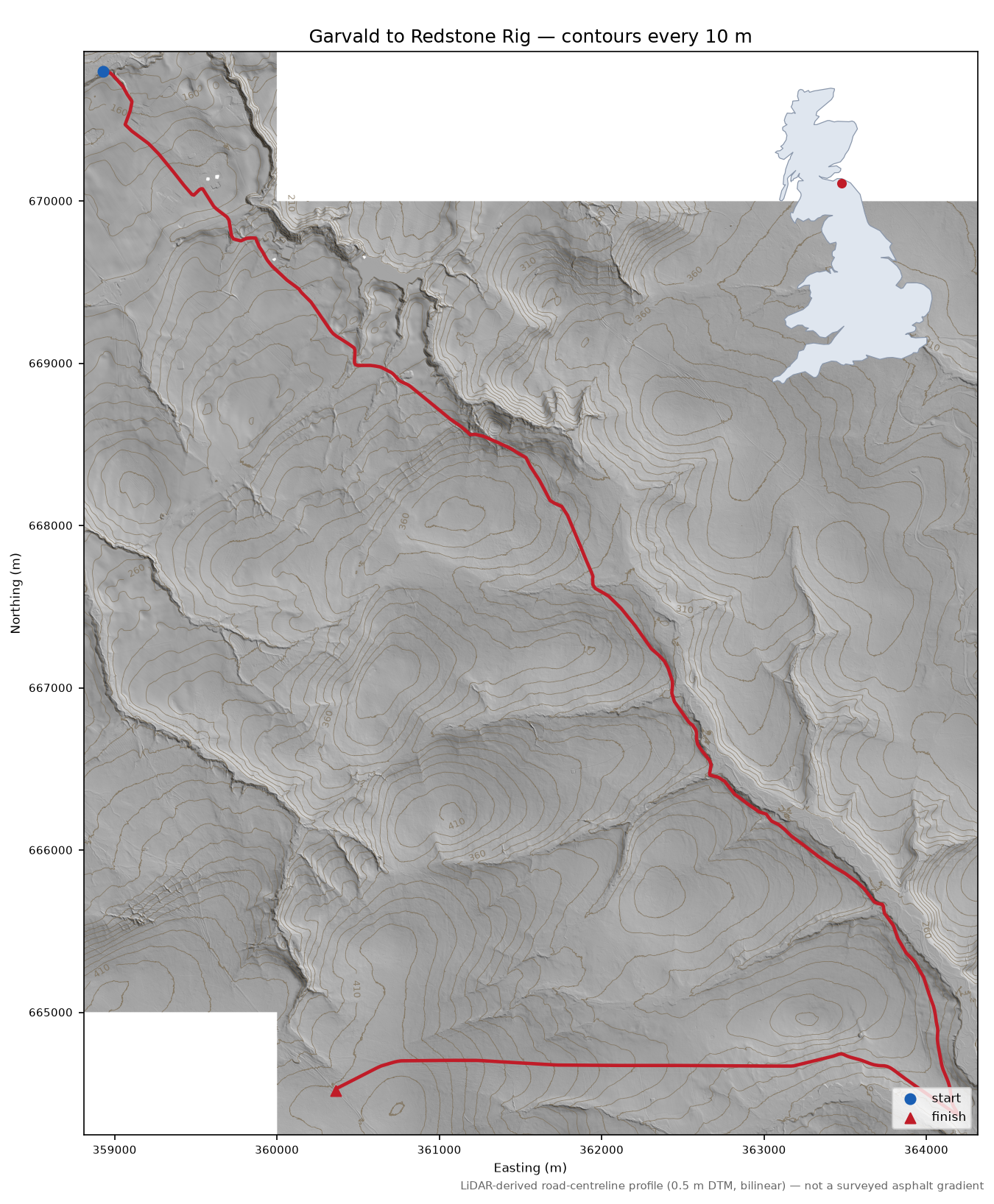

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Ridden it, or know better? Submit data for this climb no account needed
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 0.5,
"elevation_tiles": [
"data/cache/scotland/phase-3/dtm/NT66SW.tif",
"data/cache/scotland/phase-3/dtm/NT56NE.tif",
"data/cache/scotland/phase-3/dtm/NT66NW.tif",
"data/cache/scotland/phase-3/dtm/NT57SE.tif"
],
"calculated_at": "2026-08-18T18:39:27+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/scotland-2026-08-14-roads.osm.pbf",
"osm_snapshot": "2026-08-13T20:21:01Z",
"elevation_provider": "Scottish Remote Sensing Portal (AWS Open Data, srsp-open-data)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Scottish Government, SEPA and partners; Crown copyright",
"elevation_dataset": "Scottish Public Sector LiDAR Phase 3 50cm",
"elevation_tile_ids": [
"NT66SW",
"NT56NE",
"NT66NW",
"NT57SE"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 13.7% over 200 m (Terrain 50), gain 139.7 m over 8979 m way. EXTENDED by graph walk: +0 segment(s) at base, +3 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. DEDUPE: absorbed 2 overlapping proposal(s): discovered-lane-55-8705-2-6041, discovered-lane-55-9265-2-6501 ADOPTED (Scotland launch 2026-08-18): big-gain. AUTO-NAMED from gazetteer (hypothesis, unreviewed): was 'Discovered lane (55.9006, -2.6102)'.",
"naming_note": "auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (55.9006, -2.6102)'"
}
