Onen to Pen-y-lan°
1488.8 m · gain 111.1 m · overall 7.5% · Onen · Sir Fynwy - Monmouthshire
Shape: sustained — 40% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 112 m.
An unlisted find of this survey, on no list we know of. It was discovered by analysing LiDAR terrain data and cross-checked against the OS road network, surface models and map tags — but despite all that, a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If that someone is you, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
° The name is provisional: this climb appears on no list we know of, so it was named from nearby map places. There is no evidence of local usage — (auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (51.8327, -2.8128)'). Corrections welcome.
≈ Overhead cover (tree canopy or structures) spans 29% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain, not wrong. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈48.9% | 542–544 m | under overhead cover terrain reads 92.3% at 3–5 m across a structure — excluded |
| 3 m (diagnostic) | ≈47.0% | 515–518 m | under overhead cover terrain reads 79.3% at 3–6 m across a structure — excluded |
| 5 m | ≈37.9% | 513–518 m | under overhead cover terrain reads 55.0% at 566–571 m across a structure — excluded |
| 10 m | ≈31.7% | 508–518 m | under overhead cover terrain reads 41.1% at 565–575 m across a structure — excluded |
| 20 m | ≈28.5% | 512–532 m | under overhead cover terrain reads 30.8% at 564–584 m across a structure — excluded |
| 25 m | ≈27.8% | 507–532 m | under overhead cover terrain reads 28.4% at 562–587 m across a structure — excluded |
| 50 m | ≈23.6% | 503–553 m | under overhead cover |
| 100 m | ≈19.9% | 453–553 m | under overhead cover terrain reads 22.2% at 493–593 m across a structure — excluded |
may_start_earlier Extent detection suggests reviewing where this climb starts/ends.

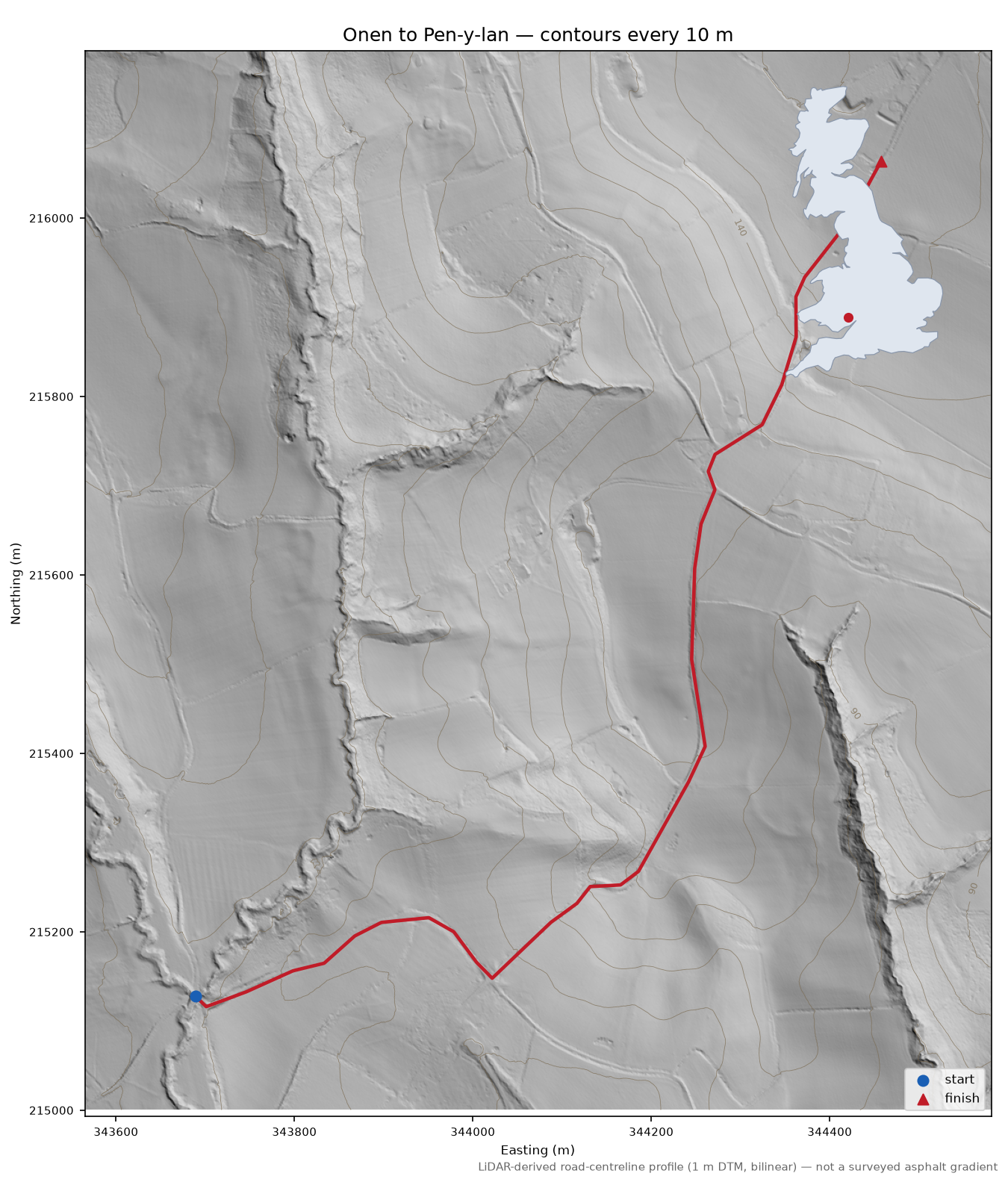

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_20_343215_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_343216_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_344215_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_344216_20220112dtm.tif"
],
"calculated_at": "2026-08-12T09:07:08+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_20_343215_20220112dtm.tif",
"wg_del_20_343216_20220112dtm.tif",
"wg_del_20_344215_20220112dtm.tif",
"wg_del_20_344216_20220112dtm.tif"
],
"elevation_capture_dates": [
"12-01-2022"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 16.0% over 200 m (Terrain 50), gain 63.8 m over 1044 m way. EXTENDED by graph walk: +1 segment(s) at base, +2 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. ADOPTED (notable slice 2026-08-11): qualified-steep. AUTO-NAMED from gazetteer (hypothesis, unreviewed): was 'Discovered lane (51.8327, -2.8128)'.",
"naming_note": "auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (51.8327, -2.8128)'"
}
