Allt Bron Philip
1441.9 m · gain 138.8 m · overall 9.6% · Llanddona · Sir Ynys Mon - Isle of Anglesey
Shape: sustained — 39% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 95 m.
An unlisted find of this survey, on no list we know of. It was discovered by analysing LiDAR terrain data and cross-checked against the OS road network, surface models and map tags — but despite all that, a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If that someone is you, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
≈ Overhead cover (tree canopy or structures) spans 24% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain, not wrong. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈50.6% | 619–621 m | under overhead cover terrain reads 64.7% at 200–202 m across a structure — excluded |
| 3 m (diagnostic) | ≈49.2% | 619–622 m | under overhead cover terrain reads 57.7% at 200–203 m across a structure — excluded |
| 5 m | ≈40.3% | 617–622 m | under overhead cover terrain reads 48.8% at 199–204 m across a structure — excluded |
| 10 m | ≈34.5% | 615–625 m | under overhead cover terrain reads 35.8% at 199–209 m across a structure — excluded |
| 20 m | ≈28.1% | 612–632 m | under overhead cover terrain reads 29.1% at 198–218 m across a structure — excluded |
| 25 m | ≈26.2% | 607–632 m | under overhead cover terrain reads 28.2% at 198–223 m across a structure — excluded |
| 50 m | ≈21.7% | 582–632 m | under overhead cover terrain reads 23.2% at 176–226 m across a structure — excluded |
| 100 m | ≈19.2% | 747–847 m | under overhead cover terrain reads 19.9% at 136–236 m across a structure — excluded |

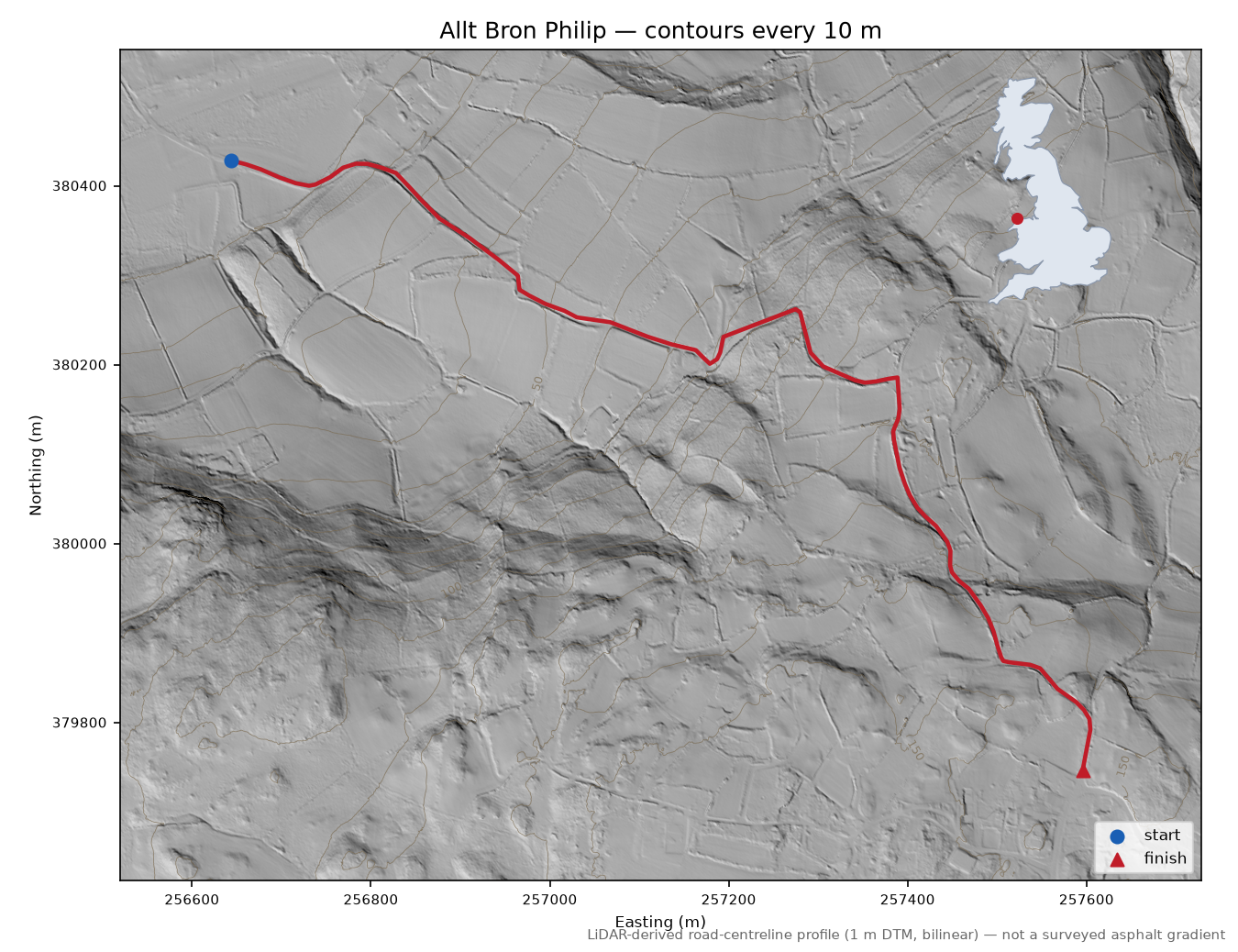

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_19_256379_20211221dtm.tif",
"data/cache/wales/dtm_1m/wg_del_19_257379_20211221dtm.tif",
"data/cache/wales/dtm_1m/wg_del_30_256380_20220320dtm.tif",
"data/cache/wales/dtm_1m/wg_del_30_257380_20220320dtm.tif"
],
"calculated_at": "2026-08-12T09:06:04+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_19_256379_20211221dtm.tif",
"wg_del_19_257379_20211221dtm.tif",
"wg_del_30_256380_20220320dtm.tif",
"wg_del_30_257380_20220320dtm.tif"
],
"elevation_capture_dates": [
"20-03-2022",
"22-12-2021"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 8.9% over 200 m (Terrain 50), gain 23.3 m over 414 m way. EXTENDED by graph walk: +2 segment(s) at base, +0 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. DEDUPE: absorbed 1 overlapping proposal(s): discovered-lane-53-3000-4-1473 ADOPTED (notable slice 2026-08-11): qualified-steep."
}
